Woodhead 1549 - Super-Safeway® Connector, 2 Pole/3 Wire, NEMA 6-15, 250V
Woodhead

1549

Alternate Item Number: 1301410038

UPC: 786788703035

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Super-Safeway® Connector (SKU: 1549) is an industrial-grade connector designed for reliable power distribution in demanding environments. It features a 2 Pole/3 Wire configuration and a NEMA 6-15 rating, suitable for 250V applications. The NEo-TEX® Paracril OZO rubber body offers superior resistance to abrasion, chemical exposure, and temperature extremes (-40°C to 75°C). This connector ensures secure, weather-resistant connections, protecting against moisture and dust ingress. Key features include color-coded, tri-drive terminal screws for easy wiring with various screwdriver types, and floating blade construction for self-alignment and reduced wear. The transparent wiring guide aids in verifying wire placement. Its robust construction, including a captive stainless steel speed screw and a two-piece cord-clamp strain relief, ensures long life and easy assembly. This connector is ideal for industrial settings such as manufacturing plants, construction sites, and outdoor installations where durability and safety are paramount.
  • NEo-TEX® Paracril OZO rubber body for abrasion and chemical resistance
  • 2 Pole/3 Wire configuration with NEMA 6-15 rating
  • 250V rating for industrial power applications
  • Tri-drive terminal screws and floating blade construction for easy wiring and reliable connection
  • Operating temperature range: -40°C to 75°C

Specifications

Amperage Rating
50 A
Brand Name
Woodhead
Environmental Conditions
None
Number Of Poles
2-pole/3-wire
Number of Poles
2
Sub Brand
Super-Safeway
Type
Connector
Voltage Rating
250V
Package Weight (Imperial)
1.300 L
Package Weight (Metric)
0.590 kg

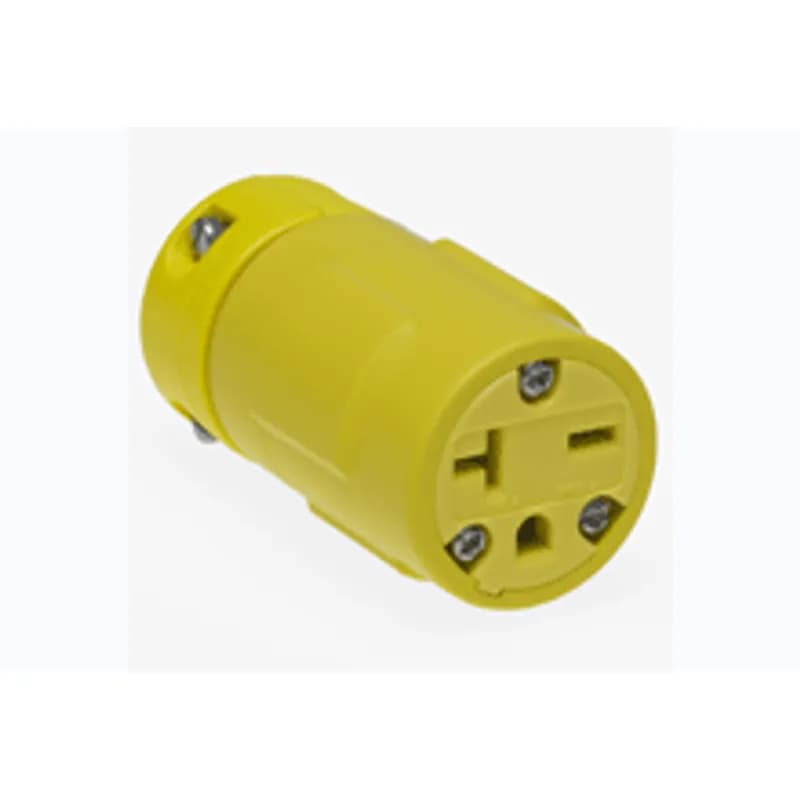

Super-Safeway® Connector, 2 Pole/3 Wire, NEMA 6-20, 250V
