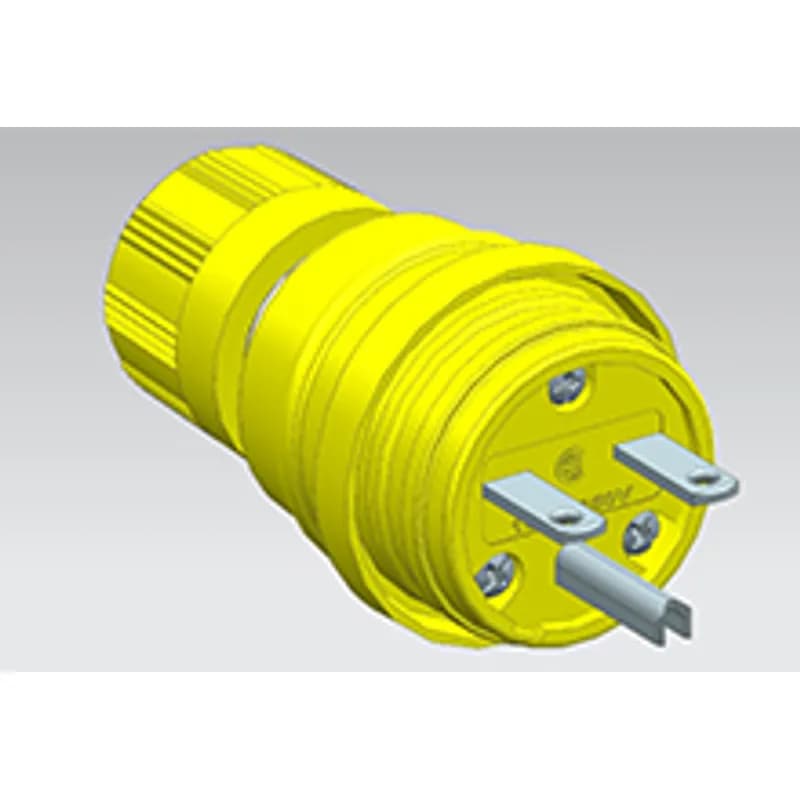

Woodhead 14W49 - Watertite Extreme Plug, 2 Pole/3 Wire, NEMA 6-15, 250V, Cord Grip Body Size F2, Silicone Husk
Woodhead

14W49

Alternate Item Number: 1301460044

UPC: 786788710033

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The **Woodhead Watertite Extreme Plug (SKU: 14W49)** is a 2-pole/3-wire, NEMA 6-15 rated plug designed for wet and harsh industrial environments. Rated at 250V and 15A, this plug features a **F2 cord grip body** (½" size) with nickel-plated brass blades and contacts for corrosion resistance. Its outer housing and grommet are constructed from NEo-TEX® Paracril OZO rubber, providing IP67-rated protection against water, dust, and high-pressure washdowns (up to 1000psi). The silicone husk construction ensures flexibility and resistance to extreme temperatures (-40°C to 75°C continuous). The plug includes stainless steel face screws, a nylon face insert, and a brass wire saddle clamp for secure, strain-relieved connections. Certified for NEMA 1, 3, 4, 4X, 5, 6, 6P, and 12, this plug is ideal for outdoor equipment, food processing, marine applications, and construction sites where reliable, moisture-resistant power connections are critical. The 3-wire design supports live, neutral, and grounding conductors, meeting stringent safety and regulatory standards.
  • NEMA 6-15 rated for 250V, 15A, 2-pole/3-wire configuration
  • IP67-rated protection against water, dust, and high-pressure washdowns (1000psi)
  • F2 cord grip body (½") with nickel-plated brass blades and contacts
  • Operating temperature range: -40°C to 75°C continuous
  • Outer housing and grommet made from NEo-TEX® Paracril OZO rubber for durability
  • Stainless steel face screws, nylon face insert, and brass wire saddle clamp for secure connections

Specifications

Amperage Rating
15 A
Brand Name
Woodhead
Environmental Conditions
IP69K
Number Of Poles
2-pole/3-wire
Number of Poles
2
Sub Brand
Watertite Extreme
Type
Plug
Voltage Rating
250V
Package Weight (Imperial)
1.300 L
Package Weight (Metric)
0.590 kg
