TE Connectivity 354702-E - 5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
TE Connectivity

354702-E

Documents & Media
Full Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 700

*Contact for lower quantities*

Overview

The TE Connectivity 5-Position M12 Circular Connector (SKU: 354702-E) is a board-mount, cable-to-board solution engineered for reliable power, signal, and high-speed data transmission in industrial automation, robotics, and control systems. This A-coded M12 connector features a 5-pole configuration with a compact footprint, ensuring efficient connectivity while maintaining compatibility with standard M12 systems for seamless integration into existing setups. Key specifications include a board mount design optimized for printed circuit board applications, supporting both signal and power transmission. The connector's robust construction delivers consistent performance in harsh environments, with resistance to vibration, temperature fluctuations, and environmental contaminants. The A-code designation ensures interoperability with M12 systems, simplifying field installations and reducing downtime. Ideal for industrial automation, this connector supports high-speed data transmission while maintaining signal integrity in demanding applications. Its durable construction and precision engineering make it suitable for use in control panels, machinery interfaces, and sensor networks where reliable connectivity is critical. The 5-position configuration balances compact size with functional versatility, accommodating power, signal, and data requirements in a single interface. Compatible with TE Connectivity's M12 ecosystem, this connector meets industry standards for durability and performance, ensuring long-term reliability in continuous operation. The board mount design eliminates the need for additional mounting hardware, streamlining PCB integration and reducing assembly time. With a focus on practical engineering, this connector delivers measurable benefits in industrial environments where uptime and signal integrity are paramount.
  • 5-position A-coded M12 circular connector for board-to-cable connections
  • Supports power, signal, and high-speed data transmission
  • Board mount design for direct PCB integration
  • A-code compatibility ensures standard M12 system interoperability
  • Compact 5-pole configuration for efficient industrial connectivity

Specifications

Amperage Rating
4 A
Environmental Conditions
IP67
Mounting
Board Mount
Mounting Type
Board Mount
Number of Conductors
5
Poles
5
Standard
UL 94V-0
Temperature Rating
-25 - 85 °C
Type
Receptacle
5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

244790-E

5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

354098-E

5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, B Code, M12 Connector

254206-E

5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, B Code, M12 Connector
5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, B Code, M12 Connector

454951-E

5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, B Code, M12 Connector
5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

225254-E

5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

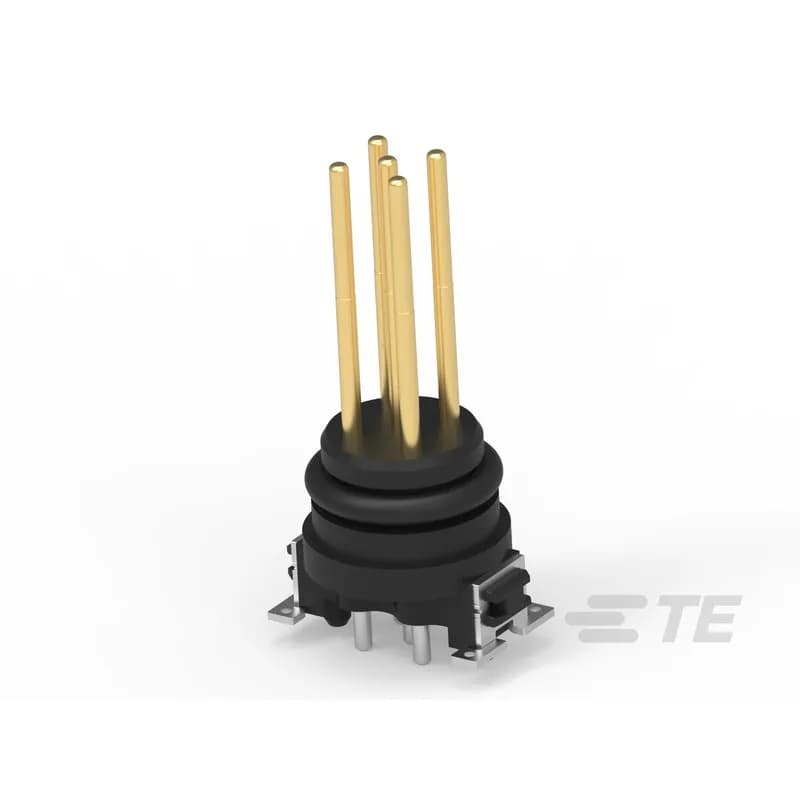

5 Position Circular Connector, Board-to-Board, Sealable, Printed Circuit Board, Power & Signal, Board Mount, A Code, Contacts Preloaded, M12 Connector
