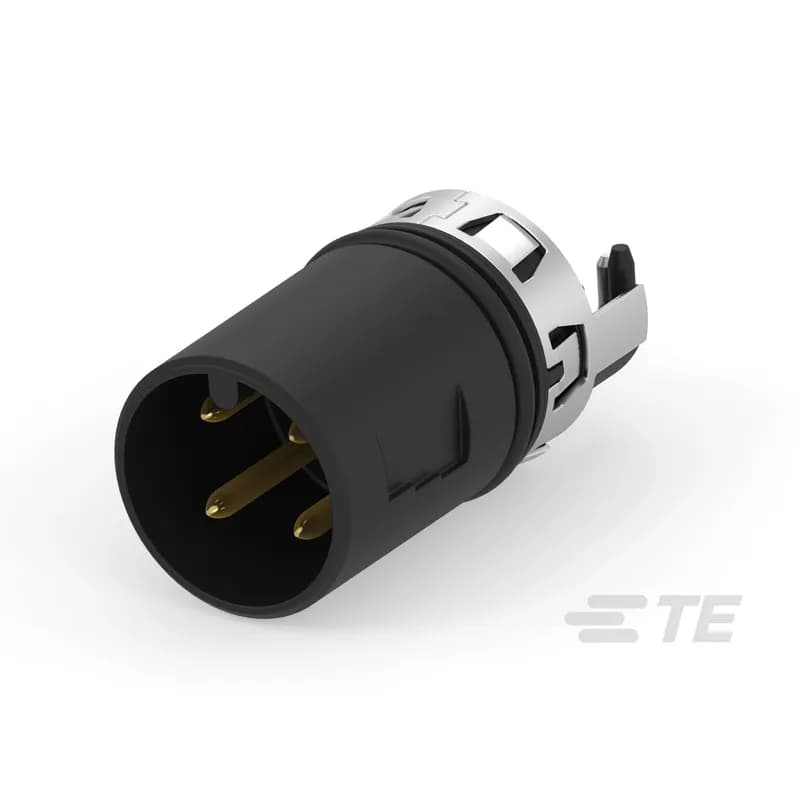

TE Connectivity 234235-E - 4 Position Circular Connector, Board-to-Board, Printed Circuit Board, Power & Signal, Board Mount, A Code, Contacts Preloaded, Plug, Pin, M8 Connector
TE Connectivity

234235-E

Documents & Media
Full Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 1000

*Contact for lower quantities*

Overview

The TE Connectivity 4-Position Circular Connector, SKU 234235-E, is a specialized board-to-board interconnect designed for reliable power and signal transmission in industrial and automation applications. This M8-sized plug connector features a pin configuration and is engineered for direct board mounting, facilitating compact and efficient system designs. The 'A' code designation ensures proper mating with corresponding receptacles, preventing incorrect connections. With preloaded contacts, assembly is streamlined, reducing installation time and minimizing the risk of contact damage or misalignment during the manufacturing process. This connector is suitable for applications requiring both power and signal delivery within a single, robust housing. Its design prioritizes secure mating and consistent electrical performance, crucial for maintaining operational integrity in challenging industrial settings. The TE Connectivity 234235-E is built to withstand the rigors of industrial environments, offering a dependable solution for electronic systems that demand precise and durable connectivity. Engineered for printed circuit board applications, it integrates seamlessly into complex electronic assemblies, supporting the transmission of critical data and power. The M8 form factor contributes to space-saving designs, making it an excellent choice for high-density electronic equipment. Trust TE Connectivity's expertise for your critical interconnect needs.
  • 4-Position Circular Connector for Board-to-Board applications
  • M8 Connector size for compact designs
  • Plug style with Pin contacts
  • Supports both Power & Signal transmission
  • Board Mount design with A Code and Preloaded Contacts

Specifications

Amperage Rating
4 A
Environmental Conditions
IP67
Mounting
Board Mount
Number of Conductors
4
Standard
UL 94V-0
Temperature Rating
-25 - 85 °C
Type
Plug
Voltage Rating
250 VDC
