TE Connectivity 225243-E - 4 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
TE Connectivity

225243-E

Documents & Media
Full Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 250

Multiplier: 250

*Contact for lower quantities*

Overview

The TE Connectivity 225243-E is a 4-position M12 circular connector designed for reliable cable-to-board connections. This sealable connector is ideal for printed circuit board (PCB) mounting, supporting power, signal, and high-speed data transmission in industrial and automation applications. Engineered by TE Connectivity, a leader in connectivity solutions, this M12 connector (SKU: 225243-E) offers robust performance in demanding environments. Its board mount design simplifies integration into electronic systems, ensuring stable and secure connections. The sealable interface provides enhanced protection against dust, moisture, and other environmental contaminants, crucial for maintaining signal integrity and operational reliability. The 4-pole configuration is versatile, accommodating various industrial communication protocols and power requirements. Drawing from TE Connectivity's extensive catalog of circular connectors, such as the Standard Circular Connectors (e.g., 1-1437720-4, 1-1437720-3) and M12 X-Coded connectors (e.g., 1-2315714-1), the 225243-E embodies the same commitment to durability and electrical performance. While specific voltage and current ratings are not detailed in the provided catalog excerpts for this exact SKU, M12 connectors are generally known for their compact size and ability to handle significant electrical loads within their design parameters. The 'A' coding typically signifies standard signal and power applications. This connector is a prime example of TE Connectivity's advanced electrical connector solutions, which deliver unparalleled performance and reliability for critical industrial applications, ensuring consistent electrical connectivity in challenging operational conditions. It meets stringent industry standards for electrical performance and mechanical resilience, making it suitable for manufacturing, automation, telecommunications, and aerospace sectors.
  • 4-Position M12 Circular Connector
  • Cable-to-Board, Board Mount Design
  • Sealable Interface for Harsh Environments
  • Supports Power, Signal & High-Speed Data
  • TE Connectivity Quality and Reliability

Specifications

Amperage Rating
4 A
Mounting
Board Mount
Number of Conductors
4
Temperature Rating
-25 - 85 °C
Type
Plug
5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

354702-E

5 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

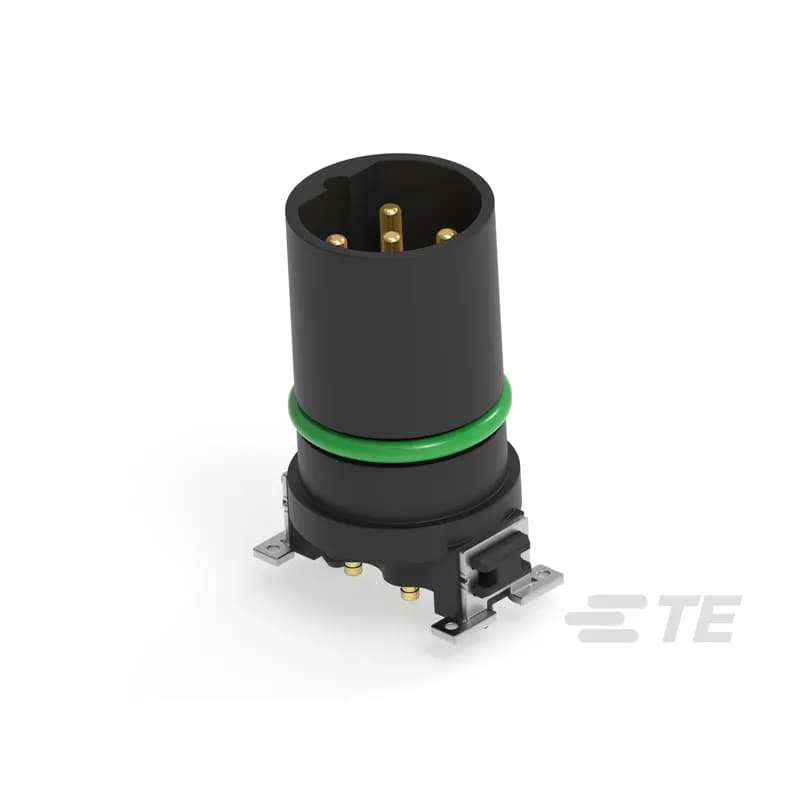

5 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

484118-E

5 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

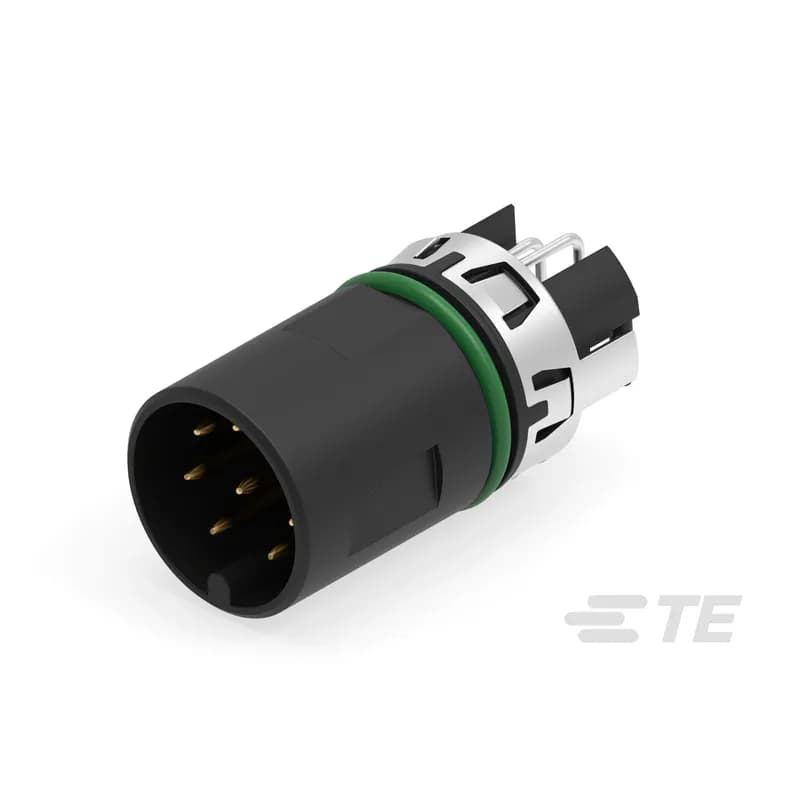

8 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

235045-E

8 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

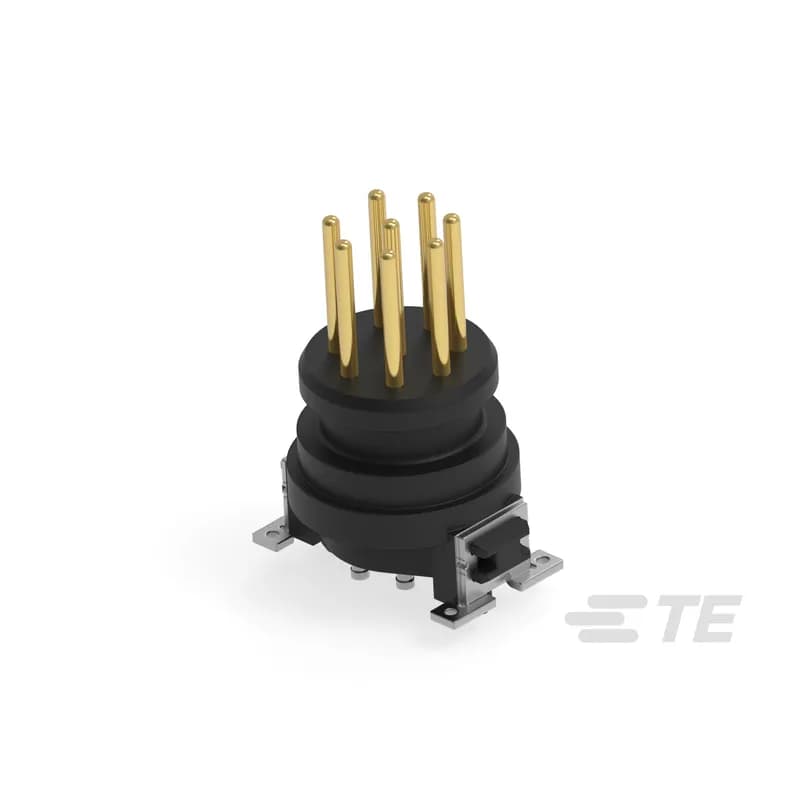

8 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
