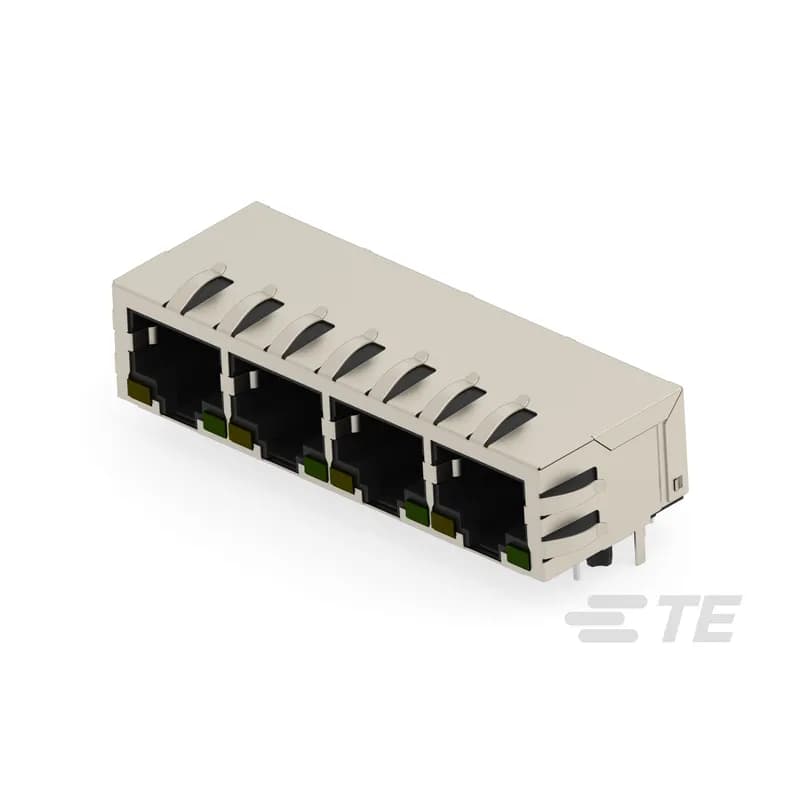

TE Connectivity 203185-E - RJ45 Connector, Multiple Ports, 1 x 4, Jack, Shielded, Standard - Latch Down, 32 Position, Standard Profile, Through Hole - Solder, Right Angle
TE Connectivity

203185-E

Documents & Media
Full Engineering Drawing

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Overview

The TE Connectivity 203185-E is a shielded, right-angle RJ45 connector designed for robust Ethernet connectivity. This 1x4 port configuration features 32 positions and utilizes a through-hole solder termination for secure PCB mounting. Constructed with a stainless steel plate, nickel-plated brass M12 coupling, and polyamide M12 insert, this connector ensures durability. The contacts are made from copper alloy with gold plating for reliable signal transmission, and NBR O-rings provide sealing. The RJ45 connector itself is Cat 5 rated. Shielding is integrated between the MDE45 housing and the RJ45 connector, offering protection against electromagnetic interference (EMI). Operating within a temperature range of -40ºC to +80ºC (-40ºF to +176ºF), this connector is suitable for demanding industrial and commercial applications. Mounting screws are compatible with #8 or M4 sizes. The specific wiring configuration for the MDE45 to RJ45 interface is detailed in the catalog, with pin 1 to 1, 2 to 3, 3 to 2, and 4 to 6 for the 4-conductor D-coded MDE45 input. The RJ45 faceview shows standard Ethernet pinouts. This TE Connectivity connector is ideal for networking equipment, telecommunications infrastructure, and industrial automation systems requiring reliable, shielded data connections.
  • 1x4 Port RJ45 Connector
  • 32 Positions
  • Shielded Design for EMI Protection
  • Right Angle, Through-Hole Solder Termination
  • Cat 5 Rated RJ45 Connector with Gold-Plated Contacts

Specifications

Application
Communications and Information Industry
Color
Black
Contact
32
Mounting
Board Mount
Standard
UL 94V-0
Temperature Rating, Maximum
0 - 70 70
Temperature Rating, Minimum
0 - 70 70
Type
RJ45 Jack

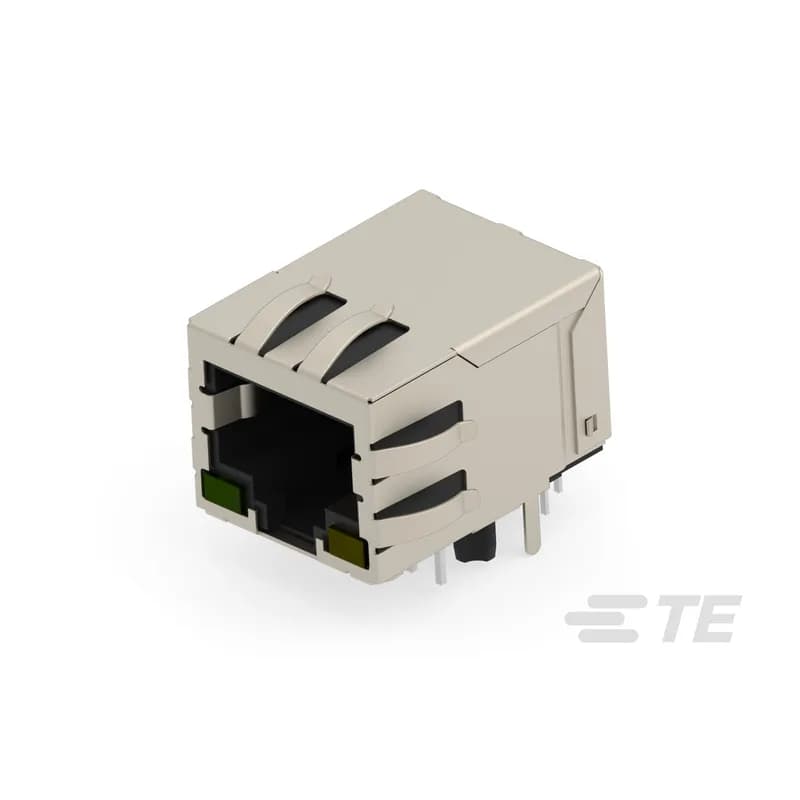

RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Standard - Latch Down, 8 Position, Standard Profile, Through Hole - Solder, Right Angle
