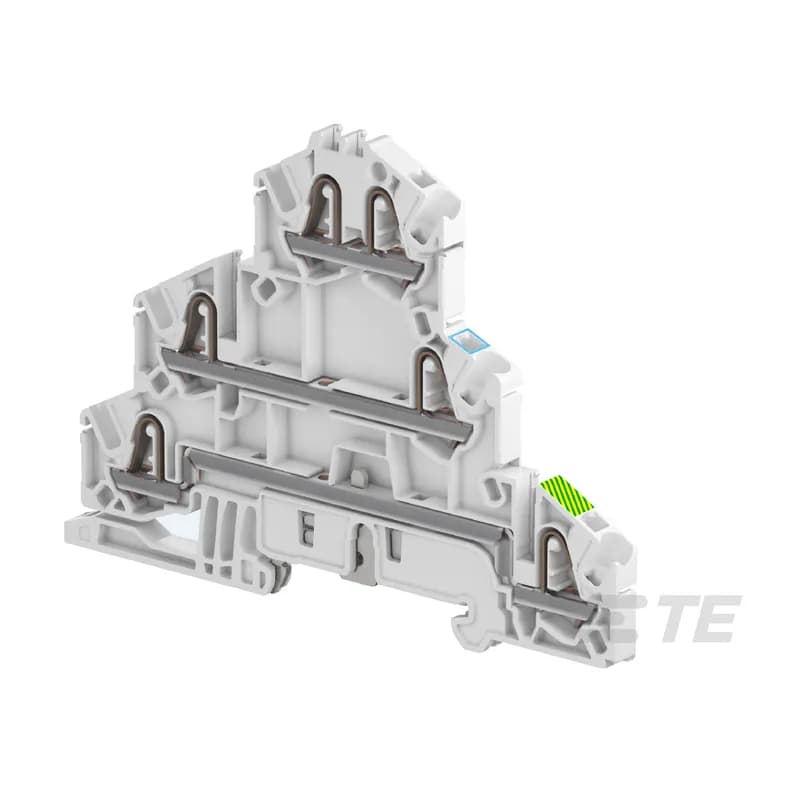

TE Connectivity 1SNK705512R0000 - Combine high performance with compact dimensions: - 500V IEC 300 V UL, - 2 feed through circuits and 1 ground circuit in just 5.2 mm 0.205 in spacing, - 1 jumper channel and a large input and output marker zone on each deck, - designed for easy wiring.
TE Connectivity

1SNK705512R0000

Alternate Item Number: 1SNK705512R0000

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 350

Multiplier: 350

*Contact for lower quantities*

Overview

The TE Connectivity 1SNK705512R0000, part of the ZK6 series, is a compact and highly functional feed-through terminal block designed for efficient and reliable electrical connections in space-constrained industrial applications. This connector offers exceptional performance with a voltage rating of 500V IEC and 300V UL, ensuring suitability for a wide range of power and control systems. Its key design feature is the optimized use of space, packing two feed-through circuits and one dedicated ground circuit into a narrow 5.2 mm (0.205 in) spacing. This density is crucial for control cabinets, automation equipment, and panel building where maximizing terminal capacity is essential. Installation and wiring are simplified through thoughtful engineering. Each deck includes a dedicated jumper channel, allowing for easy bridging of circuits to create complex wiring configurations without additional components. Furthermore, generous input and output marker zones on each deck facilitate clear labeling and identification of circuits, significantly reducing wiring errors and simplifying maintenance. The screw terminal connection type provides a secure and robust connection for various wire gauges, ensuring long-term reliability. Manufactured in Germany (DE), the 1SNK705512R0000 embodies TE Connectivity's commitment to quality and precision engineering. Its robust construction and thoughtful design make it an ideal choice for applications demanding both high electrical performance and minimal footprint, such as in machinery control, power distribution, and signal routing within industrial environments.
  • Compact 5.2 mm (0.205 in) spacing for high-density applications
  • High voltage rating: 500V IEC and 300V UL
  • Configurable with 2 feed-through circuits and 1 ground circuit
  • Integrated jumper channel for simplified wiring
  • Large marker zones on each deck for clear circuit identification
