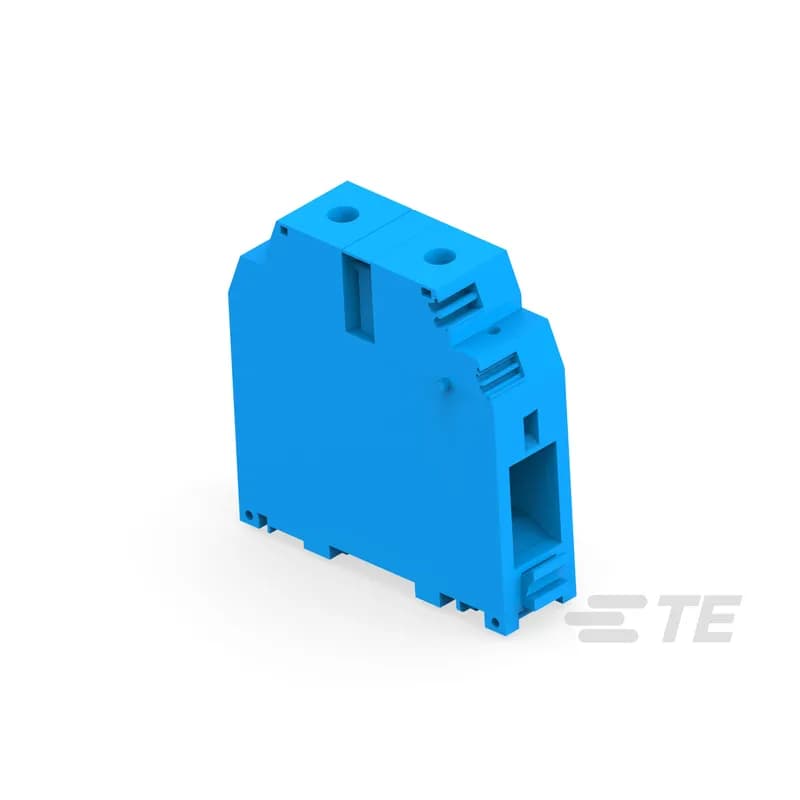

TE Connectivity 1SNK531060R0000 - - Perfectly adapted to solar applications : 1500V DC (1000V AC) IEC and 1000V UL, - Closed terminal block: no end section needed, optimized rigidity, - Ease your voltage monitoring or distribution with the 2 built-in derivations, - Use of jumper bars requires the user to cut-out the partition.
TE Connectivity

1SNK531060R0000

Alternate Item Number: 1SNK531060R0000

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The TE Connectivity 1SNK531060R0000 terminal block is engineered for demanding solar power applications. It features robust electrical ratings, including 1500V DC (1000V AC) according to IEC standards and 1000V according to UL standards, ensuring safe and reliable operation in high-voltage solar systems. Its innovative closed terminal block design eliminates the need for separate end sections, which optimizes rigidity and simplifies installation. This design contributes to a more secure and durable connection. For enhanced system monitoring and distribution flexibility, the 1SNK531060R0000 includes two built-in derivations. These derivations allow for easy access for voltage monitoring or the distribution of power within the solar array. The terminal block is designed to accommodate jumper bars, with the understanding that the user must cut out the internal partition to utilize this feature, enabling custom configurations. Manufactured in Germany (DE), this terminal block (SKU: 1SNK531060R0000) is a dependable component for solar installations requiring high voltage handling and simplified wiring.
  • Rated for 1500V DC (1000V AC) IEC and 1000V UL for solar applications
  • Closed terminal block design eliminates need for end sections
  • Optimized rigidity and simplified installation
  • Two built-in derivations for voltage monitoring and distribution
  • Partition must be cut out for jumper bar use

Specifications

Connection Type
Screw Terminal
Voltage Rating
1500 V DC (1000 V AC) IEC, 1000 V UL
