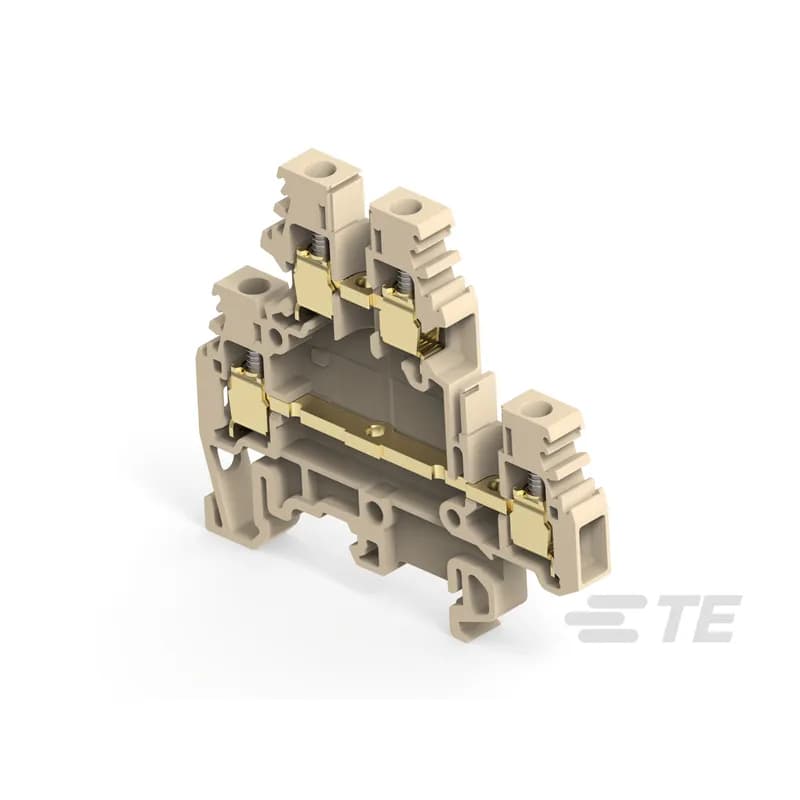

TE Connectivity 1SNA299683R0100 - - Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing, - Closed terminal block: no end section needed, optimized rigidity.
TE Connectivity

1SNA299683R0100

Alternate Item Number: 029968301

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 375

Multiplier: 375

*Contact for lower quantities*

Overview

The TE Connectivity 1SNA299683R0100 triple deck terminal block delivers a highly space-efficient solution for high-density electrical connections in compact installations. This terminal block features three independent circuits housed within a single, ultra-compact 6 mm (0.236 in) spacing—achieving up to three times the connection density of standard terminal blocks in the same panel footprint. Its closed terminal block design eliminates the need for additional end sections, streamlining installation while enhancing structural rigidity and reducing material waste. Manufactured in Germany (DE) under stringent high manufacturing standards, the unit ensures consistent quality, precision, and long-term reliability. With a UNSPSC code of 39121410, it is specifically categorized within electrical components and systems, aligning with industrial-grade applications. Designed for environments where panel space is at a premium, this terminal block is ideal for control panels, automation systems, machinery wiring, and other industrial installations where organized, high-density connections are critical. The triple deck configuration supports efficient wiring management while maintaining robust performance in demanding operational conditions.
  • Triple deck design for 3 independent circuits in 6 mm (0.236 in) spacing
  • Closed terminal block eliminates need for end sections, improving rigidity
  • Manufactured in Germany (DE) under high manufacturing standards
  • UNSPSC code 39121410 for electrical components and systems
  • Optimized for high-density wiring in industrial control panels and automation systems

Specifications

Connection Type
Terminal Block
Mounting Type
DIN Rail
Poles
3
Size
6 mm (0.236 in)
