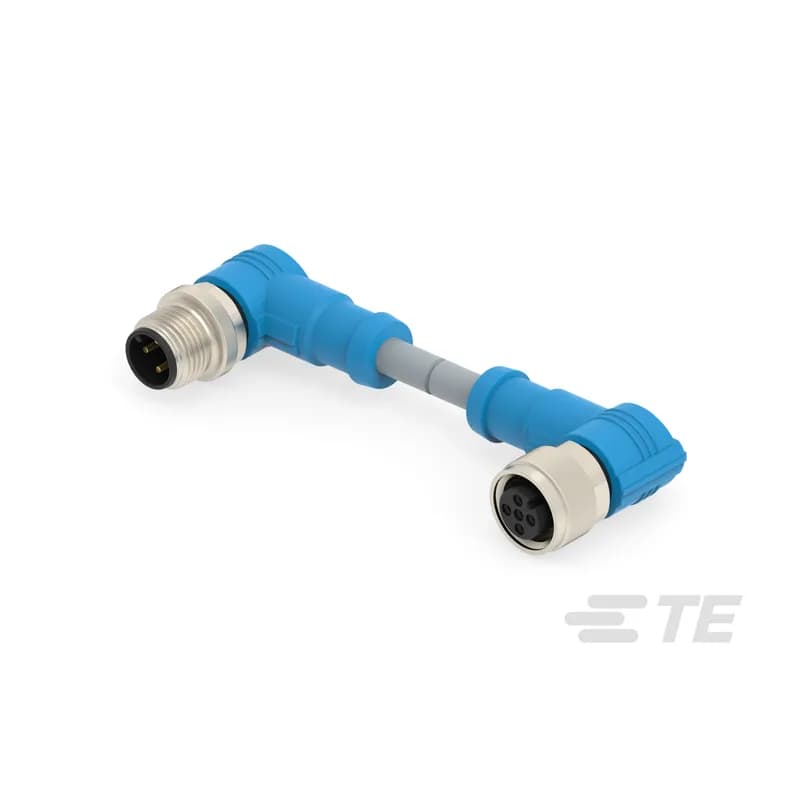

TE Connectivity 1SET313311R0000 - M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, M12 Connector
TE Connectivity

1SET313311R0000

Alternate Item Number: 1SET313311R0000

Documents & Media
BrochureFull Engineering Drawing

Contact for Pricing

Minimum Qty: 16

Multiplier: 16

*Contact for lower quantities*

Overview

TE Connectivity's M8/M12 Cable Assemblies, SKU 1SET313311R0000, provide reliable sensor and actuator connectivity for industrial automation. This assembly features a 4-position configuration with an A keying code, ensuring proper mating and preventing incorrect connections in critical systems. The M12 plug and socket design offers robust environmental protection, making it suitable for demanding factory floor conditions. These assemblies are engineered for applications such as industrial control systems, robotics, and process automation where secure and consistent data transfer is essential. Constructed with durable materials, they are built to withstand vibration and offer long-term operational reliability. The M12 standard is widely adopted in industrial settings for its compact size and dependable performance. This specific assembly facilitates straightforward integration into existing sensor and actuator networks, supporting efficient data acquisition and control. Key specifications include: - Manufacturer: TE Connectivity - SKU: 1SET313311R0000 - Connector Type: M12 Plug to M12 Socket - Positions: 4 - Keying Code: A - Application: Sensor/Actuator Connectivity - Country of Origin: US These cable assemblies are designed to meet the connectivity needs of modern industrial environments, offering a dependable link between sensors, actuators, and control units.
  • 4-Position M12 Plug to M12 Socket
  • A Keying Code for secure mating
  • Designed for Sensor/Actuator connectivity
  • Robust M12 connector for industrial use
  • TE Connectivity quality and reliability

Specifications

Application
Sensor/Actuator
Material
GF Nylon
Number of Positions
4
Number of Positions - Metric
4
Stroke Angle
90
Type
M12-MR-4P-M12-FS-PUR-3.0
Voltage Rating
250 V
Wire Size
22 - 22 Awg
Wire Size - Metric
22 - 22 Awg

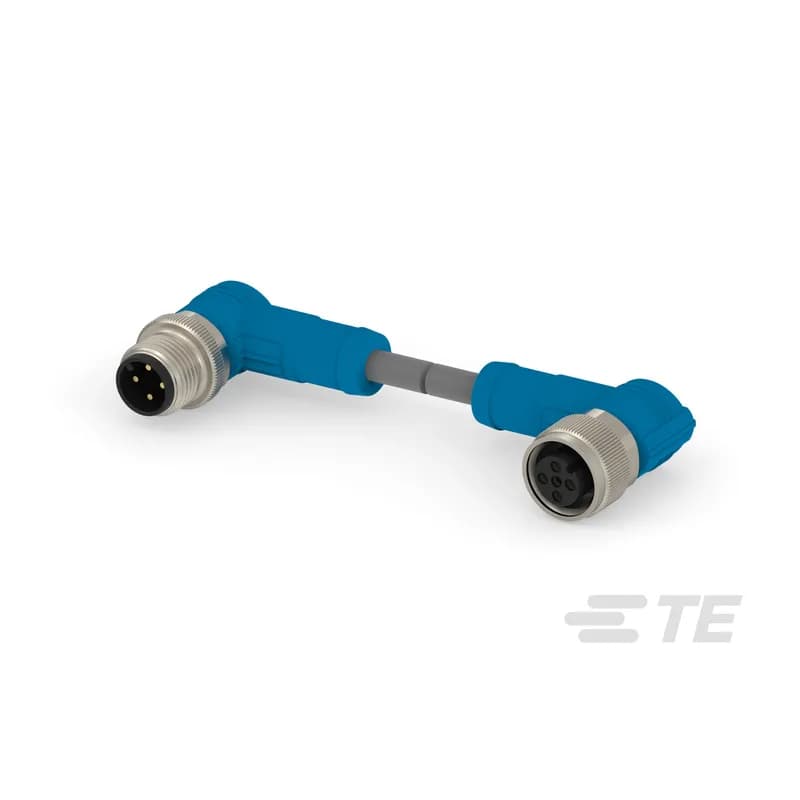

M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, M12 Connector

1SET313347R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, M12 Connector
M8/M12 Cable Assemblies, Industrial Ethernet, PROFINET, 4 Position, D Keying Code, M12 Plug, M12 Pigtail, M12 Connector

1SET315413R0000

M8/M12 Cable Assemblies, Industrial Ethernet, PROFINET, 4 Position, D Keying Code, M12 Plug, M12 Pigtail, M12 Connector

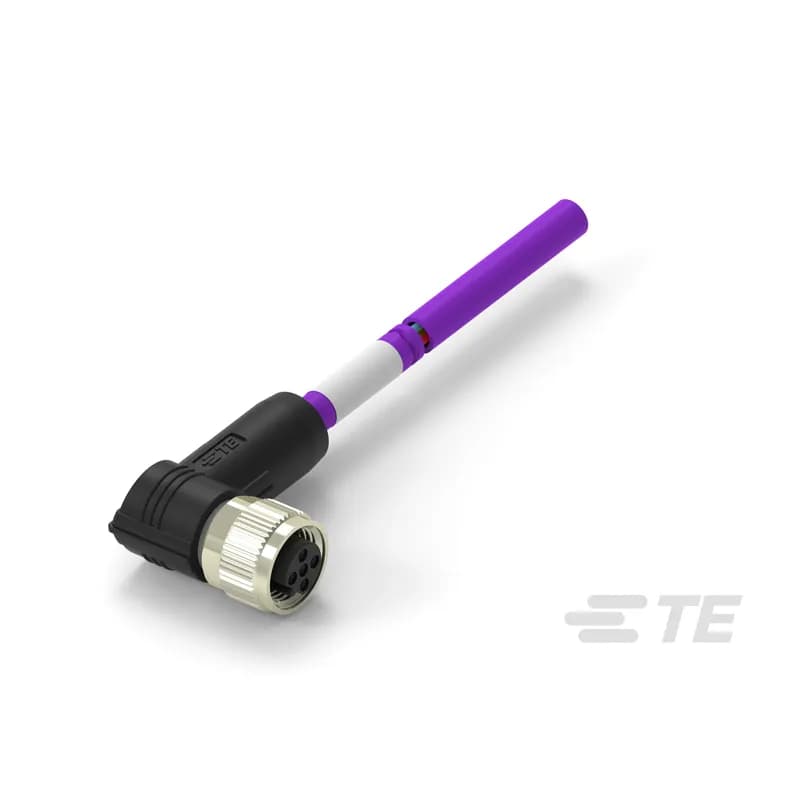

M8/M12 Cable Assemblies, Industrial Fieldbus, PROFIBUS, 2 Position, B Keying Code, M12 Socket, M12 Pigtail, M12 Connector
