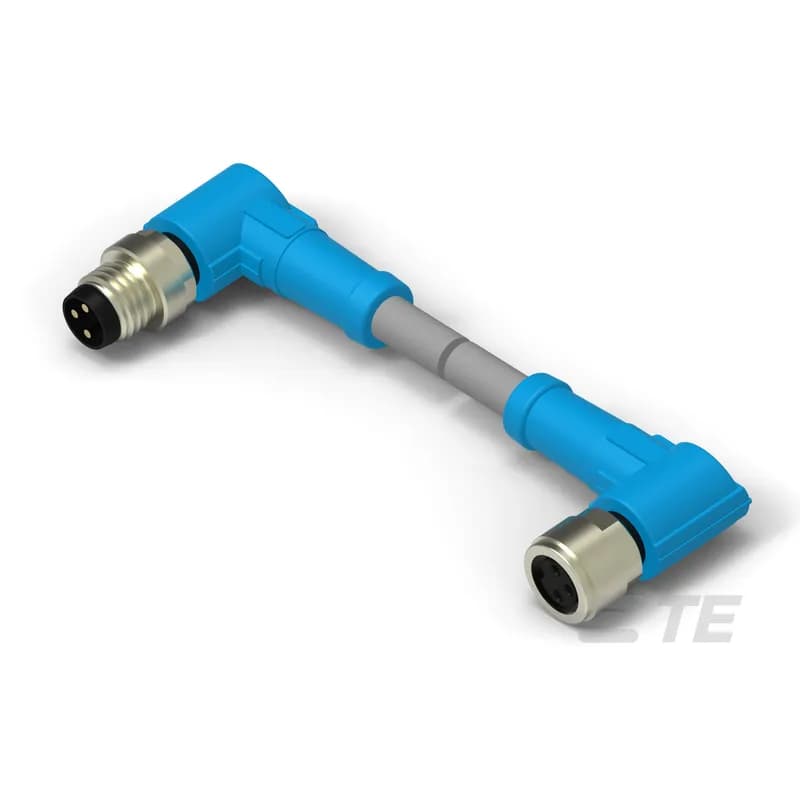

TE Connectivity 1SET312614R0000 - M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector
TE Connectivity

1SET312614R0000

Alternate Item Number: 1SET312614R0000

Documents & Media
BrochureFull Engineering Drawing

Contact for Pricing

Minimum Qty: 16

Multiplier: 16

*Contact for lower quantities*

Overview

The TE Connectivity M8/M12 Cable Assembly (SKU: 1SET312614R0000) is a precision-engineered solution for industrial sensor and actuator applications requiring reliable, space-efficient connectivity. This 3-position cable assembly features M8 plug and socket connectors with A keying to prevent mismating, ensuring secure data and power transmission in automation, robotics, and industrial control systems. The right-angle orientation of the M8 connector on End A optimizes installation in tight or confined spaces, reducing cable bend stress and improving long-term reliability. Rated IP67 for dust and water ingress protection, this assembly withstands harsh industrial environments, including exposure to oils, vibrations, and temperature extremes. Compatible with TE Connectivity’s M8/M12 series, it supports 24V DC applications common in factory automation, material handling, and process control systems. The assembly’s compact M8 size and 3-pole configuration make it ideal for connecting sensors, actuators, and other low-voltage devices where space and reliability are critical. Built to TE Connectivity’s standards, this cable assembly delivers consistent performance in applications demanding durability and precision.
  • 3-position M8/M12 cable assembly for sensor/actuator applications
  • A keying prevents mismating and ensures secure connections
  • Right-angle M8 connector orientation for space-efficient installations
  • IP67 rated for dust and water ingress protection in harsh environments
  • Compatible with TE Connectivity’s M8/M12 series for industrial automation

Specifications

Application
Sensor/Actuator
Material
GF Nylon
Number of Positions
3
Number of Positions - Metric
3
Stroke Angle
90
Type
M8-MR-3P-M8-FR-PUR-3.0-SH
Voltage Rating
60 V
Wire Size
24 - 24 Awg
Wire Size - Metric
24 - 24 Awg

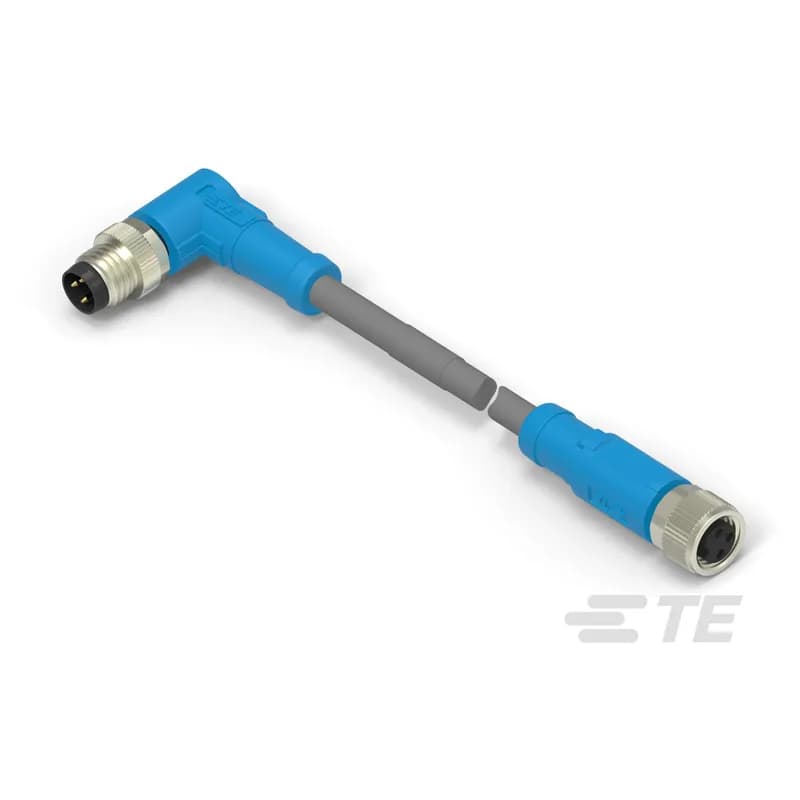

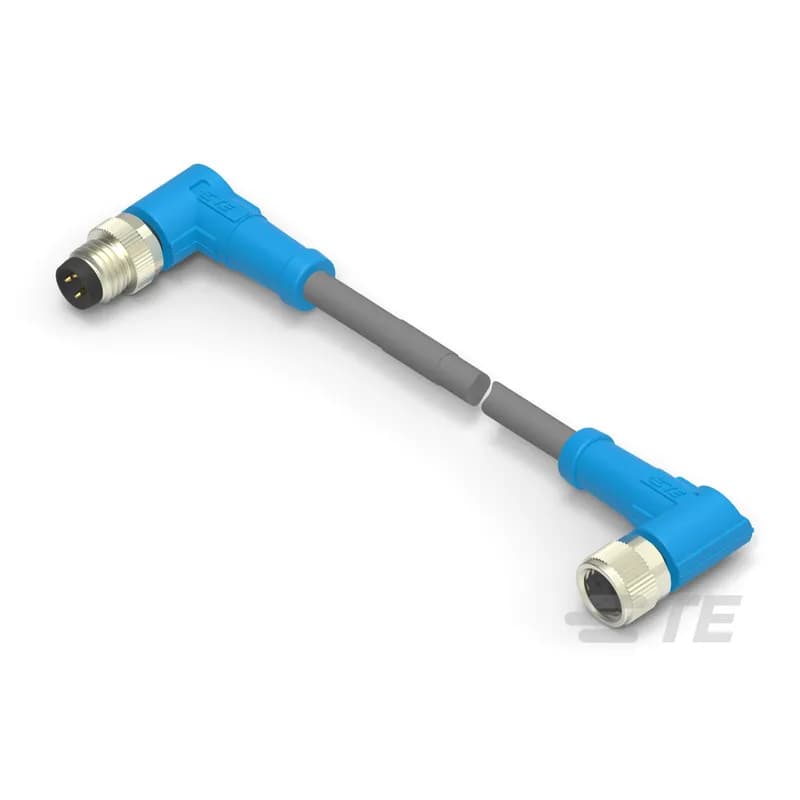

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector

1SET312600R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector

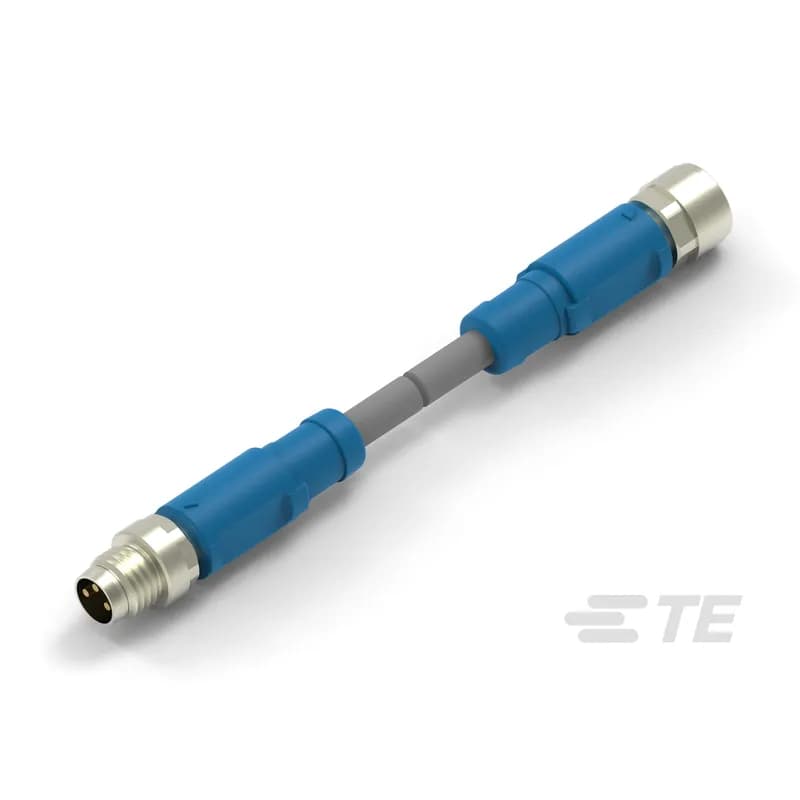

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Straight Connector Orientation (End A), M8 Connector

1SET311574R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Straight Connector Orientation (End A), M8 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector

1SET311700R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector

1SET312615R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Pigtail, Straight Connector Orientation (End A), M8 Connector

1SET311416R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Pigtail, Straight Connector Orientation (End A), M8 Connector

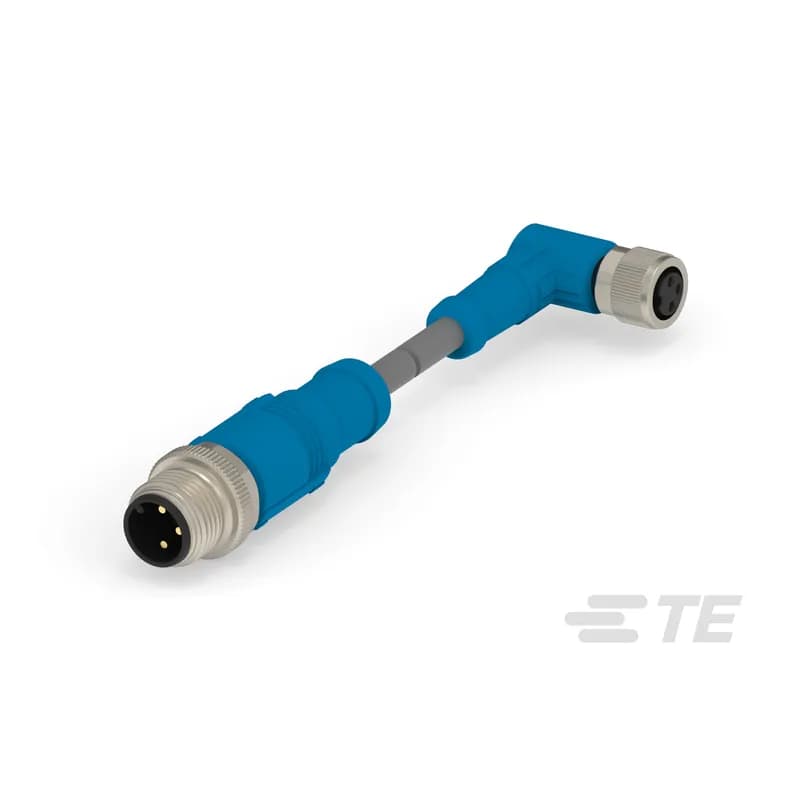

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Socket, M12 Plug, M8 to M12, M8 Connector
