TE Connectivity 1SET312600R0000 - M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector
TE Connectivity

1SET312600R0000

Alternate Item Number: 1SET312600R0000

Documents & Media
BrochureFull Engineering Drawing

Contact for Pricing

Minimum Qty: 16

Multiplier: 16

*Contact for lower quantities*

Overview

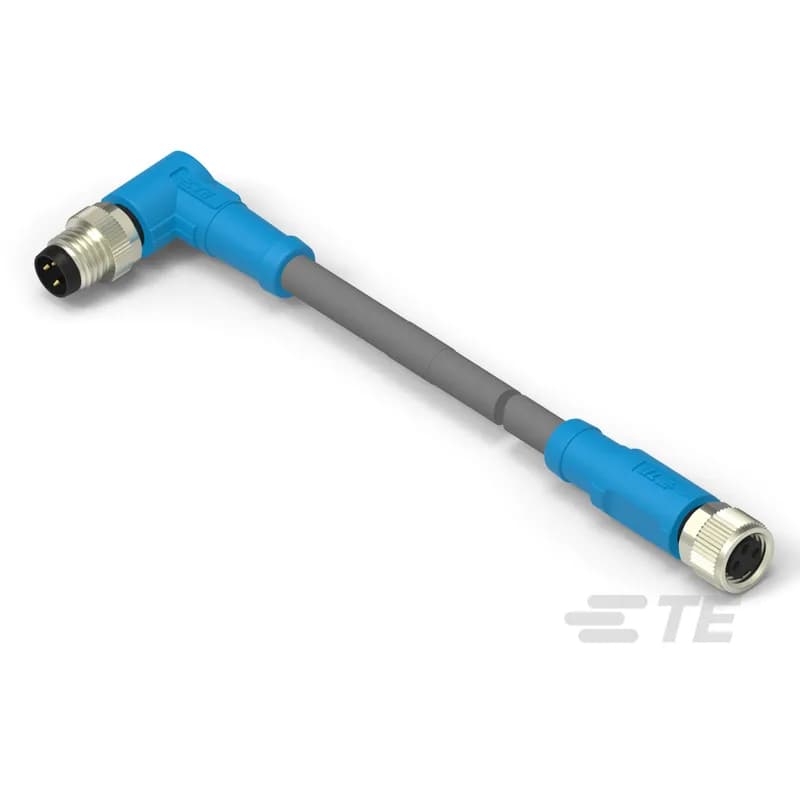

The TE Connectivity M8/M12 Cable Assembly, SKU 1SET312600R0000, offers a reliable sensor/actuator connection solution. This assembly features a 3-position configuration with A-keying, ensuring correct polarity for industrial automation and control systems. It includes an M8 right-angle plug on one end and an M8 socket on the other, facilitating compact installations in space-constrained environments. The M8 connectors are designed for robust performance in industrial settings, providing secure mating cycles. Manufactured by TE Connectivity, a trusted name in connectivity, this cable assembly is built to withstand typical industrial conditions. Its right-angle orientation simplifies routing and connection in panels or enclosures. This product is suitable for applications requiring dependable data transfer between sensors, actuators, and control units. The A-keying code is standard for many M8 sensor/actuator connections, ensuring compatibility with corresponding devices. The UNSPSC code for this product is 31251501. Originating from the US, this cable assembly adheres to established manufacturing standards.
  • 3-Position M8/M12 Cable Assembly
  • A-Keying Code for Sensor/Actuator
  • M8 Right-Angle Plug and Socket Connectors
  • Designed for Industrial Automation
  • TE Connectivity Quality and Reliability

Specifications

Application
Sensor/Actuator
Connection Type
Sensor/Actuator
Material
GF Nylon
Material
TE Connectivity's proven quality and reliability
Material
TE Connectivity M8/M12 Cable Assembly
Mounting Type
Right Angle Connector Orientation (End A)
Mounting Type
Right Angle Connector Orientation
Mounting Type
Right Angle
Number of Positions
3
Number of Positions - Metric
3
Poles
3
Series
M8/M12 Cable Assemblies
Series
M8/M12 Cable Assembly
Size
M8
Stroke Angle
90
Type
M8-MR-3P-M8-FS-PUR-3.0-SH
Voltage Rating
60 V
Wire Size
24 - 24 Awg
Wire Size - Metric
24 - 24 Awg

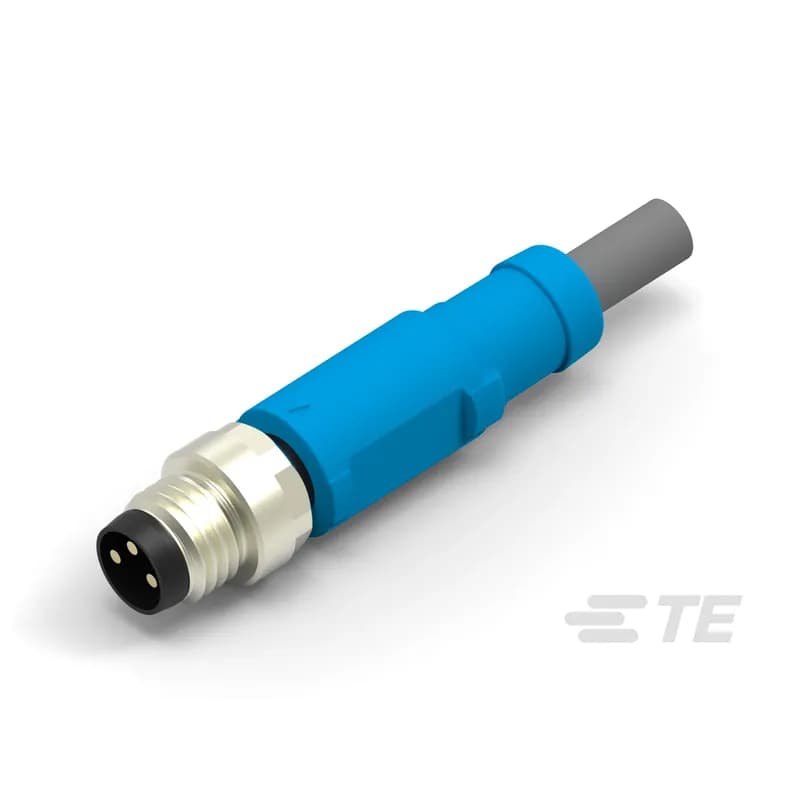

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Pigtail, Straight Connector Orientation (End A), M8 Connector

1SET311416R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Plug, M8 Pigtail, Straight Connector Orientation (End A), M8 Connector

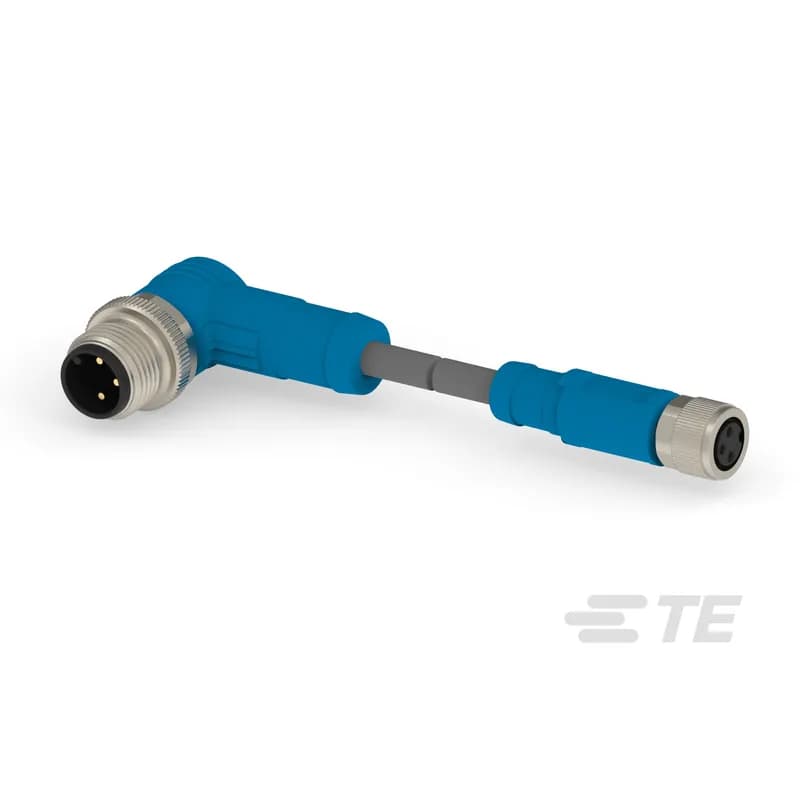

M8/M12 Cable Assemblies, Sensor/Actuator, 3 Position, A Keying Code, M8 Socket, M12 Plug, M8 to M12, M8 Connector
