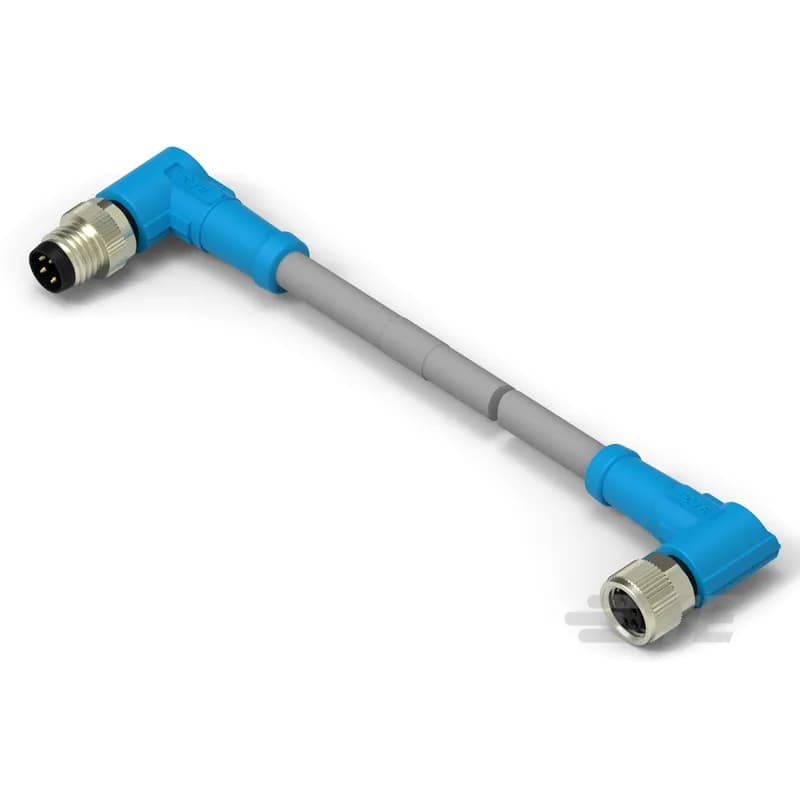

TE Connectivity 1SET311707R0000 - M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M8 Plug, M8 Socket, M8, Right Angle Connector Orientation (End A), M8 Connector
TE Connectivity

1SET311707R0000

Alternate Item Number: 1SET311707R0000

Documents & Media
BrochureFull Engineering Drawing

Contact for Pricing

Minimum Qty: 16

Multiplier: 16

*Contact for lower quantities*

Overview

The TE Connectivity M8/M12 Cable Assembly (SKU: 1SET311707R0000) provides reliable sensor and actuator connectivity for industrial automation. This assembly features a 4-position configuration with A keying, ensuring correct mating and preventing misconnections in critical systems. It includes an M8 plug and an M8 socket, both with a right-angle connector orientation at End A. This design is beneficial for installations with limited space, allowing for efficient routing and connection management. The cable assembly is built to withstand industrial conditions, supporting consistent signal integrity for control systems, robotics, and automation equipment. Its construction prioritizes dependable performance and ease of integration into existing infrastructure. The M8 and M12 standards are widely adopted in industrial settings for their durability and secure locking mechanisms, making this assembly a practical choice for demanding applications. Trust TE Connectivity for robust and precise connectivity solutions that enhance operational efficiency and system reliability.
  • 4-Position Configuration
  • A Keying Code for secure mating
  • M8 Plug and M8 Socket connectors
  • Right Angle Connector Orientation (End A)
  • Designed for Sensor/Actuator applications

Specifications

Application
Sensor/Actuator
Connection Type
Sensor/Actuator
Material
GF Nylon
Mounting Type
Cable Assembly
Number of Positions
4
Number of Positions - Metric
4
Poles
4
Series
M8/M12 Cable Assemblies
Size
M8/M12
Stroke Angle
90
Type
M8-MR-4P-M8-FR-PUR-5.0
Voltage Rating
30 V
Wire Size
24 - 24 Awg
Wire Size - Metric
24 - 24 Awg
