TE Connectivity 1-1827873-0 - PCB Mount Header, Horizontal, Wire-to-Board, 20 Position, 2 mm [.079 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 1000 Series
TE Connectivity

1-1827873-0

Documents & Media
Full Engineering Drawing

Contact for Pricing

Minimum Qty: 20

Multiplier: 800

*Contact for lower quantities*

Overview

The TE Connectivity Dynamic 1000 Series 1-1827873-0 PCB Mount Header is a 20-position, horizontal, wire-to-board connector designed for through-hole solder mounting. With a 2mm [.079 in] centerline spacing, this fully shrouded connector ensures precise alignment and robust mechanical stability in high-density PCB layouts. Gold-plated contacts provide superior electrical conductivity and corrosion resistance, ideal for applications requiring consistent signal integrity over extended service life. Engineered for industrial, telecommunications, and automotive electronics, this connector supports dynamic load conditions with a rated current of up to 3A per contact. The through-hole design enables secure solder attachment, enhancing vibration resistance and long-term reliability. Its compact footprint optimizes board space while maintaining compatibility with standard 2mm pitch headers. The fully shrouded housing reduces the risk of misalignment during mating and provides additional protection against mechanical stress and contamination. Compatible with TE Connectivity’s Dynamic 1000 Series ecosystem, this connector integrates seamlessly into existing designs, offering a dependable interconnect solution for mission-critical systems.
  • 20-position, horizontal wire-to-board connector
  • 2mm [.079 in] centerline spacing for high-density PCB layouts
  • Fully shrouded design for alignment and protection
  • Gold-plated contacts for superior conductivity and corrosion resistance
  • Through-hole solder mounting for mechanical stability and vibration resistance

Specifications

Color
Gold
Connection Type
Wire-to-Board
Mounting Type
Through Hole - Solder
Poles
20
Series
Dynamic 1000 Series
PCB Mount Header, Vertical, Wire-to-Board, 20 Position, 2.5 mm [.099 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 1000 Series

1-1827875-0

PCB Mount Header, Vertical, Wire-to-Board, 20 Position, 2.5 mm [.099 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 1000 Series

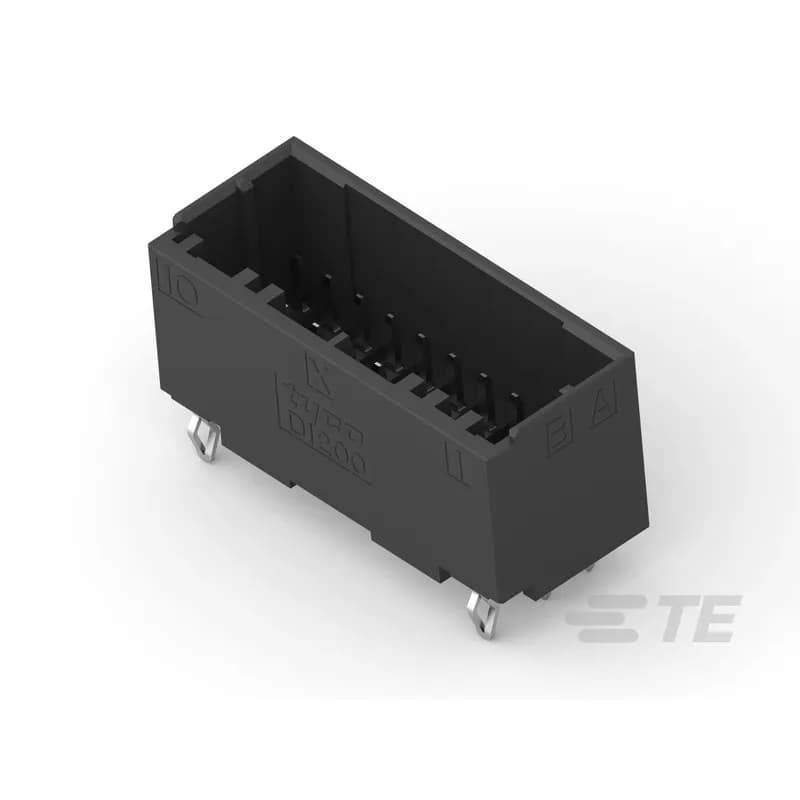

PCB Mount Header, Vertical, Wire-to-Board, 20 Position, 2.5 mm [.099 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Dynamic 1000 Series

1-2348454-0

PCB Mount Header, Vertical, Wire-to-Board, 20 Position, 2.5 mm [.099 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Dynamic 1000 Series
Connector Assembly, Receptacle, Wire-to-Board, 20 Position, .1 in [2.54 mm] Centerline, Insulation Displacement (IDC), 2 Row, Black, Wire & Cable

102398-8

Connector Assembly, Receptacle, Wire-to-Board, 20 Position, .1 in [2.54 mm] Centerline, Insulation Displacement (IDC), 2 Row, Black, Wire & Cable

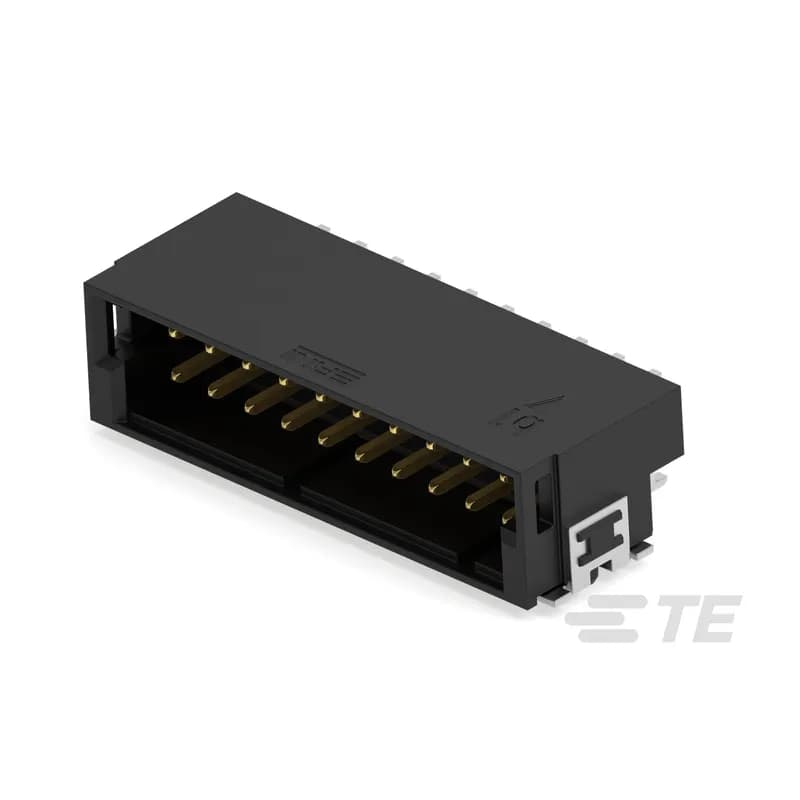

PCB Mount Header, Right Angle, Board-to-Board, 20 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MaxiBridge
