SolaHD STFV300-24L - STFV Series Active Tracking Filter With Surge Protection, CSA Certified, CSA C22.2 No.8, UL Recognized Component, UL1283, Amps 30.0, Min Wire Size AWG 18, Screw Size #8, Fuse/Circuit Breaker Ampacity: Suggested 30A, Max. 37.5, Single Phase, (240Vac)
SolaHD

STFV300-24L

UPC: 783472700417

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The SolaHD STFV300-24L is a single-phase active tracking filter with integrated surge protection, designed for 240VAC industrial and commercial applications. Rated at 30A continuous current, it features a suggested fuse or circuit breaker ampacity of 30A, with a maximum allowable rating of 37.5A. The unit supports a minimum wire size of AWG 18 and utilizes #8 screw terminals for secure, reliable connections. Certified to CSA C22.2 No.8 and recognized under UL1283, the STFV300-24L meets rigorous safety standards for regulated environments, ensuring compliance in motor control systems, HVAC installations, and power distribution networks. Its active tracking technology dynamically diverts fault currents, while the built-in surge protection safeguards sensitive electronics from transient voltage spikes, including those caused by switching transients or external disturbances. The compact, panel-mountable design with #8 screw terminals facilitates straightforward installation in existing electrical panels, minimizing downtime during deployment. Engineered for critical infrastructure applications, the STFV300-24L provides consistent power conditioning with low maintenance requirements, helping to extend the operational lifespan of connected equipment. The UL-recognized component status further supports its suitability for use in industrial control panels and other high-reliability applications where safety and performance are paramount.
  • 30A current rating with 240VAC operation
  • Active tracking technology for intelligent fault current diversion
  • Built-in surge protection against transient voltage spikes
  • CSA C22.2 No.8 and UL1283 certified for safety compliance
  • Screw terminal #8 connection with AWG 18 minimum wire size
  • Suggested 30A fuse/circuit breaker ampacity (max 37.5A)
  • Compact design for easy installation in existing panels

Specifications

Connection Type
Screw Terminal
Current Rating
30 A
Frequency
Not explicitly stated
Material
Not explicitly stated
Mounting Type
Not explicitly stated
Poles
Single Phase
Series
STFV
Voltage Rating
240 Vac
Package Dimensions (L x W x H)
14 IN x 8 IN x 2.5 IN
Package Dimensions (L x W x H)
35.56 cm x 20.32 cm x 6.35 cm
Package Weight (Imperial)
7.000 L
Package Weight (Metric)
3.175 kg
STFV Plus Series Actibe Tracking with Surge Protection, Amps:15.0, Min Wire Size: 14 AWG, Single Phase, 240 Vac, Screw Size: #8, Fuse/Circuit Breaker Ampacity: Suggested - 15 A, Maximum 18.75 A

STFV150-24L

STFV Plus Series Actibe Tracking with Surge Protection, Amps:15.0, Min Wire Size: 14 AWG, Single Phase, 240 Vac, Screw Size: #8, Fuse/Circuit Breaker Ampacity: Suggested - 15 A, Maximum 18.75 A
STFV Plus Series Actibe Tracking with Surge Protection, Amps:15.0, Min Wire Size: 14 AWG, Single Phase, 120 Vac, Screw Size: #8, Fuse/Circuit Breaker Ampacity: Suggested - 15 A, Maximum 18.75 A

STFV150-10N

STFV Plus Series Actibe Tracking with Surge Protection, Amps:15.0, Min Wire Size: 14 AWG, Single Phase, 120 Vac, Screw Size: #8, Fuse/Circuit Breaker Ampacity: Suggested - 15 A, Maximum 18.75 A
STFV Series Active Tracking Filter With Surge Protection, CSA Certified, CSA C22.2 No.8, UL Recognized Component, UL1283, Amps 7.5, Min Wire Size AWG 18, Screw Size #6, Fuse/Circuit Breaker Ampacity: Suggested 7.5A, Max. 9.375A, Single Phase, (240Vac)

STFV075-24L

STFV Series Active Tracking Filter With Surge Protection, CSA Certified, CSA C22.2 No.8, UL Recognized Component, UL1283, Amps 7.5, Min Wire Size AWG 18, Screw Size #6, Fuse/Circuit Breaker Ampacity: Suggested 7.5A, Max. 9.375A, Single Phase, (240Vac)
STFV Series Active Tracking Filter With Surge Protection, CSA Certified, CSA C22.2 No.8, UL Recognized Component, UL1283, Amps 5.0, Min Wire Size AWG 22, Screw Size #6, Fuse/Circuit Breaker Ampacity: Suggested 5.0A, Max. 6.25A, Single Phase, (240Vac)

STFV050-24L

STFV Series Active Tracking Filter With Surge Protection, CSA Certified, CSA C22.2 No.8, UL Recognized Component, UL1283, Amps 5.0, Min Wire Size AWG 22, Screw Size #6, Fuse/Circuit Breaker Ampacity: Suggested 5.0A, Max. 6.25A, Single Phase, (240Vac)

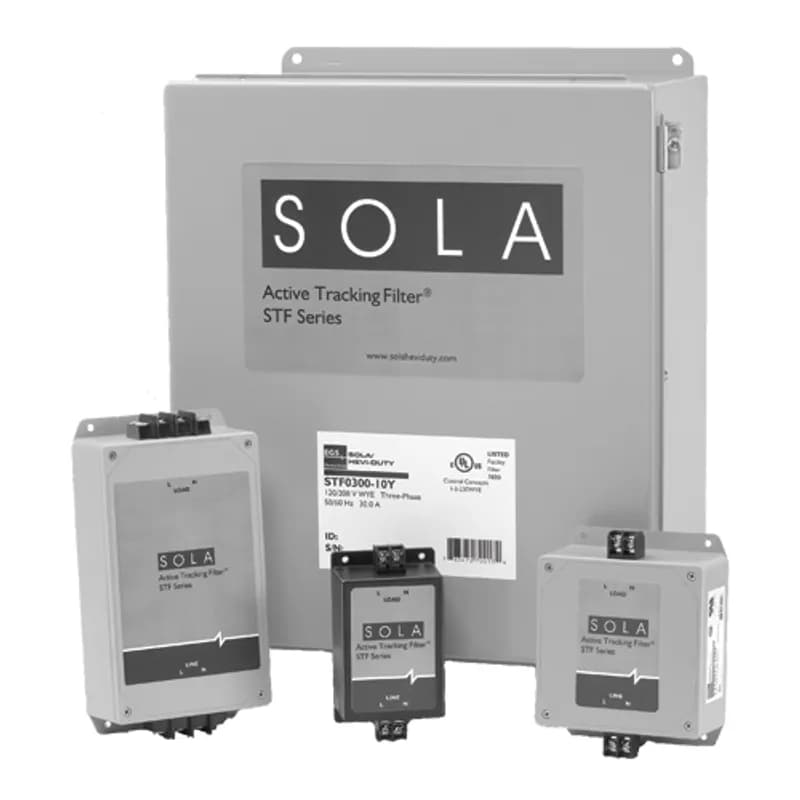

STF Series Active Tracking Filter, cULus Listed, UL1283, CSA C22.2 No. 8, Amps 30.0, Minimum Wire Size AWG 10, Fuse/Circuit Breaker Ampacity: Suggested 30A, Maximum 37.5A, Three Phase (240 V Delta)

STF0300-24D

STF Series Active Tracking Filter, cULus Listed, UL1283, CSA C22.2 No. 8, Amps 30.0, Minimum Wire Size AWG 10, Fuse/Circuit Breaker Ampacity: Suggested 30A, Maximum 37.5A, Three Phase (240 V Delta)
STFV Plus Series Actibe Tracking with Surge Protection, Amps: 7.5, Min Wire Size: 18 AWG, Single Phase, 120 Vac, Screw Size: #6, Fuse/Circuit Breaker Ampacity: Suggested - 7.5 A, Maximum 6.25 A

STFV075-10N

STFV Plus Series Actibe Tracking with Surge Protection, Amps: 7.5, Min Wire Size: 18 AWG, Single Phase, 120 Vac, Screw Size: #6, Fuse/Circuit Breaker Ampacity: Suggested - 7.5 A, Maximum 6.25 A
STFV Plus Series Actibe Tracking with Surge Protection, Amps: 5.0, Min Wire Size: 22 AWG, Single Phase, 120 Vac, Screw Size: #6, Fuse/Circuit Breaker Ampacity: Suggested - 5 A, Maximum 6.25 A

STFV050-10N

STFV Plus Series Actibe Tracking with Surge Protection, Amps: 5.0, Min Wire Size: 22 AWG, Single Phase, 120 Vac, Screw Size: #6, Fuse/Circuit Breaker Ampacity: Suggested - 5 A, Maximum 6.25 A
Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:3000VA, Input Voltage: 120/208/240/480, Output Voltage: 120/208/240

63-23-230-8

Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:3000VA, Input Voltage: 120/208/240/480, Output Voltage: 120/208/240
STF Series Active Tracking Filter, cULus Listed, UL1283, CSA C22.2 No. 8, Amps 15.0, Minimum Wire Size AWG 14, Fuse/Circuit Breaker Ampacity: Suggested 15A, Maximum 18.75A, Three Phase (277/480 V wye)

STF0150-27Y

STF Series Active Tracking Filter, cULus Listed, UL1283, CSA C22.2 No. 8, Amps 15.0, Minimum Wire Size AWG 14, Fuse/Circuit Breaker Ampacity: Suggested 15A, Maximum 18.75A, Three Phase (277/480 V wye)
Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:7500VA, Input Voltage: 208/240/480, Output Voltage: 120/208/240

63-28-275-8

Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:7500VA, Input Voltage: 208/240/480, Output Voltage: 120/208/240
Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:500VA, Input Voltage: 600, Output Voltage: 120/208/240

63-31-150-8

Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:500VA, Input Voltage: 600, Output Voltage: 120/208/240

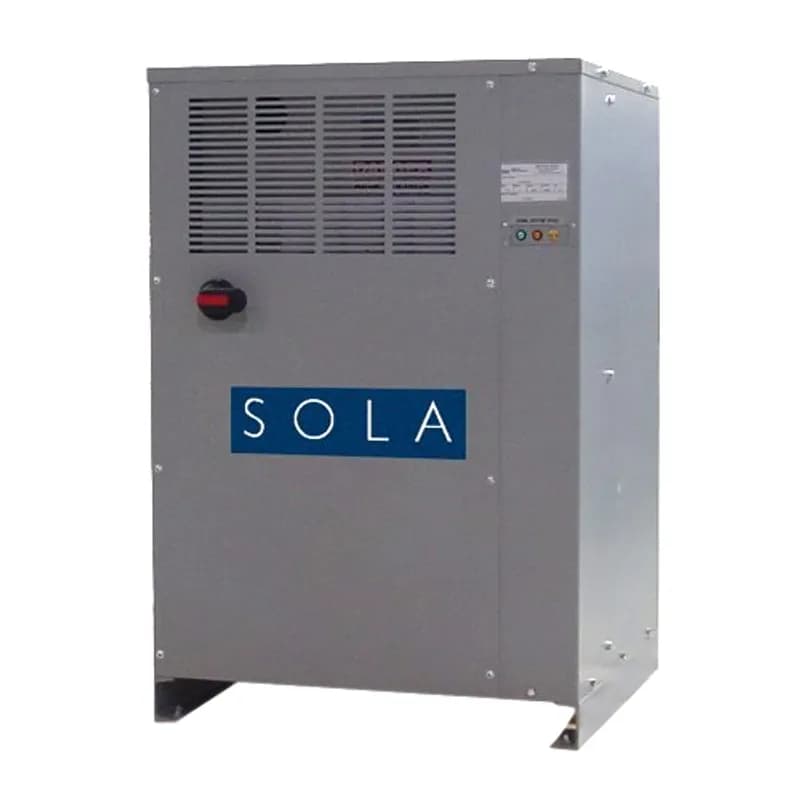

Solatron Plus Series Three Phase Power Conditioners, Standard: UL (Canada and US), UL 1012, CSA C22.2 No. 125, Output: 30kVA, Vac Input 208, Vac Output 208Y/120, 60 Hz

63TAA330

Solatron Plus Series Three Phase Power Conditioners, Standard: UL (Canada and US), UL 1012, CSA C22.2 No. 125, Output: 30kVA, Vac Input 208, Vac Output 208Y/120, 60 Hz

Frequently Asked Questions

What is the STFV Plus Series product?

The STFV Plus Series combines SolaHD Tracking filtration for low-energy noise and surge protection for high-energy transients.

What is the operating temperature range?

The operating temperature range is from -40 °C to +60 °C (-40 °F to +140 °F) at full load.

What certifications does the product have?

It is Certified to CSA C22.2 No. 8, UL Recognized Component to UL 1283, and RoHS Compliant.

What is the input voltage range for 240 Vac models?

For 240 Vac models, the input voltage range is 0-275 Vrms.

What line frequency does the device support?

It supports a line frequency of 50/60 Hz.

What is the response time of the filter?

The response time of the filter is less than 5 nanoseconds.

What is its noise reduction capability?

It attenuates high-frequency noise to a maximum of -90 dB, occurring in the range of 100 kHz to 50 MHz.

What is the peak surge current capability?

The peak surge current capability is 13,000 Amps per phase (8x20 μs), with 6,500 Amps for L-N, L-G, and N-G.

What is the transient reduction for IEEE C62.41 ringwaves?

It reduces typical Category A Ringwave to less than 10 Volts peak and Category B Ringwave to less than 50 Volts peak.

What is the suggested minimum wire size for STFV300-24L?

The suggested minimum wire size for the STFV300-24L is 10 AWG.
