Contact for Pricing
Overview
- 24 V output at 2.4 A
- Selectable input voltage 100/120/220/230/240 Vac
- Frequency range 47‑63 Hz
- Silver Line single‑output design
- Built‑in over‑current and short‑circuit protection
Specifications
Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
Brand Name | SolaHD |
Enclosure | NEMA 4/12 |
Frequency Rating | 50/60 HZ |
Height | 17 IN |
Input Voltage | 240/480, 230/460, 220/440 Volt Primary |
Insulation | UL Class 180 DEG C Insulation System |
Length | 9 IN |
Output Voltage | 120/115/110 Volt Secondary |
Special Features | UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
Temperature Rating | 80 DEG Temperature Rise under full load |
Type | HSZ Series Industrial Control Transformers |
Voltage Rating | 100, 120, 220, 230, 240 Selectable |
Wattage | 7.5 KVA |
Width | 14 IN |
Package Dimensions (L x W x H) | 6 IN x 7 IN x 5 IN |
Package Dimensions (L x W x H) | 15.24 cm x 17.78 cm x 12.7 cm |
Package Weight (Imperial) | 4.500 L |
Package Weight (Metric) | 2.041 kg |
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
ACS380-040S-07A2-4
ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
XT2NU3090BFF000XXX
C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A
NNC75X75WH2
The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.
Frequently Asked Questions
What type of overload protection does the unit have?
The unit features automatic resetting overload protection with current limit foldback.
What are the cooling requirements for full rating?
Forced air cooling is required, specifically 20 CFM for full rating. Without cooling, power is derated by 30%.
What is the warranty period for the Silver Line Series?
The Silver Line Series power supplies come with a two-year limited warranty.
What certifications does the power supply hold?
It is UL 60950, CUL/CSA-C22.2 No. 234-M90, and UL 60950-1/CSA C22.2 N0. 60950-1 recognized.

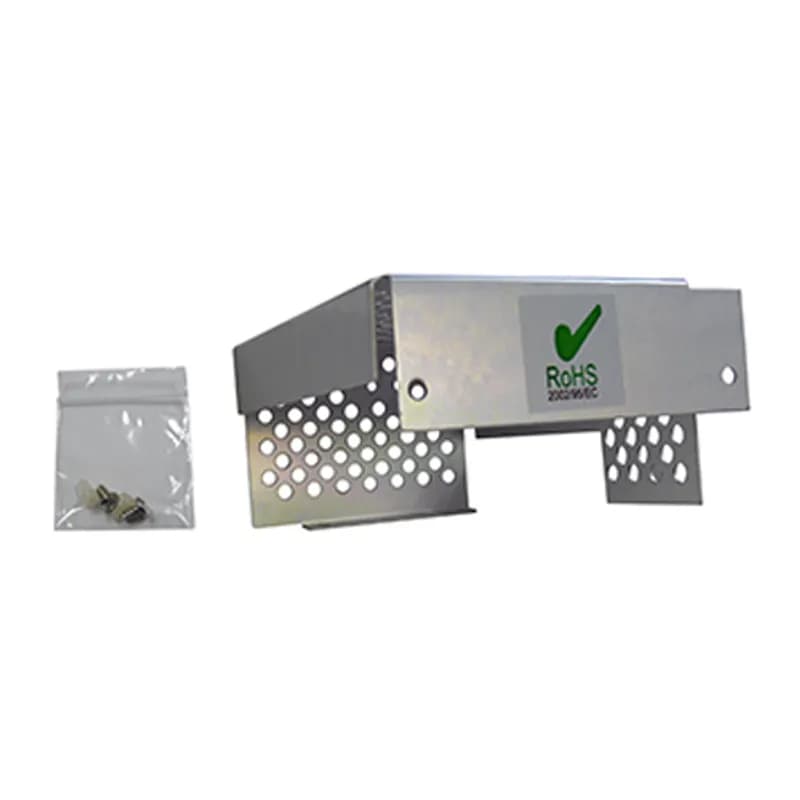

Can a cover be used with the SLD-12-1010-12T?
Yes, a cover for Case H1 (SLCASH-CVR) is available separately. Using a cover derates power by an additional 15%.
How do I connect AC input for 120 Vac?
For 120 Vac, connect jumpers 1-3 and 2-4, then apply AC to terminals 1 and 4.
What is the weight of the SLD-12-1010-12T power supply?
The SLD-12-1010-12T, which uses Case H1, weighs 7.5 LBS (3.4 KG).
What is the ripple specification for the DC output?
The maximum peak-to-peak ripple for the DC output is 3.0 mV.
What is the transient response time of the power supply?
The transient response time is 50 msec. at 50% load changes.
What are the output specifications for SLD-12-1010-12T?
The SLD-12-1010-12T provides dual outputs: 12 V at 1 A or 15 V at 0.8 A, and -12 V at 1 A or -15 V at 0.8 A.
