Overview
- 5-6 Vdc Output Voltage
- 5 A Output Current Rating
- 85-264 Vac / 90-375 Vdc Input Voltage
- 47-63 Hz Frequency
- DIN Rail Mounting
Specifications
Amperage Rating | 1.1, 0.7 AMP |
Application | Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation |
Brand Name | SolaHD |
Cable Size | 20 to 12 Solid or Stranded AWG |
Efficiency | 86 PCT |
Enclosure | Class 1, IP20 |
Environmental Conditions | 90 RH Humidity Range PCT |
Frequency Rating | 47/63 HZ |
Height | 2.95 IN |
Length | 1.77 IN |
Material | Molded Plastic |
Mounting | DIN Rail |
Special Features | LED Status Indication, -10 to 70 DEG C Operating Temperature, Output Voltage 24 to 28 VDC, Output Current Rating 3 to 2.1A |
Standard | UL (CANADA AND US), UL 94, UL 508, UL 60950, CUL, CSA-C22.2, CE |

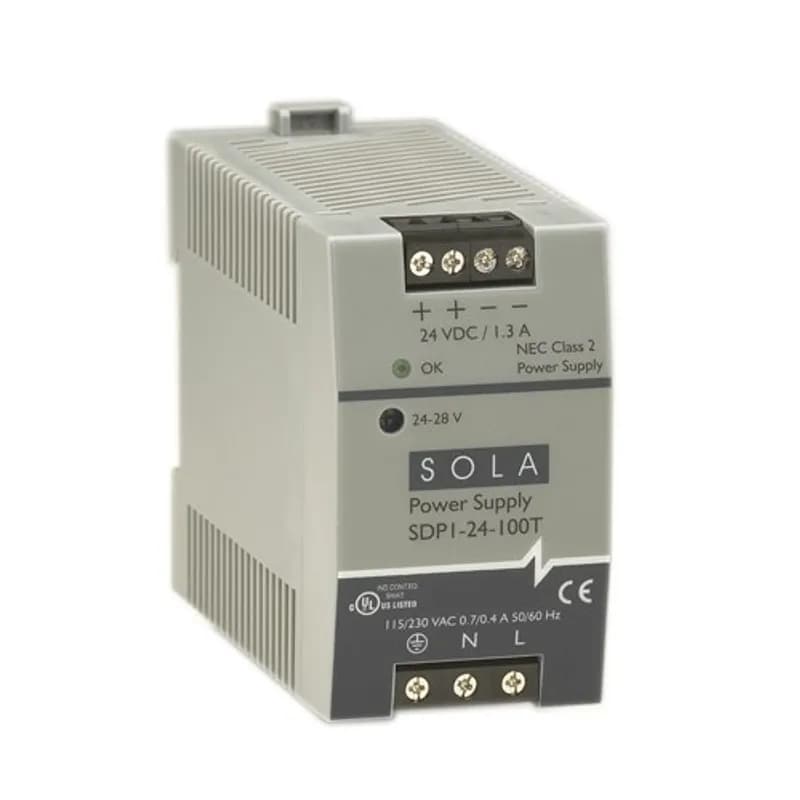

Type | SDP Low Power DIN Rail Series |
Voltage Rating | 85 to 264V AC, 90 to 375V DC |
Width | 3.58 IN |
Package Dimensions (L x W x H) | 5.7 IN x 4.9 IN x 2.7 IN |
Package Dimensions (L x W x H) | 14.478 cm x 12.446 cm x 6.858 cm |
Package Weight (Imperial) | 0.650 L |
Package Weight (Metric) | 0.295 kg |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
ACS380-040S-07A2-4
ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
XT2NU3090BFF000XXX
C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A
NNC75X75WH2
The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.
Frequently Asked Questions
What is the typical ripple and noise for the output?
The typical ripple and noise for the output is less than 50 mVpp.
What is the overvoltage protection threshold for the SDP5-5-100T?
The overvoltage protection (OVP) for the SDP5-5-100T activates above 6.7 Vdc.
Is the SDP5-5-100T RoHS compliant?
Yes, the SDP5-5-100T is RoHS Compliant.
What is the connector size range for input terminals?
The input screw terminals accept connector sizes ranging from 20-12 AWG (1.5 - 6 mm2) for solid or stranded conductors.
What is the recommended free space for cooling?
For normal convection cooling, a free space of 25 mm above and below the unit is recommended. No fan is required.
What is the warranty period for the SDP5-5-100T?
The SDP5-5-100T comes with a three-year limited warranty.
What kind of protection features does the power supply have?
The power supply includes overvoltage, short circuit, and open-circuit protection, along with PowerBoostTM industrial overload design.
What type of mounting does the SDP5-5-100T use?
The unit features simple snap-on mounting to DIN TS35/7.5 or TS35/15 rail systems.
Does the SDP5-5-100T require external fusing?
No, external fusing is not required as the unit provides an internal T3A fuse that is not accessible.
What is the operating temperature range for this unit?
The unit operates from -10°C to +60°C at full power, with linear derating to half power from +60°C to +70°C.
