HS1F750B

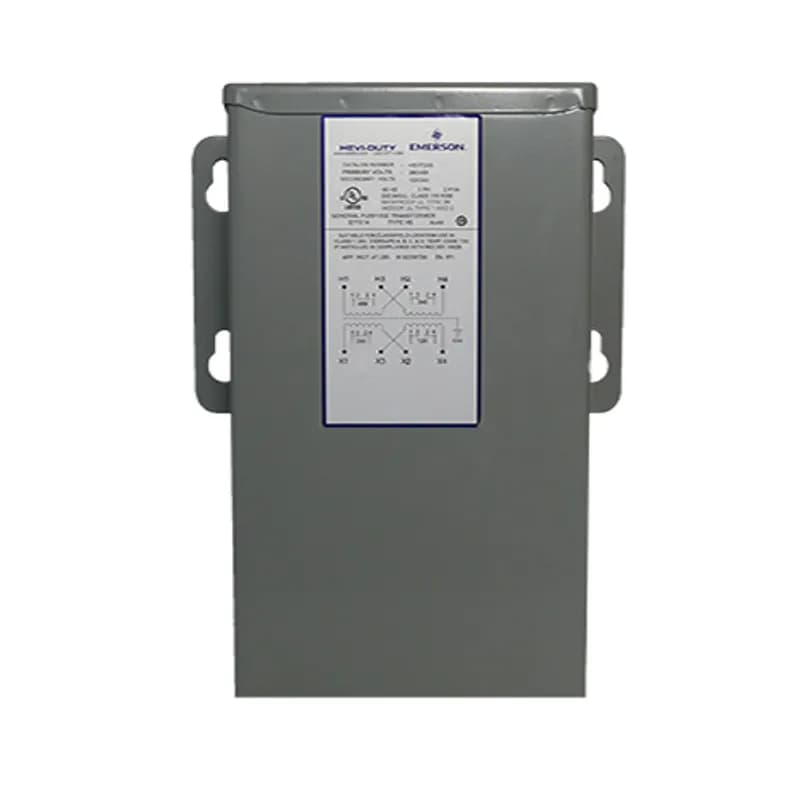

The HS1F750B is an encapsulated transformer rated for hazardous locations and harsh industrial environments. Its UL Listed/NEMA Type 3R enclosure protects it from dust and moisture.

Yes, it fully complies with the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).

The HS1F750B features a UL Listed/NEMA Type 3R encapsulated enclosure, suitable for both indoor and outdoor service.

The HS1F750B uses a UL Class 200˚C insulation system, with a temperature rise of 115˚C under full load.

The HS1F750B operates with a 240 x 480 Volt primary. The primary amperage is 3.13/1.56 Amps.

The HS1F750B provides a 120/240 Volt secondary. The secondary amperage is 6.25/3.13 Amps.

The HS1F750B has dimensions of 10.00 in height, 6.00 in width, and 5.00 in depth. Its approximate shipping weight is 27.0 lbs.

The HS1F750B is UL Listed (E25872, E77014) to UL 1561 or UL 5085-1, UL 5085-2, CSA C22.2 No. 47 or No. 66, and is RoHS Compliant.

For a 480 Volt primary, interconnect H2 to H3 and connect the lines to H1 and H4.

For a 240 Volt secondary, interconnect X2 to X3 and connect the lines to X1 and X4.
