Contact for Pricing

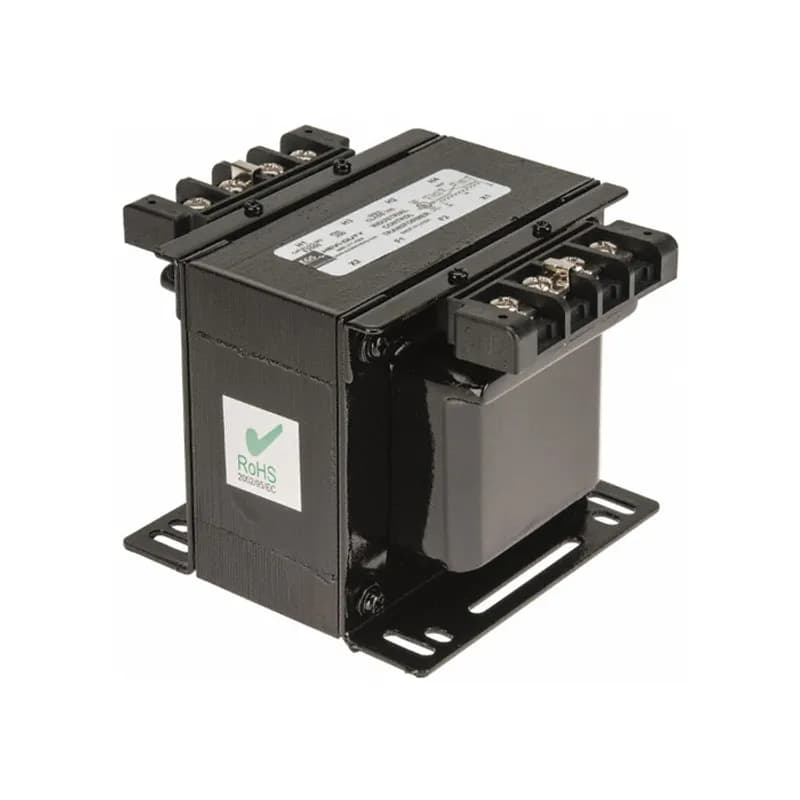

Overview
- 500VA power rating for industrial control applications
- Primary voltage options: 208/240/480/600V and 200/230/460/575V
- Dual secondary outputs: 120/24V and 115/23V
- Encapsulated design for protection against moisture, dust, and mechanical stress
- Compact footprint for installation in tight spaces
Specifications
Application | Industrial |
Brand Name | SolaHD |
Frequency | 60 Hz |
Frequency Rating | 60 HZ |
Height | 4.53 IN |
KVA Rating | 0.5 |
Length | 5.07 IN |
Material | Encapsulated |
Mounting | Heavy Gauge Steel Mounting Plate |
Number Of Phases | 1 |
Primary Voltage | 208/240/480/600 V |
Secondary Voltage | 120/24 V |
Series | E500JN |
Special Features | 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Will only accept one FB2 secondary fuse holder. |
Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
Type | SBE Encapsulated Series Transformers |
Voltage Rating | 208/240/480/600 VAC (Primary), 120/24 VAC (Secondary) |
Wattage | 250 VA |
Width | 5.25 IN |
Package Dimensions (L x W x H) | 11 IN x 9 IN x 9.4 IN |
Package Dimensions (L x W x H) | 27.94 cm x 22.86 cm x 23.876 cm |
Package Weight (Imperial) | 29.300 L |
Package Weight (Metric) | 13.291 kg |
Frequently Asked Questions
What is the VA rating of the E250WA transformer?
The E250WA transformer has a power rating of 250 VA.
What are the primary voltage options for the E250WA?
The E250WA supports primary voltages of 220 x 440 Volt (50/60 Hz), 230 x 460 Volt (50/60 Hz), and 240 x 480 Volt (60 Hz).
What are the secondary voltage options for the E250WA?
The E250WA provides secondary voltages of 110 Volt (50/60 Hz), 115 Volt (50/60 Hz), and 120 Volt (60 Hz).
What operating frequencies does the E250WA support?
The E250WA transformer is suitable for 50/60 Hz applications.
What type of secondary fuse holder is included with E250WA?
The E250WA includes a factory-installed secondary fuse holder for Type 3AG glass or ceramic fuses, along with finger-safe covers. Fuses are not included.
Does the E250WA include a primary fuse holder?
Yes, the E250WA includes a factory-installed primary fuse holder for Class "CC" rejection type fuses.
What certifications does the SBE series transformer have?
The SBE series is UL Listed (E77014 - Type SBE, UL 5085-1, UL 5085-2), CSA C22.2 No. 66.1, No. 66.2, and RoHS Compliant.
What are the dimensions of the E250WA transformer?
The E250WA has a height of 5.36 in, a width of 4.50 in, and a depth of 5.21 in.
What is the approximate shipping weight of the E250WA?
The approximate shipping weight for the E250WA transformer is 11.0 lbs.

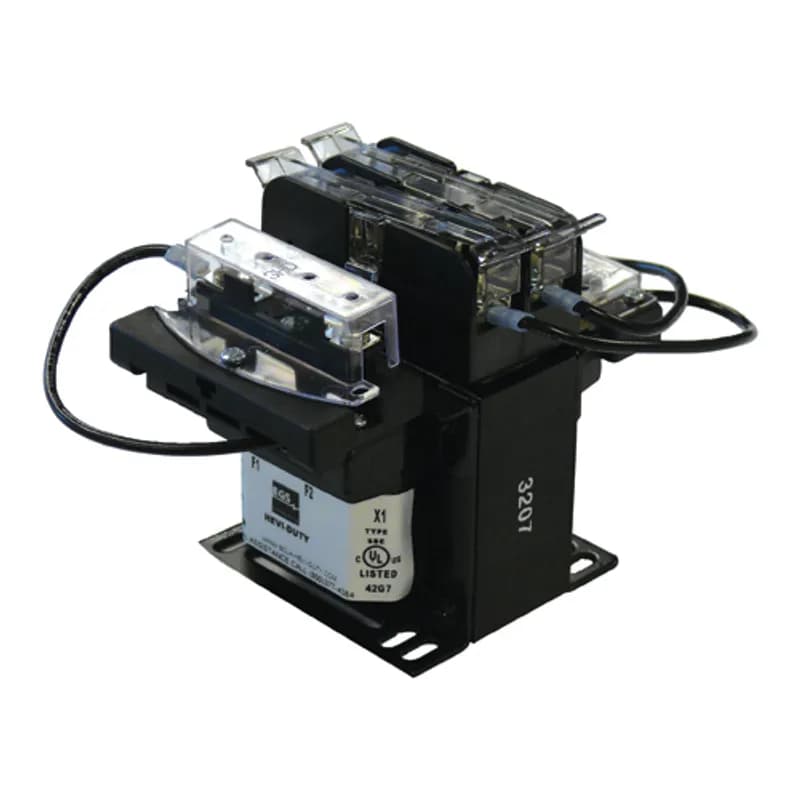

What type of transformer is the SolaHD SBE E250WA?
The SolaHD SBE E250WA is an epoxy encapsulated industrial control transformer designed to protect windings from moisture, dirt, and contaminants.
