Contact for Pricing
Overview
- Durable construction for long-lasting performance in industrial and commercial applications
- 12" intersection bend radius for smooth cable transitions and reduced strain
- Black (BL) finish for a professional appearance and resistance to wear
- Designed for use with Wyr-Grid cable management systems
- Ideal for data centers, industrial facilities, and commercial buildings
Specifications
Color | Black |
Color | Natural |
Material | Steel |
Material | Durable materials |
Series | Wyr-Grid |
Size | 12" |
Standard | UL |
Type | Intersection Bend Radius Control |
Width | 16.6 In. |
Package Dimensions (L x W x H) | 22.956 IN x 10.456 IN x 7.412 IN |
Package Weight (Imperial) | 4.36 lbs |
VWS106-C
Single saddle clip for fiber slack management and fiber patch cord routing. Accepts up to 1.06" dia (26.9mm) cable bundle. Nylon 6.6 material, natural color. Push mount into 0.18" (4mm) pre-drilled holes in Opticom Fiber Enclosures, 100 pc.

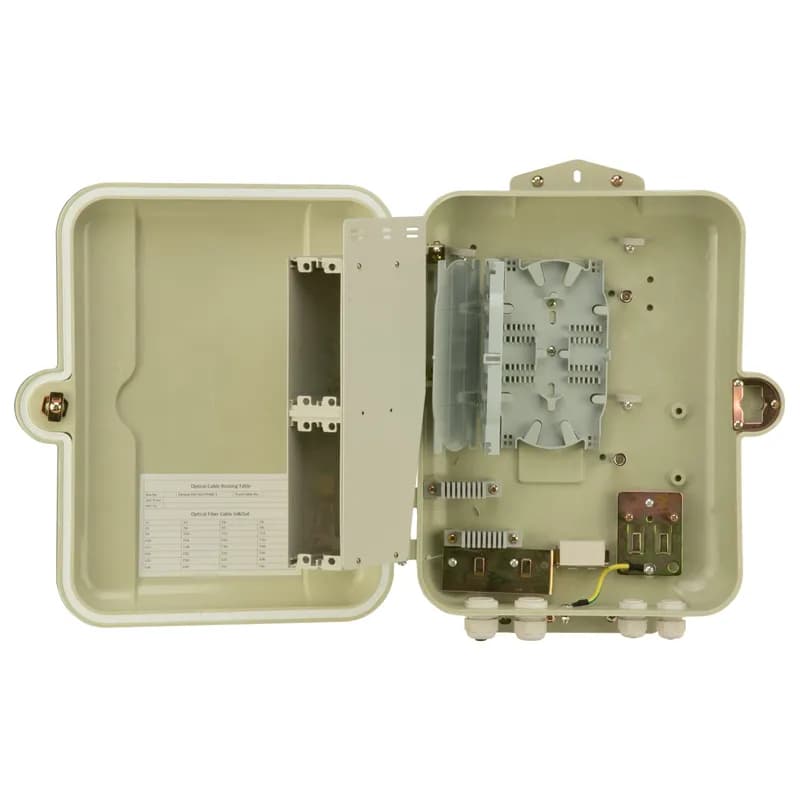

FPONE3
The wall mount enclosure is intended for use in passive optical LAN deployments. The small box is 420W x 350H x 110D mm in size, is IP55 rated, can use 2 x FPONEAP12 faceplates for 12 FASSCZAG-L adapters each, and has management for splice protection sleeves.

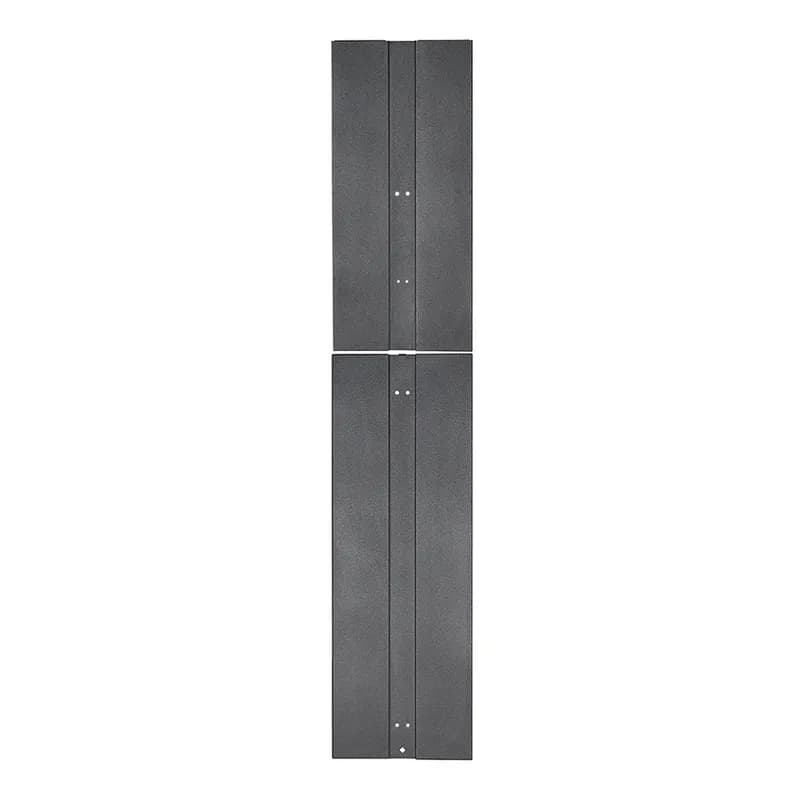

PR2VEPWH
The PatchRunner 2 End Panel closes off the end of row to protect cabling, and it provides a clean aesthetic to the solution. The end panel is metal with hanging features to speed up installation and reduce safety risks. The two part design reduces the size of the carton for easier transport throughout the site and less risk of transit damage. The end panel is 45 RU and is white.
PR2VEP96
The PatchRunner 2 End Panel closes off the end of row to protect cabling, and it provides a clean aesthetic to the solution. The end panel is metal with hanging features to speed up installation and reduce safety risks. The two part design reduces the size of the carton for easier transport throughout the site and less risk of transit damage. The end panel is 52 RU and is black.
PR2VEP96WH
The PatchRunner 2 End Panel closes off the end of row to protect cabling, and it provides a clean aesthetic to the solution. The end panel is metal with hanging features to speed up installation and reduce safety risks. The two part design reduces the size of the carton for easier transport throughout the site and less risk of transit damage. The end panel is 52 RU and is White.

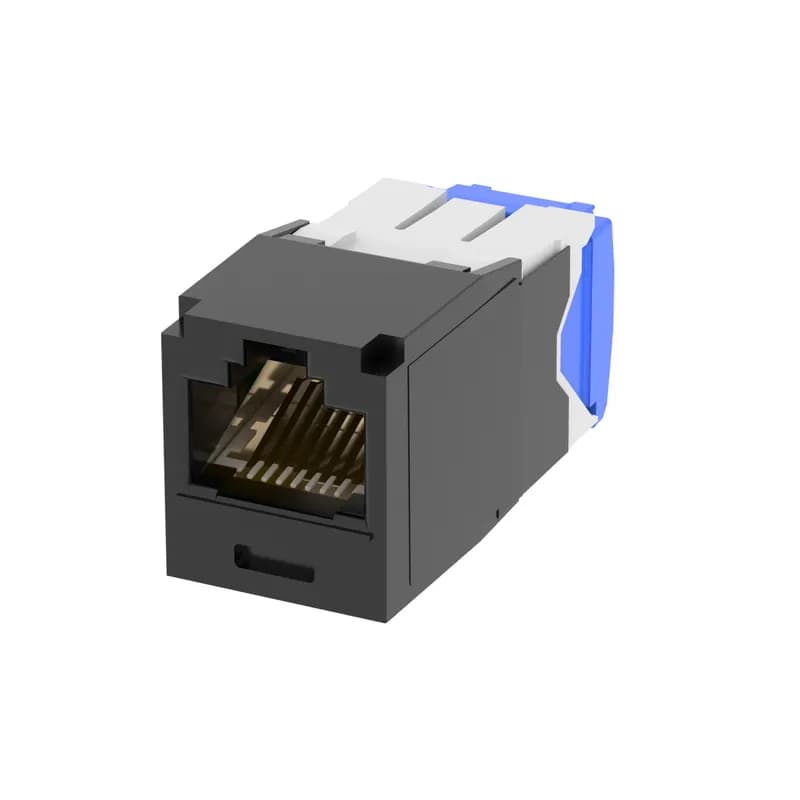

CJE6X88TGBL
The Mini-Com Cat 6A UTP RJ45 Corrosion Resistant TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. A polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance.

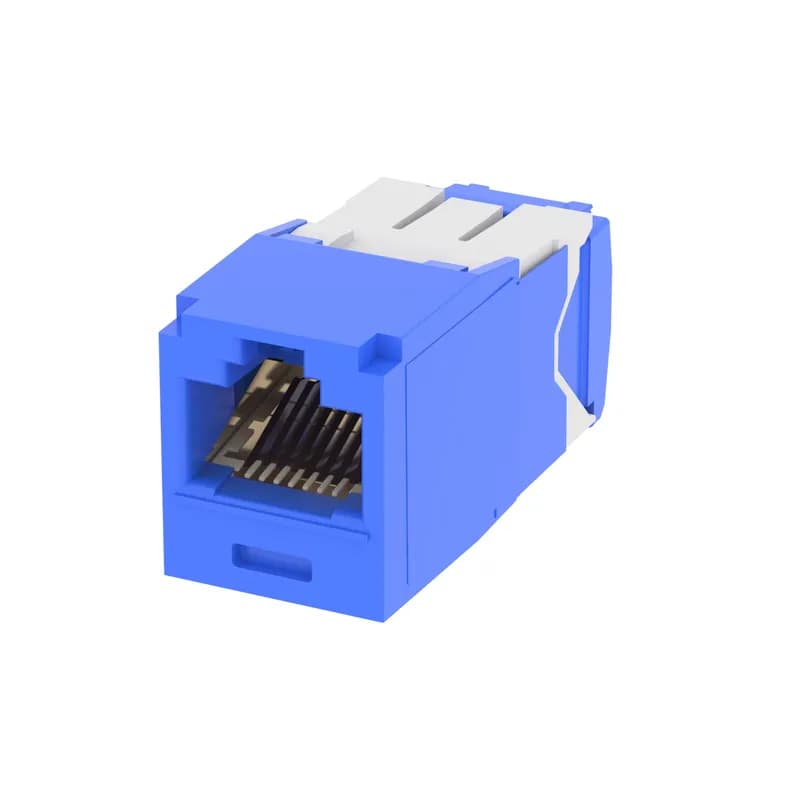

CJE6X88TGBU
The Mini-Com Cat 6A UTP RJ45 Corrosion Resistant TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. A polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance.
CJE6X88TGIW
The Mini-Com Cat 6A UTP RJ45 Corrosion Resistant TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. A polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance.How to Install the WG12IBRC4BL Bend Radius Control
This guide provides step-by-step instructions for installing the WG12IBRC4BL Bend Radius Control on a Wyr-Grid system.
Estimated time: 45m
Tools needed:
Screwdriver, Torque wrench
Supplies needed:
Truss Bolt Clips, 1/4-20 X 3/4” Trilobular Screws, M5 10mm Hex Head Screws
- Assemble the Bend Radius Control
Use (2) M5 x 10mm long Hex Head Screws to assemble the left and right sides of the Bend Radius Control.
- Attach the Lower Bend Radius Support
Secure the Lower Bend Radius Support to the Bend Radius Control using (2) M5 x 10mm long Hex Head Screws.
- Position and Secure the Bend Radius Control
Position the Bend Radius Control on the Wyr-Grid and secure it using (4) Truss Bolt Clips and (4) 1/4-20 X 3/4” Trilobular Screws. Tighten the screws to a torque of 6 +/- 0.25 Ft-Lbs (8.1 +/- 0.3 N.m).
- Final Tightening of Hex Head Screws
Tighten the (2) M5 x 10mm Hex Head Screws to a torque of 2.26 N.m (20 in-lbs) to ensure a secure fit.
