Panduit UCCAD-C130 - Panduit UCCAD-C130 Universal Cable Clip, Angled Cable Down is an adjustable edge clip designed for various rack sizes. They have a teeth lock feature to prevent movement and can handle multiple gauges. Great for managing PV cables on a solar panel and can accommodate up to 2 PV cables. Maximum cable diameter of 6.5-7.5 mm, frame thickness of 1.0-3.0 mm and frame width of 20-35 mm. Includes UCCCDL-X130. Made of Weather Resistant Acetal, are black in color and come in packages of 10.
Panduit

UCCAD-C130

UPC: 613056755901

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingInstallation InstructionsVideo Clip

Contact for Pricing

Minimum Qty: 1000

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit UCCAD-C130 Universal Cable Clip, Angled Cable Down, is an essential component for efficient and secure cable management, particularly within solar photovoltaic (PV) installations. Designed for versatility, this adjustable edge clip fits various rack sizes, ensuring a snug and reliable fit. Its innovative teeth lock feature actively prevents any unwanted movement, maintaining cable organization even in dynamic environments. This clip is engineered to manage multiple cable gauges, making it highly adaptable to different wiring needs. Specifically, it excels at managing PV cables on solar panels, with the capacity to accommodate up to two PV cables per clip. The UCCAD-C130 is constructed from weather-resistant acetal, a material chosen for its durability and resistance to environmental factors, ensuring long-term performance. The clip is black in color and comes in convenient packages of 10. Its specifications include a maximum cable diameter of 6.5-7.5 mm, and it is designed to attach to frame thicknesses ranging from 1.0-3.0 mm and frame widths from 20-35 mm. This product includes the UCCCDL-X130 component for enhanced functionality. Manufactured in the USA, the Panduit UCCAD-C130 offers a practical and robust solution for cable routing and protection in solar energy systems and other industrial applications requiring reliable edge mounting and cable retention. Its design prioritizes ease of use and installation efficiency in the field, often without the need for specialized tools, contributing to faster project completion and reduced labor costs. The weather-resistant acetal construction ensures it can withstand outdoor conditions typical of solar installations.
  • Adjustable edge clip for various rack sizes
  • Teeth lock feature prevents cable movement
  • Accommodates up to 2 PV cables (6.5-7.5mm diameter)
  • Constructed from weather-resistant acetal
  • Designed for solar panel PV cable management

Specifications

Application
Indoor/Outdoor
Cable Size
0.3
Cable Type
Wire Clip
Color
Black
Material
Weather Resistant Acetal
Mounting
Edge Clip
Operating Temperature
NA F
Standard
RoHS Compliant
Type
Wire Clip
Package Dimensions (L x W x H)
23 IN x 10.5 IN x 7.5 IN
Package Weight (Imperial)
14.77 lbs

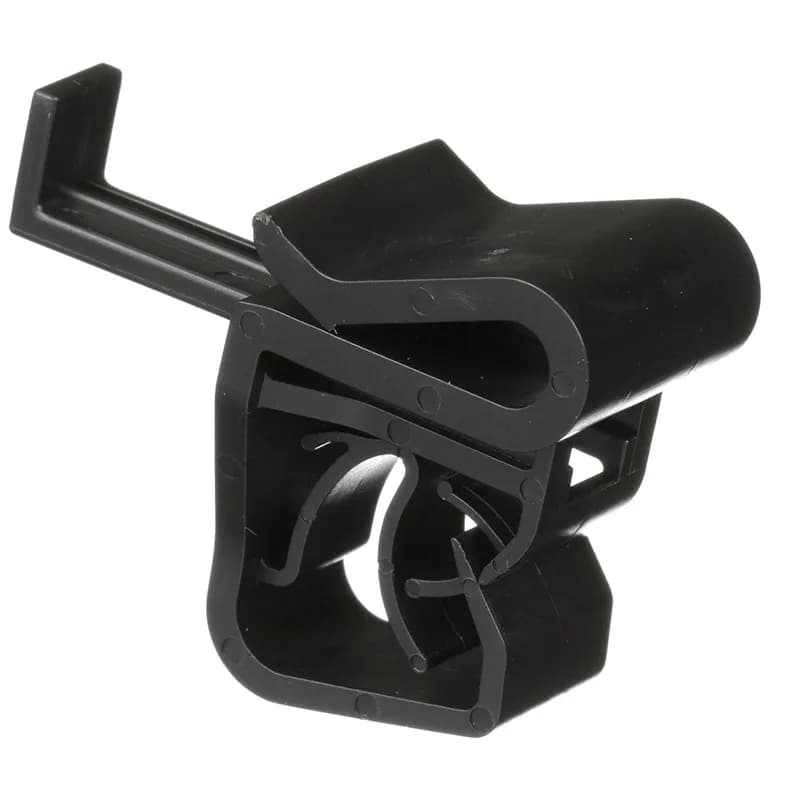

Panduit UCCPD-C130 Universal Cable Clips for Parallel Type Cable Down, are adjustable edge clips designed for various rack sizes. Their teeth lock feature prevents movement and can handle multiple gauges. Great for managing PV cable on solar panels. Maximum cable diameter of 0.25 -0.30 (6.5-7.5mm), frame thickness of 0.04 -0.12 (1.0-3.0mm) and frame width of 0.78 -1.38 (20-35mm). Includes UCCCDL-X130 latch. Made of Weather Resistant Acetal, are black in color and come in packages of 100.

UCCPD-C130

Panduit UCCPD-C130 Universal Cable Clips for Parallel Type Cable Down, are adjustable edge clips designed for various rack sizes. Their teeth lock feature prevents movement and can handle multiple gauges. Great for managing PV cable on solar panels. Maximum cable diameter of 0.25 -0.30 (6.5-7.5mm), frame thickness of 0.04 -0.12 (1.0-3.0mm) and frame width of 0.78 -1.38 (20-35mm). Includes UCCCDL-X130 latch. Made of Weather Resistant Acetal, are black in color and come in packages of 100.

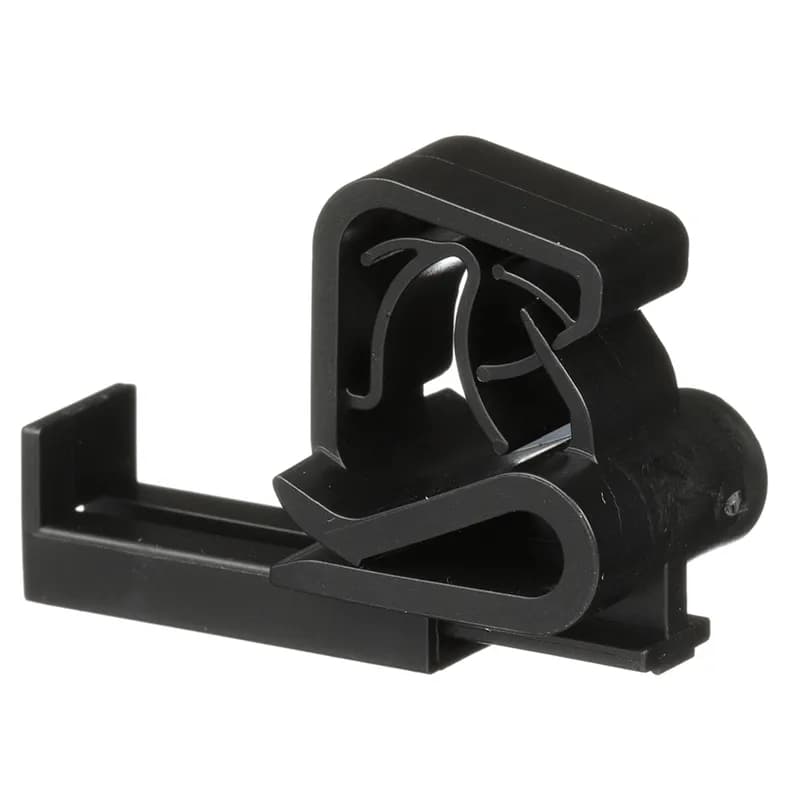

Panduit UCCPU-C130 Universal Cable Clips for Parallel Type Cable Up, are adjustable edge clips designed for various rack sizes. Their teeth lock feature prevents movement and can handle multiple gauges. Great for managing PV cable on solar panels. Maximum cable diameter of 0.25 -0.30 (6.5-7.5mm), frame thickness of 0.04 -0.12 (1.0-3.0mm) and frame width of 0.78 -1.38 (20-35mm). Includes UCCCUL-X130 latch. Made of Weather Resistant Acetal, are black in color and come in packages of 100.

UCCPU-C130

Panduit UCCPU-C130 Universal Cable Clips for Parallel Type Cable Up, are adjustable edge clips designed for various rack sizes. Their teeth lock feature prevents movement and can handle multiple gauges. Great for managing PV cable on solar panels. Maximum cable diameter of 0.25 -0.30 (6.5-7.5mm), frame thickness of 0.04 -0.12 (1.0-3.0mm) and frame width of 0.78 -1.38 (20-35mm). Includes UCCCUL-X130 latch. Made of Weather Resistant Acetal, are black in color and come in packages of 100.
Panduit UCCCUL-X130 Universal Cable Clip Latch, are designed to work with cable up style cable clips. Together they work great for managing PV cables on a solar panel and can accommodate up to 2 PV cables. Made of Weather Resistant Acetal, are black in color and come in packages of 10.

UCCCUL-X130

Panduit UCCCUL-X130 Universal Cable Clip Latch, are designed to work with cable up style cable clips. Together they work great for managing PV cables on a solar panel and can accommodate up to 2 PV cables. Made of Weather Resistant Acetal, are black in color and come in packages of 10.
Panduit UCCCDL-X130 Universal Cable Clip Latch, are designed to work with cable down style cable clips. Together they work great for managing PV cables on a solar panel and can accommodate up to 2 PV cables. Made of Weather Resistant Acetal, are black in color and come in packages of 10.

UCCCDL-X130

Panduit UCCCDL-X130 Universal Cable Clip Latch, are designed to work with cable down style cable clips. Together they work great for managing PV cables on a solar panel and can accommodate up to 2 PV cables. Made of Weather Resistant Acetal, are black in color and come in packages of 10.

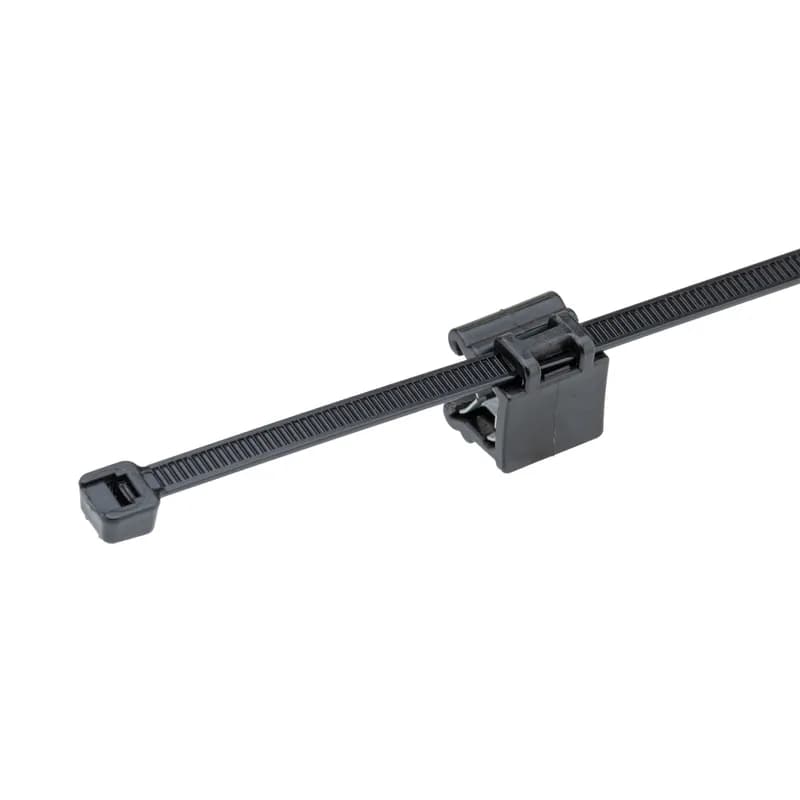

The CMSB24-2S-C300 Edge Clip with Cable Tie Mounts helps secure wire and cable bundles with versatile mounting to edges without adhesives or drilling. Pre-assembled with a cable tie for securing and routing cables perpendicular and adjacent to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.

CMSB24-2S-C300

The CMSB24-2S-C300 Edge Clip with Cable Tie Mounts helps secure wire and cable bundles with versatile mounting to edges without adhesives or drilling. Pre-assembled with a cable tie for securing and routing cables perpendicular and adjacent to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.
Panduit SVSA12-2S-D0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on side face of mount and positions wire runs parallel to frame edge. 500 pieces per bag.

SVSA12-2S-D0

Panduit SVSA12-2S-D0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on side face of mount and positions wire runs parallel to frame edge. 500 pieces per bag.
Panduit SVSB12-2S-D0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on side face of mount and positions wire runs perpendicular to frame edge. 500 pieces per bag.

SVSB12-2S-D0

Panduit SVSB12-2S-D0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on side face of mount and positions wire runs perpendicular to frame edge. 500 pieces per bag.
Panduit SVEB12-2S-D0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on top face of mount and positions wire runs perpendicular to frame edge. 500 pieces per bag.

SVEB12-2S-D0

Panduit SVEB12-2S-D0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on top face of mount and positions wire runs perpendicular to frame edge. 500 pieces per bag.

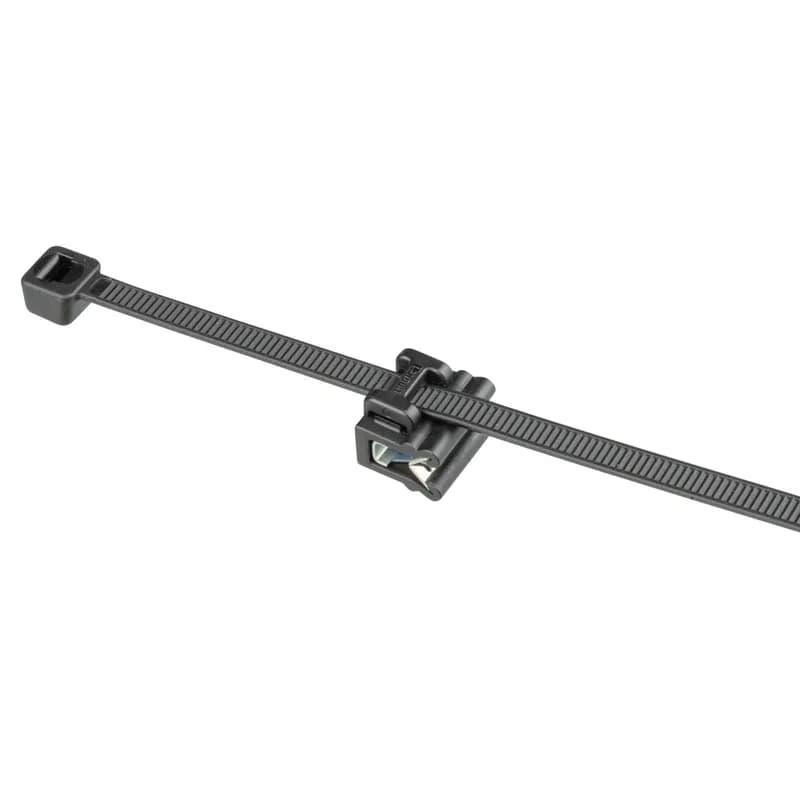

Panduit SVSA12-2S-C0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on side face of mount and positions wire runs parallel to frame edge. 100 pieces per bag.

SVSA12-2S-C0

Panduit SVSA12-2S-C0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on side face of mount and positions wire runs parallel to frame edge. 100 pieces per bag.
Panduit SVEB12-2S-C0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on top face of mount and positions wire runs perpendicular to frame edge. 100 pieces per bag.

SVEB12-2S-C0

Panduit SVEB12-2S-C0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on top face of mount and positions wire runs perpendicular to frame edge. 100 pieces per bag.
Panduit SVEA12-2S-C0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on top face of mount and positions wire runs parallel to frame edge. 100 pieces per bag.

SVEA12-2S-C0

Panduit SVEA12-2S-C0 Solar-Version Edge Clip Cable Tie Assemblies are ideal for mounting to the edge of a solar module frame and use the cable tie to suspend PV wire runs. Edge Clip mount is made of weather resistant Nylon 6.6 housing and a zinc-plated steel clip. For frame edge .028" (.7mm) to .118" (3mm) thick. Pre-assembled with a contractor-grade cable tie made of weather-resistant nylon 6.6 on top face of mount and positions wire runs parallel to frame edge. 100 pieces per bag.

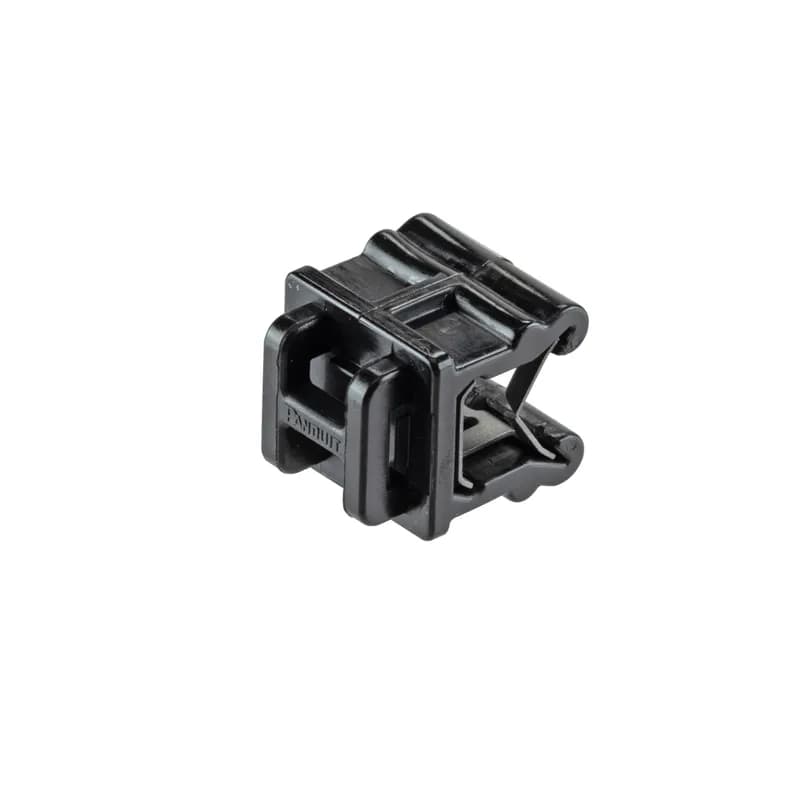

The CME24-M300 Edge Clip provides versatile mounting to edges without adhesives or drilling. When paired with a miniature, intermediate or standard cross-section cable tie, will provide a means to secure and route cables parallel or perpendicular and offset (top affixed) to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.

CME24-M300

The CME24-M300 Edge Clip provides versatile mounting to edges without adhesives or drilling. When paired with a miniature, intermediate or standard cross-section cable tie, will provide a means to secure and route cables parallel or perpendicular and offset (top affixed) to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.

How to Install the UCCAD-C130 Universal Edge Clip

This guide provides step-by-step instructions for installing the UCCAD-C130 Universal Edge Clip for effective cable management in solar farms or general cabling applications.

Estimated time: 30m

Tools needed:

Screwdriver

Supplies needed:

Universal edge clip (UCCAD-C130), Latch, Cables

  1. Pre-assemble the clip

    Assemble the main clip and the latch by inserting only 1 or 2 teeth until you hear 1 or 2 'clicking' sounds.

  2. Secure the clip to the panel

    Press the pre-assembled clip toward the panel edge and tighten the latch to secure it in place.

  3. Insert the cables

    Press the first cable into the clip until it is clamped. Rotate the cable up and down slightly to ease insertion. If needed, press a second cable into the clip, which will push the first cable down.
