Panduit TV105-.75TLY - Non-Shrink PVC tubing, .75" (19.1mm) inside diameter, 600 voltage rating, clear.
Panduit

TV105-.75TLY

UPC: 074983452910

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Overview

The Panduit TV105-.75TLY is a non-shrink PVC tubing designed for reliable electrical and mechanical protection. This tubing features an inside diameter of 0.75 inches (19.1mm) and a substantial 600 voltage rating, making it suitable for a variety of industrial applications. Its clear construction allows for easy visual inspection of enclosed wires and components, facilitating efficient assembly and maintenance processes. The non-shrink characteristic ensures that the tubing maintains its original dimensions and protective properties without deformation under thermal stress, providing consistent performance over time. This makes it an ideal choice for cable management, wire harnessing, and general insulation needs where a stable, protective barrier is required. Manufactured in the USA, the Panduit TV105-.75TLY offers durability and dependable performance for your critical wiring and mechanical protection requirements. Its clear PVC material provides good abrasion resistance and electrical insulation, ensuring the integrity of your electrical systems.
  • Non-shrink PVC construction for stable dimensions
  • 0.75 inch (19.1mm) inside diameter
  • 600 voltage rating for electrical insulation
  • Clear material for easy inspection
  • Durable and reliable for industrial applications

Specifications

Application
1) Provides Insulation and Protection for Lead Wires, Wire Harness Assemblies, Soldered Joints and Components in Electrical and Electronic Equipment, 2) All Purpose Flexible and Non-Shrinkable
Color
Clear
Material
PVC
Nominal Size
3/4in.
Standard
CSA C22.2 No. 198.1 (OFT), UL224 VW-1, MIL-I-631, RoHS Compliant
Temperature Rating
221 F
Temperature Rating, Maximum
221 F
Temperature Rating, Maximum
105 C
Temperature Rating, Minimum
221 F
Temperature Rating, Minimum
105 C
Type
Non-Shrink Tubing
Package Dimensions (L x W x H)
21 IN x 20.6 IN x 7.6 IN
Package Weight (Imperial)
14.35 lbs
Non-Shrink PVC tubing, 6 AWG, .17" (4.52mm) inside diameter, 300 voltage rating, clear.

TV105-6MY

Non-Shrink PVC tubing, 6 AWG, .17" (4.52mm) inside diameter, 300 voltage rating, clear.
Non-Shrink PVC tubing, 12 AWG, .08" (2.26mm) inside diameter, 300 voltage rating, clear.

TV105-12MY

Non-Shrink PVC tubing, 12 AWG, .08" (2.26mm) inside diameter, 300 voltage rating, clear.
The TV105-6M20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 300 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). Nominal Size: 6 AWG; 0.17" (4.52 mm) x 1000 ft. (304.8 mm) Color Black. 1 per package.

TV105-6M20Y

The TV105-6M20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 300 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). Nominal Size: 6 AWG; 0.17" (4.52 mm) x 1000 ft. (304.8 mm) Color Black. 1 per package.
The TV105-3M20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 300 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). Nominal size: 3 AWG; 0.24" (6.32 mm) x 1000 ft. (304.8 mm) Color Black. 1 per package.

TV105-3M20Y

The TV105-3M20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 300 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). Nominal size: 3 AWG; 0.24" (6.32 mm) x 1000 ft. (304.8 mm) Color Black. 1 per package.
Non-Shrink PVC tubing, .50" (12.7mm) inside diameter, 600 voltage rating, black.

TV105-.50D20Y

Non-Shrink PVC tubing, .50" (12.7mm) inside diameter, 600 voltage rating, black.
The TV105-.75TL20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 600 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). 0.75" (19.1 mm) x 250 ft. (76.2 mm) Color Black. 1 per package.

TV105-.75TL20Y

The TV105-.75TL20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 600 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). 0.75" (19.1 mm) x 250 ft. (76.2 mm) Color Black. 1 per package.
Non-Shrink PVC tubing, 1 AWG, .34" (8.81mm) inside diameter, 300 voltage rating, black.

TV105-1M20Y

Non-Shrink PVC tubing, 1 AWG, .34" (8.81mm) inside diameter, 300 voltage rating, black.
Non-Shrink PVC tubing, .38" (10.13mm) inside diameter, 600 voltage rating, black.

TV105-.38D20Y

Non-Shrink PVC tubing, .38" (10.13mm) inside diameter, 600 voltage rating, black.
The TV105-1.0C20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 600 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). 1" (25.4 mm) x 100 ft. (30.5 mm) Color Black. 1 per package.

TV105-1.0C20Y

The TV105-1.0C20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 600 V. Material: PVC. Continuous use temperature range: -4 F 221 F (-20 C 105 C). 1" (25.4 mm) x 100 ft. (30.5 mm) Color Black. 1 per package.
Non-Shrink PVC tubing, 12 AWG, .08" (2.26mm) inside diameter, 300 voltage rating, black.

TV105-12M20Y

Non-Shrink PVC tubing, 12 AWG, .08" (2.26mm) inside diameter, 300 voltage rating, black.

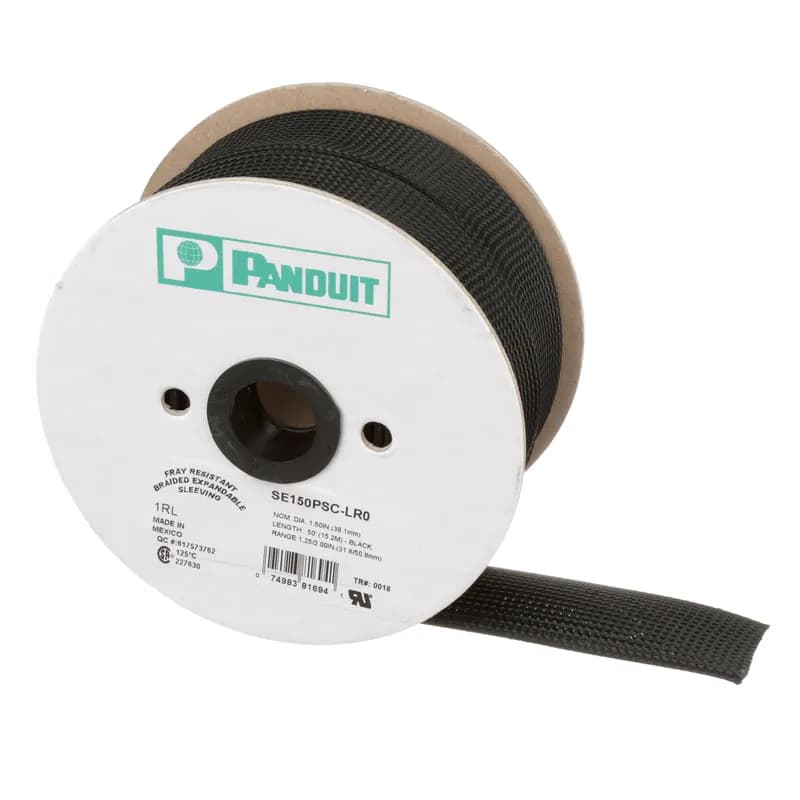

The SE150P-TR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94 F 257 F (-70 C 125 C). Polyethylene Terephthalate. Nominal Diameter: 1.50" (38.1 mm), 200' (61 m) long. Color Black. 1 per package.

SE150P-TR0

The SE150P-TR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94 F 257 F (-70 C 125 C). Polyethylene Terephthalate. Nominal Diameter: 1.50" (38.1 mm), 200' (61 m) long. Color Black. 1 per package.

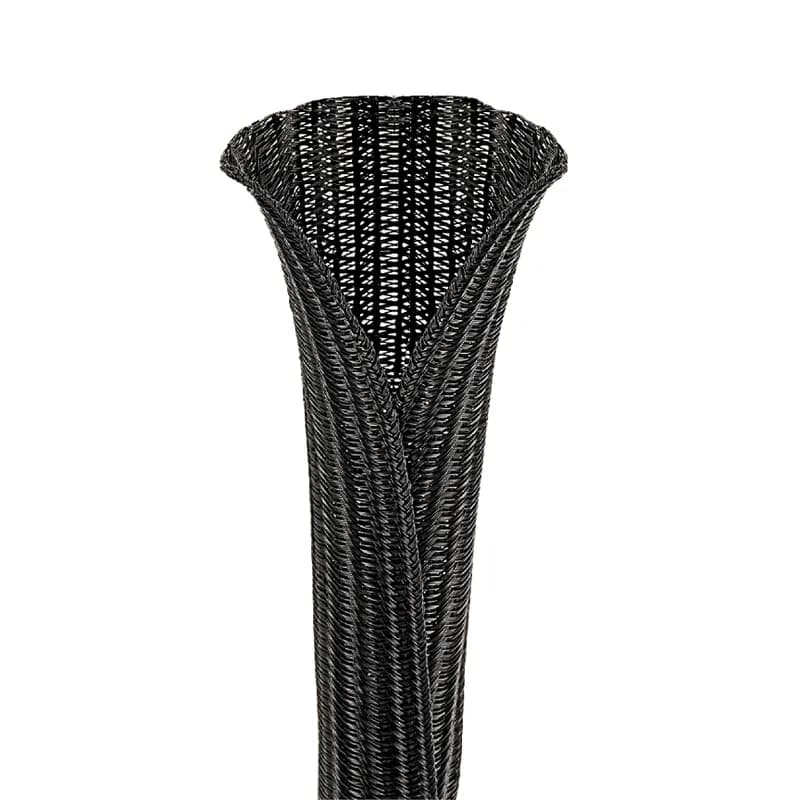

Pan-Wrap Braided Expandable Sleeving, .125" (3.2 mm) diameter, provides continuous Abrasion Resistance for Wires, Cables and Tubing. The highly flexible open Weave will not trap heat or humidity, black with white tracer, Flame retardant Polyethylene Terephthalate, 400 ft. per reel.

SE12PSFR-4CR0

Pan-Wrap Braided Expandable Sleeving, .125" (3.2 mm) diameter, provides continuous Abrasion Resistance for Wires, Cables and Tubing. The highly flexible open Weave will not trap heat or humidity, black with white tracer, Flame retardant Polyethylene Terephthalate, 400 ft. per reel.
