Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview
- Low-profile design ideal for space-limited applications
- Four-way cable tie entry for flexible wire and cable orientation
- Screw-installed mount using a #8 (M4) screw
- Constructed from weather-resistant Nylon 6.6 for outdoor use
- Compatible with miniature, intermediate, and standard cable ties
Specifications
Application | Indoor/Outdoor;Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited |
Cable Size | NA |
Cable Type | Cable Tie Mount |
Color | Black |
Insulation | Polyamide (PA) |
Material Quality | Nylon 6.6 |
Mount Size | 4.3 |
Mounting | Screw-On |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | 185 F |
Operating Temperature, Minimum | 85 C |
Screw Holes | #8 (M4) |
Screw Size | #8 (M4) |
Standard | CE Compliant, UL Recognized E136577, RoHS Compliant |
Temperature Range | -76°F - 185°F (-60°C - 85°C) |
Temperature Range | -76 F - 185 F (-60 C - 85 C) |
Type | Cable Tie Mount |
Used With Cable Ties* | M, I, S |
Package Dimensions (L x W x H) | 11 IN x 9.25 IN x 7.2 IN |
Package Weight (Imperial) | 3.65 lbs |
TMEH-S10-C0
Panduit TMEH-S10-C0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #10 (M5) screw. For outdoor use, made of Weather Resistant Nylon 6.6. They are 0.72 (18.3mm) wide, are black in color and come in packages of 1000.
TMEH-S8-X0
The extra heavy cable tie mount in black is applied with a #8 (M4) screw. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 10.

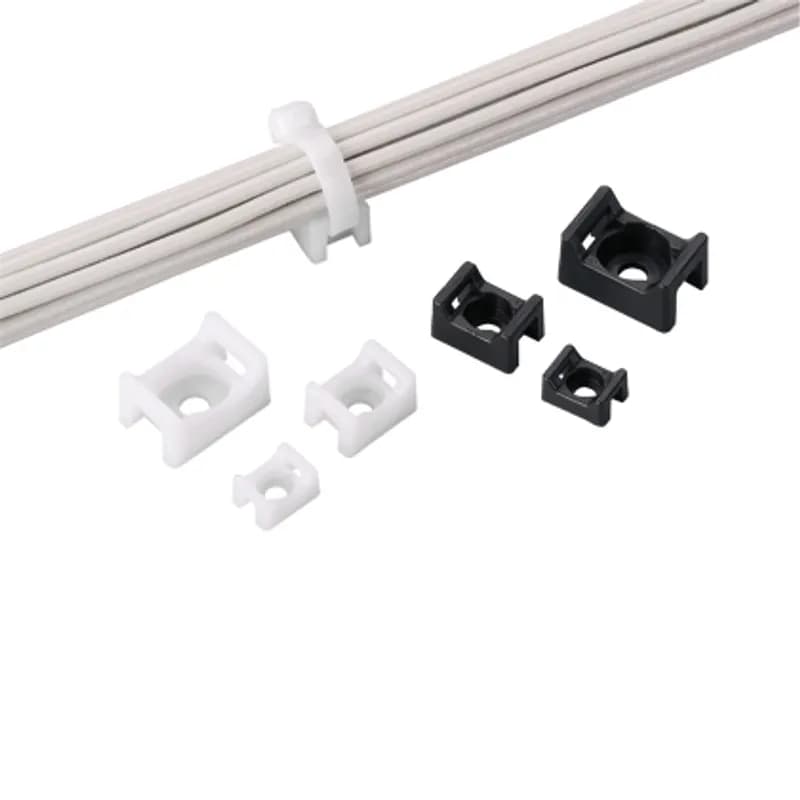

TM2S6-M0
The cable tie mount in black is applied with a #6 (M3) screw and is 0.43" (10.9 mm) wide. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 1000.
TM3S8-M0
Panduit TM3S8-M0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For outdoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Nylon 6.6. They are 0.61" (15.5 mm) wide, are black in color and come in packages of 1000.
TM2S8-M0
Panduit TM2S8-M0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For outdoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Nylon 6.6. They are 0.43" (10.9 mm) wide, are black in color and come in packages of 1000.TM2R6-M0
The cable tie mount in black is applied with a rivet and is 0.43" (10.9 mm) wide. It uses a #6 (M3) screw and is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 1000.
TM1S6-C0
The cable tie mount in black is applied with a #6 (M3) screw and is 0.32" (8.1 mm) wide. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 100.
TMEH-S25-X0
Panduit TMEH-S25-X0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #1/4 (M6) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 10.
TMEH-S10-X0
The extra heavy cable tie mount in black is applied with a #10 (M5) screw. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 10.
TM3S8-C0
Panduit TM3S8-C0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For outdoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Nylon 6.6. They are 0.61" (15.5 mm) wide, are black in color and come in packages of 100.
TMEH-S8-C0
Panduit TMEH-S8-C0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #8 (M4) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
TMEH-S10-Q0
Panduit TMEH-S10-Q0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #10 (M5) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 25.Frequently Asked Questions about Panduit
