Panduit T70HB3-X - The T-70 Surface Raceway, 3-Sided Hanging Box is designed for use with Single-Gang Electrical Outlets
Panduit

T70HB3-X

UPC: 074983698790

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The Panduit T-70 Surface Raceway T70HB3-X is a specialized 3-sided hanging box designed for the seamless integration of single-gang electrical outlets within the T-70 Surface Raceway system. This fitting is engineered to provide a clean and organized solution for routing, protecting, and concealing high-performance copper, voice, video, fiber optic, and electrical wiring. It is compatible with standard power receptacles and communication adapters, snapping directly onto the T-70 Surface Raceway channels. The T-70 system itself is UL and CSA rated for 600V, meeting UL 5A and CSA C22.2 No. 62.1-03 standards, and is FT4 rated for flame retardancy. The T-70 raceway channels offer a large cable capacity with an aesthetically pleasing design and are tamper-resistant. They are compatible with NEMA standard 70mm faceplates or Panduit's Classic Series Snap-On Faceplates, offering maximum flexibility for various installation needs. Furthermore, the T-70 system is designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high-performance copper and fiber optic cabling systems, ensuring signal integrity. This 3-sided hanging box, in particular, facilitates the installation of single-gang electrical outlets, allowing for efficient wire management and a professional finish in commercial and industrial environments. The T70HB3-X is manufactured in the USA, ensuring quality and reliability for your infrastructure projects. It is designed to work in conjunction with other T-70 components, including base and cover channels, various fittings like corners, tees, and transition fittings, as well as accessories such as device brackets. This product is ideal for applications requiring a neat and accessible power outlet solution integrated directly into a surface raceway system.
  • Designed for single-gang electrical outlets within the T-70 Surface Raceway system
  • Compatible with standard power receptacles and communication adapters
  • UL and CSA rated 600V, meets UL 5A and CSA C22.2 No. 62.1-03 standards, FT4 rated
  • Maintains TIA/EIA-568-B and 569-B required minimum bend radius for cabling
  • Manufactured in the USA for quality and reliability

Specifications

Application
Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density.
Application
Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center ™ Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density.
Color*
International Gray
Cover Type
Insert
Height
1.56 IN
Length
6.28
Material
PVC
Mounting Type
Surface Raceway, 3-Sided Hanging Box
Series
T-70
Size
Single-Gang
Standard
CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129
Type
T-70 Fittings & Accessories
Type
Surface Raceway Hanging Box
Width
6.28 in
Width
159.512 mm
Package Dimensions (L x W x H)
13.55 IN x 10.2 IN x 4.4 IN
Package Weight (Imperial)
1.56 lbs

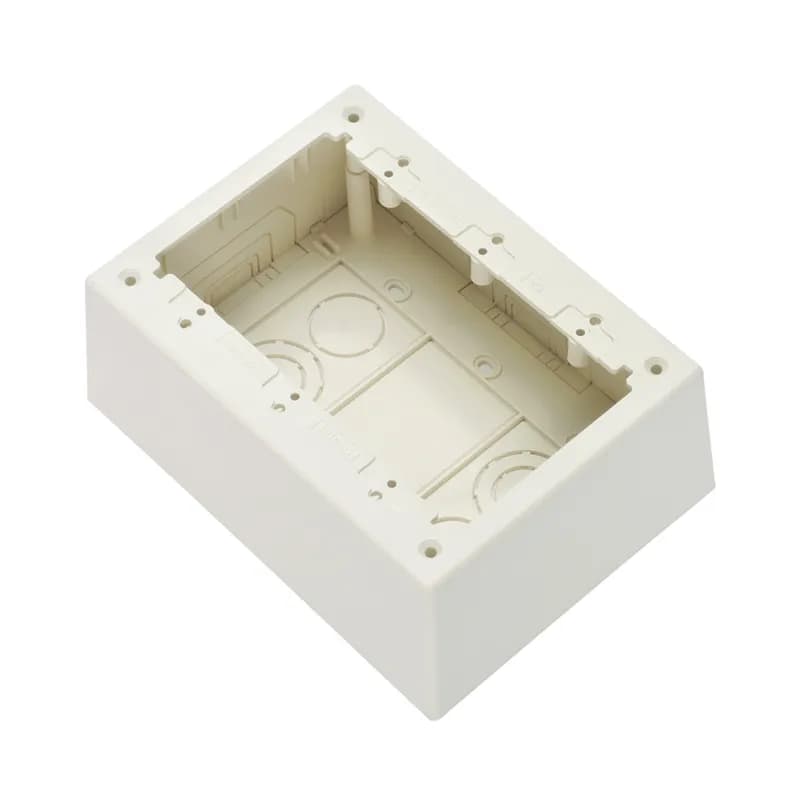

The three gang, two-piece screw together, Deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard three gang faceplates. For use with Pan-Way LD, LDPH or T-45 Surface Raceway systems. 7.00in L x 5.19in W x 2.75in H (177.9mm x 131.9mm x 69.8mm). Breakouts for 1/2in, 3/4in and 1in diameter conduit, White.

JBP3DWH

The three gang, two-piece screw together, Deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard three gang faceplates. For use with Pan-Way LD, LDPH or T-45 Surface Raceway systems. 7.00in L x 5.19in W x 2.75in H (177.9mm x 131.9mm x 69.8mm). Breakouts for 1/2in, 3/4in and 1in diameter conduit, White.
The T-45 Tee Fitting is designed to route cables in a tee orientation. It is White.

T45TWH

The T-45 Tee Fitting is designed to route cables in a tee orientation. It is White.

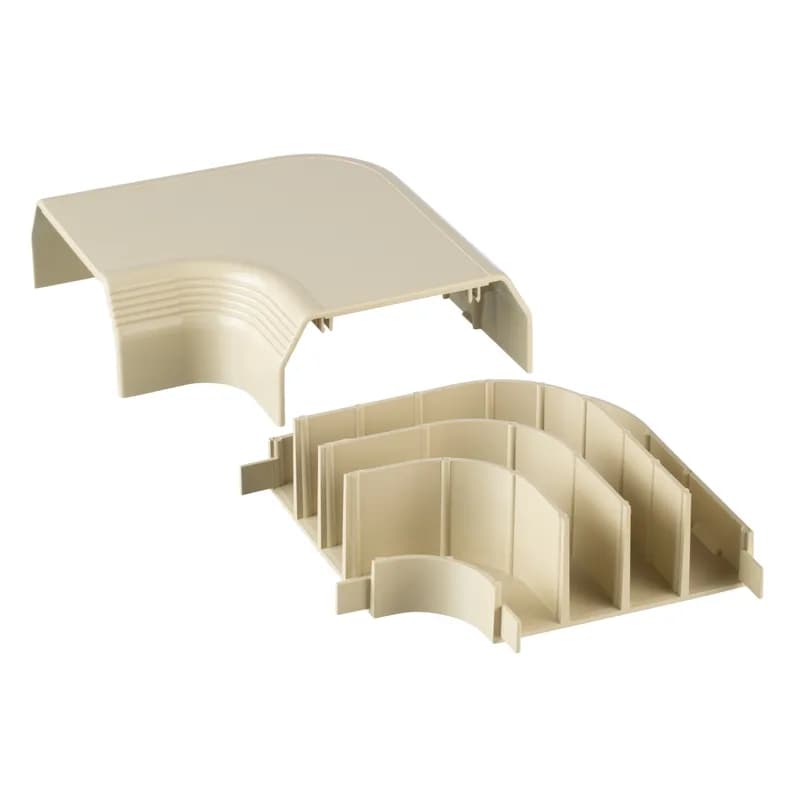

The right angle fitting is used to join sections of T-70 raceway at right angles while maintain proper separation of power and data. It is Electric Ivory.

T70RAEI

The right angle fitting is used to join sections of T-70 raceway at right angles while maintain proper separation of power and data. It is Electric Ivory.
Office furniture corner raceway cover. Available in 6' lengths, Office Gray.

OFCRC70OG6

Office furniture corner raceway cover. Available in 6' lengths, Office Gray.
Single gang two-piece screw together intermediate outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 5.12in L x 3.38in W x 2.27in H (130.2mm x 86.0mm x 57.7mm). Breakouts for 1/2in or 3/4in diameter conduit, International Grey.

JBP1IIG

Single gang two-piece screw together intermediate outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 5.12in L x 3.38in W x 2.27in H (130.2mm x 86.0mm x 57.7mm). Breakouts for 1/2in or 3/4in diameter conduit, International Grey.
Single gang two-piece screw together deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way T-45, LD2P10 (when used with JBD1), or LD profile raceway. 5.19in L x 3.45in W x 2.75in H (131.9mm x 87.7mm x 69.8mm). Breakouts for 1/2in, 3/4in, or 1in diameter conduit, International Grey.

JBP1DIG

Single gang two-piece screw together deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way T-45, LD2P10 (when used with JBD1), or LD profile raceway. 5.19in L x 3.45in W x 2.75in H (131.9mm x 87.7mm x 69.8mm). Breakouts for 1/2in, 3/4in, or 1in diameter conduit, International Grey.
The T-70 Mounting Bracket, Screw-On, for T-70, PVC, International Gray, 0.05'

T70DB-X

The T-70 Mounting Bracket, Screw-On, for T-70, PVC, International Gray, 0.05'
Single gang two-piece screw together extension outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 4.99in L x 3.30in W x 1.00in H (126.7mm x 83.8mm x 25.4mm). Breakouts for 1/2in, 3/4in, or 1in diameter conduit, International Gray.

JBP1EIG

Single gang two-piece screw together extension outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 4.99in L x 3.30in W x 1.00in H (126.7mm x 83.8mm x 25.4mm). Breakouts for 1/2in, 3/4in, or 1in diameter conduit, International Gray.
Backfeed fitting insert. Bend radius insert to be used with T70BF.

T70BFI

Backfeed fitting insert. Bend radius insert to be used with T70BF.
The Backfeed fitting allows cable entry through the back of the T-70 raceway. International Gray.

T70BFIG

The Backfeed fitting allows cable entry through the back of the T-70 raceway. International Gray.
Tee divider insert. Mounts inside TGT tee fitting to maintain channel separation in TG raceway at tee intersections.

TGTD

Tee divider insert. Mounts inside TGT tee fitting to maintain channel separation in TG raceway at tee intersections.
The power rated tee fitting extends cable runs in a tee configuration and is used with LDPH10 raceway. It is International Gray.

TFX10IG-X

The power rated tee fitting extends cable runs in a tee configuration and is used with LDPH10 raceway. It is International Gray.
