Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- Maintains cable bed radius for damage-free routing
- UL and CSA rated 600V; meets UL 5A and CSA C22.2 No. 62.1-03 standards
- FT4 flame rating for safety compliance
- Tamper-resistant with pre-punched mounting holes
- Compatible with T-45 hinged brackets, offset boxes, and surface mount outlets
Specifications
Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
Color | White |
Color* | White |
Cover Type | Entrance End |
Height | 2.86 IN |
Length | 7.39 |
Length | NA In. |
Material | PVC |
Standard | UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant. |
Standard | UL Listed 95425, UL Listed E116129, NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant |
Type | T-45 Fittings & Accessories |
Type | Surface Raceway Entrance Fitting |
Width | 5.71 in |
Width | 145.034 mm |
Package Dimensions (L x W x H) | 9.45 IN x 9.05 IN x 3.6 IN |
Package Weight (Imperial) | 1.02 lbs |
T45EEIW

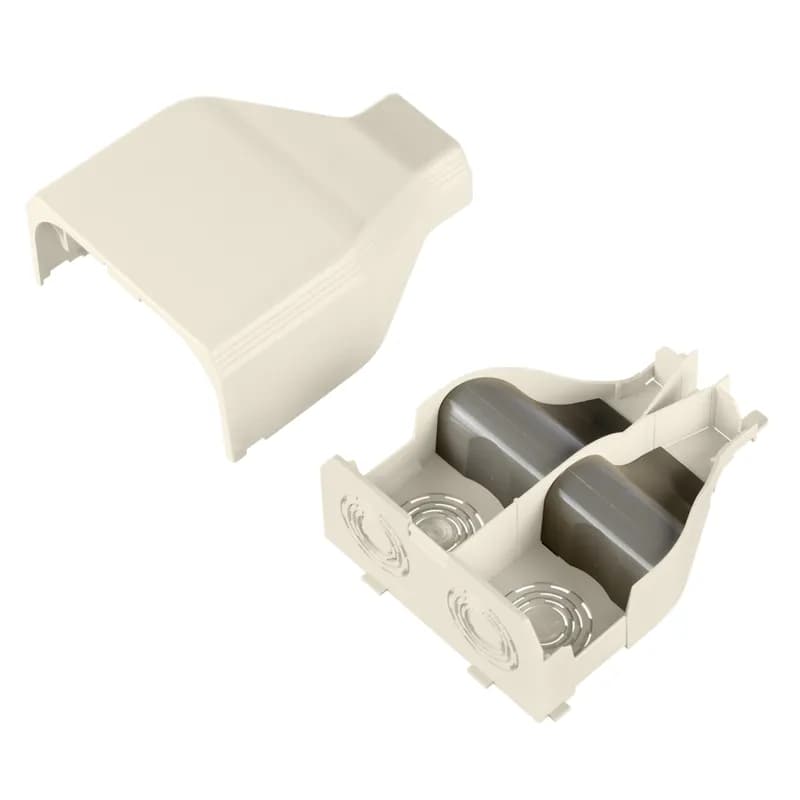

The T-45 Entrance End is designed to maintain bed radius while routing cables into the T-45 raceway. It is Off White
TGICIW
The TG raceway Inside Corner fitting. Used to join sections of TG raceway at inside corners. Fittings adjust from 85 to 135 to adapt to non-square corners. Off-White.TGOCIW
The TG Raceway Outside Corner fitting. Used to join sections of TG raceway at outside corners. Fittings adjust from 85 to 135 to adapt to non-square corners. Off White.
JBP3DWH
The three gang, two-piece screw together, Deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard three gang faceplates. For use with Pan-Way LD, LDPH or T-45 Surface Raceway systems. 7.00in L x 5.19in W x 2.75in H (177.9mm x 131.9mm x 69.8mm). Breakouts for 1/2in, 3/4in and 1in diameter conduit, White.
T70RAWH
The right angle fitting is used to join sections of T-70 raceway at right angles while maintaining proper separation of power and data. It is White.
T45OCWH
The T-45 Outside Corner fitting allows for the routing of raceway around a corner while maintaining proper bend radius. It is White.
T45OCIW
The T-45 Outside Corner fitting allows for the routing of raceway around a corner while maintaining proper bend radius. It is Off White.
RJBX3510IW
The single gang two-piece screw together round outlet box accepts UL/CSA devices not to exceed 10lbs. (5lbs. per CSA). For use with Pan-Way LD profile raceway. Dia. = 5.48"D x 1.14"H (139.2mm x 29.0mm). Breakouts for 3/4" or 1" diameter conduit. It is Off White.Frequently Asked Questions
What is the voltage rating for T45EEWH?
The T45EEWH is rated for 600VAC according to UL-5A and CSA C22.2 No. 62.1-03.
What materials are used in T45EEWH construction?
The T45EEWH is made from impact-resistant rigid PVC material.
What is the minimum bend radius for T45EEWH?
The T45EEWH has a minimum bend radius of 1 inch compliant with TIA/EIA-568-B.
What safety ratings does T45EEWH have?
T45EEWH has a flammability rating of UL94V-0 and FT4.
What types of cables can T45EEWH accommodate?
T45EEWH can route data, voice, video, fiber optic, and power cabling.
What colors are available for T45EEWH?
T45EEWH is available in Off White (IW) and Electrical Ivory (EI).
How is T45EEWH installed?
T45EEWH must be screw secured and installed per the provided instructions.
What is the purpose of divider walls in T45EEWH?
Divider walls are used to form separate channels in the multi-channel raceway.
What types of fittings are available for T45EEWH?
A full complement of fittings is available, including couplers, corners, and end caps.
Can T45EEWH be painted?
Yes, the T45EEWH is field paintable to match walls and décor.
How to Install the T45EEWH Entrance End Fitting
This guide provides step-by-step instructions for installing the T45EEWH Entrance End Fitting for surface raceway applications.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Remove the breakout
Identify the desired breakout size (A, B, C, or D) and carefully remove the corresponding section from the entrance end fitting using appropriate tools.
- Mount the entrance end fitting
Secure the entrance end fitting to the surface raceway using the provided mounting screws. Ensure it is aligned properly and securely fastened.
- Connect power/data cables
Route the power and data cables through the removed breakout and connect them to the appropriate terminals inside the fitting. Use a multimeter to verify proper connections.
