Panduit RGTBSM5G-C - Green thread-forming bonding screw, M5 x 15mm.
Panduit

RGTBSM5G-C

UPC: 074983697601

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit RGTBSM5G-C is a M5 x 15mm thread-forming bonding screw designed for reliable electrical grounding connections. Manufactured in the USA, this steel screw eliminates the need for pre-tapping by forming its own threads during installation, significantly reducing setup time and labor costs. Its distinct green color ensures quick visual identification, aiding in compliance with electrical grounding standards and safety protocols. The RGTBSM5G-C is engineered for long-term bond integrity in industrial enclosures, electrical panels, and various equipment where dependable grounding is critical. Trust Panduit, a recognized leader in electrical infrastructure solutions, for high-quality grounding components that meet stringent industry safety requirements. This screw is ideal for applications requiring a secure and permanent ground connection.
  • M5 x 15mm thread-forming bonding screw
  • Green color for easy visual identification
  • Steel material for durability
  • Forms threads during installation, no pre-tapping required
  • Made in the USA by Panduit

Specifications

Application
Telecom/Data Center
Color
Green
Connection
NA
Finish
Galvanic/electrolytic zinc plated
Material
Metal
Material
Steel
Series
RGTBSM5G
Size
M5 x 15mm
Type
Thread-Forming Bonding Screw
Package Dimensions (L x W x H)
3.7 IN x 3.3 IN x 2.4 IN
Package Weight (Imperial)
1.05 lbs
Bonding nut for threaded M6 rail fasteners.

BGNM6-C

Bonding nut for threaded M6 rail fasteners.
Four pack, green, thread-forming bonding screw, #10-32 x 1/2".

RGTBS1032G

Four pack, green, thread-forming bonding screw, #10-32 x 1/2".
Four pack, green, thread-forming bonding screw, #12-24 x 1/2". ""

RGTBSG

Four pack, green, thread-forming bonding screw, #12-24 x 1/2". ""

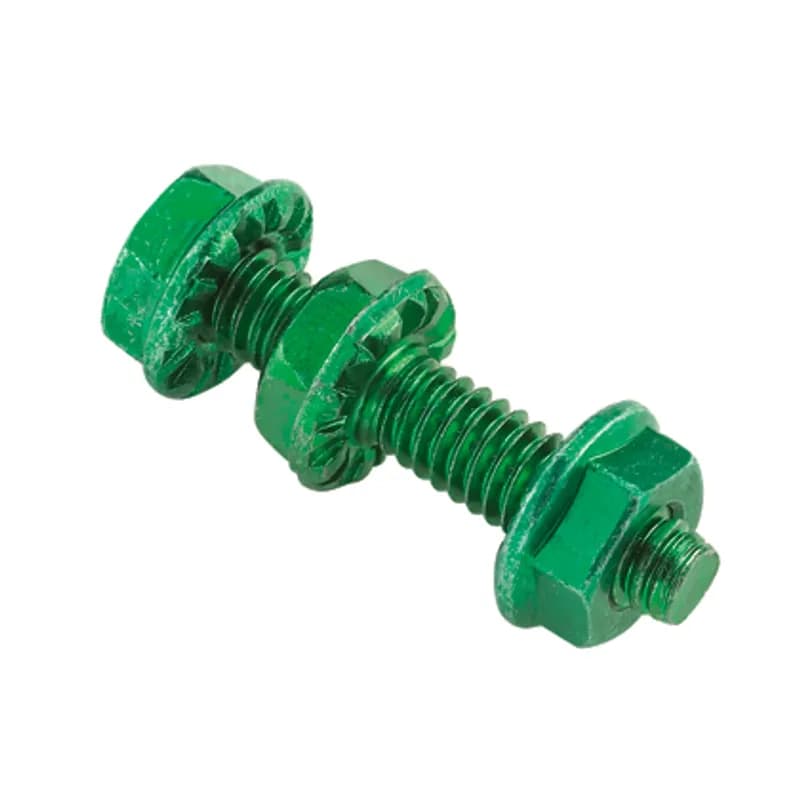

Bonding stud kit for threaded M6 rail fasteners; includes 25 bonding studs and 50 bonding nuts.
