Panduit RGTBS1032G-C - Green thread-forming bonding screw, #10-32 x 1/2".
Panduit

RGTBS1032G-C

UPC: 074983697144

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

The Panduit RGTBS1032G-C is a #10-32 x 1/2" green thread-forming bonding screw designed for reliable electrical grounding and bonding. This screw creates an electrical bond between mounting rails and equipment, conforming to EIA-310 specifications for racks and cabinets. Its thread-forming design bonds to the rack or cabinet by removing paint from holes while minimizing metal shavings, eliminating the need for pre-tapped holes and reducing installation time. The green color provides clear identification for bonding applications, ensuring compliance with safety standards. Constructed from high carbon steel, the RGTBS1032G-C is installed with a Phillips, flat blade, or nut screwdriver. It is ideal for grounding and bonding in metal enclosures, panels, and industrial equipment, including electrical, telecommunications, and data center applications. This screw is suitable for use in UL-listed and NEC-compliant installations, meeting industry requirements for secure, low-resistance connections. The thread-forming design reduces threading errors and simplifies assembly. Compatible with standard #10-32 fasteners and 1/2" mounting depths.
  • Creates EIA-310 compliant electrical bonds between mounting rails and equipment.
  • Thread-forming design bonds to racks/cabinets by removing paint, minimizing shavings.
  • Green color-coding for easy identification of bonding applications.
  • Made from high carbon steel for durability.
  • Installs with Phillips, flat blade, or nut screwdriver.

Specifications

Application
Telecom/Data Center
Color
Green
Length
0.5 in
Length
12.7 mm
Material
Metal
Material
Steel
Mounting Type
Thread-forming
Series
RGTBS
Size
#10-32 x 1/2"
Type
Thread-Forming Bonding Screw
Package Dimensions (L x W x H)
4.85 IN x 3.45 IN x 3.4 IN
Package Weight (Imperial)
1 lbs
Green thread-forming bonding screw, #12-24 x 1/2".

RGTBSG-C

Green thread-forming bonding screw, #12-24 x 1/2".

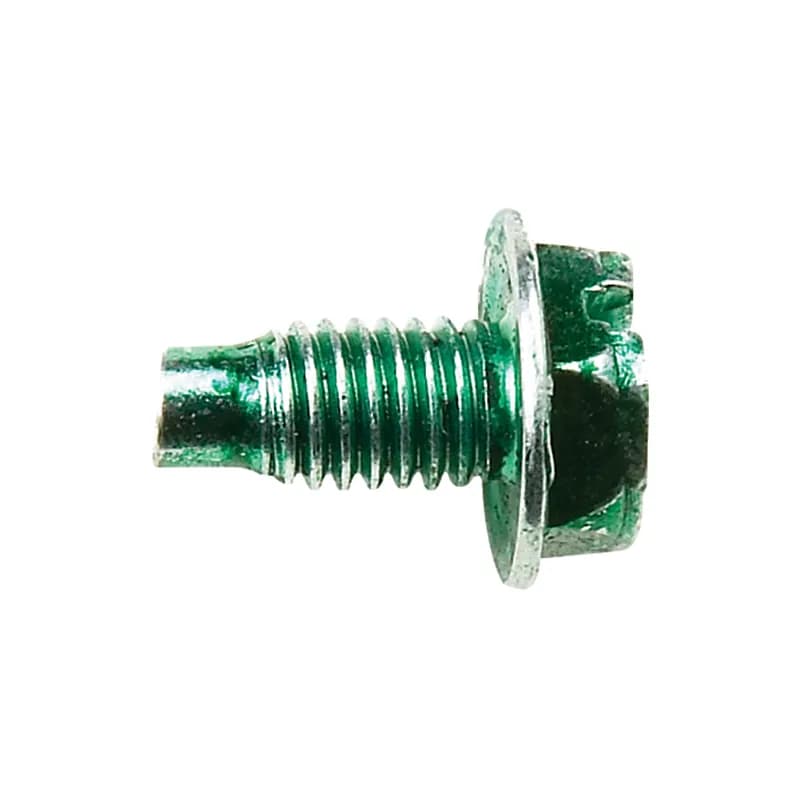

Green Bonding Screw, #10-32 Thread Size, 3/8" Long, Slotted, #2 Philips, Hex Head, #2 Robertson with Tapered Die Point

GSH10-32-38-C

Green Bonding Screw, #10-32 Thread Size, 3/8" Long, Slotted, #2 Philips, Hex Head, #2 Robertson with Tapered Die Point
Green thread-forming bonding screw, M6 x 15mm.

RGTBSM6G-C

Green thread-forming bonding screw, M6 x 15mm.

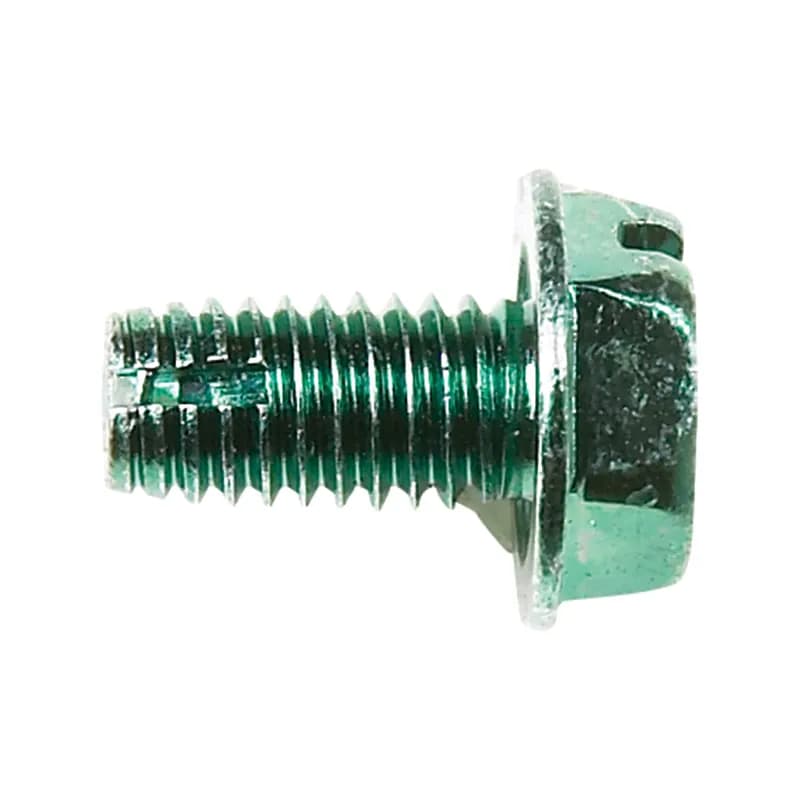

Green Thread Forming Bonding Screw, #10-32 Thread Size, 3/8" Long, Slotted, #2 Philips, Hex Head with Cutting Point

GSC10-32-38-C

Green Thread Forming Bonding Screw, #10-32 Thread Size, 3/8" Long, Slotted, #2 Philips, Hex Head with Cutting Point
Bonding nut for threaded #10-32 rail fasteners.

BGN1032-C

Bonding nut for threaded #10-32 rail fasteners.
The CNBKD High Carbon Steel Bonding Cage Nut Kit creates an electrical bond between the mounting rails and equipment that conforms to EIA-310 specifications for racks and cabinets. The CNBKD Bonding Cage Nut Kit is installed with a Phillips or flat blade screwdriver.

CNBKD

The CNBKD High Carbon Steel Bonding Cage Nut Kit creates an electrical bond between the mounting rails and equipment that conforms to EIA-310 specifications for racks and cabinets. The CNBKD Bonding Cage Nut Kit is installed with a Phillips or flat blade screwdriver.
The CNB4KD High Carbon Steel Bonding Cage Nut Kit creates an electrical bond between the mounting rails and equipment that conforms to EIA-310 specifications for racks and cabinets. The CNB4KD Bonding Cage Nut Kit is installed with a Phillips or flat blade screwdriver.

CNB4KD

The CNB4KD High Carbon Steel Bonding Cage Nut Kit creates an electrical bond between the mounting rails and equipment that conforms to EIA-310 specifications for racks and cabinets. The CNB4KD Bonding Cage Nut Kit is installed with a Phillips or flat blade screwdriver.
Grounding "Figure 6" Style Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 3/0 Str - 250 kcmil (85-120mm2) Tap

FIG6-250-250

Grounding "Figure 6" Style Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 3/0 Str - 250 kcmil (85-120mm2) Tap
Tin Plated Grounding "Figure 6" Style Connector, 1/2 - 5/8 Rod (12.7-15.9mm) Main, Quantity 1 or 2 Wires 6 Sol - 2 Sol (10-35mm2) Tap

FIG6-5/8-26TP

Tin Plated Grounding "Figure 6" Style Connector, 1/2 - 5/8 Rod (12.7-15.9mm) Main, Quantity 1 or 2 Wires 6 Sol - 2 Sol (10-35mm2) Tap

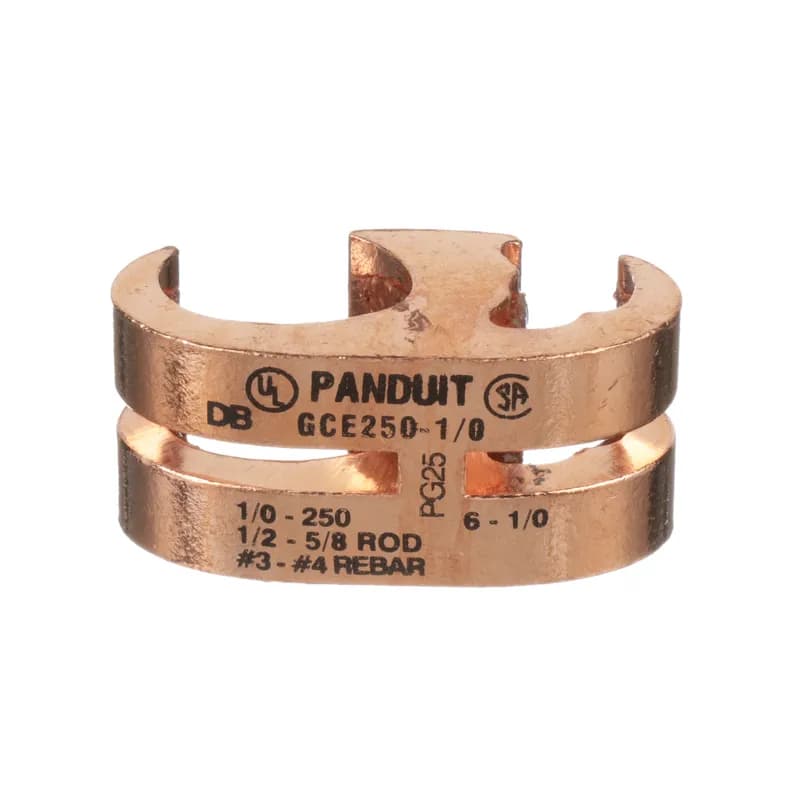

The GCE250-1/0-Q E Style Ground Connector is designed to enhance the crimp process using technology that meets IEEE STD 837-2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA certified for grounding, bonding and suitable for direct burial in earth or concrete.

GCE250-1/0-Q

The GCE250-1/0-Q E Style Ground Connector is designed to enhance the crimp process using technology that meets IEEE STD 837-2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA certified for grounding, bonding and suitable for direct burial in earth or concrete.
The LIAS4-Q Tin Plated Lay in Lug is used to connect a grounding electrode conductor to a galvanized steel or anodized aluminum I-beam, a metal frame or cable tray. The compression screw penetrates surface paint or oxide to create electrical contact. Eliminates need to pre-drill.

LIAS4-Q

The LIAS4-Q Tin Plated Lay in Lug is used to connect a grounding electrode conductor to a galvanized steel or anodized aluminum I-beam, a metal frame or cable tray. The compression screw penetrates surface paint or oxide to create electrical contact. Eliminates need to pre-drill.

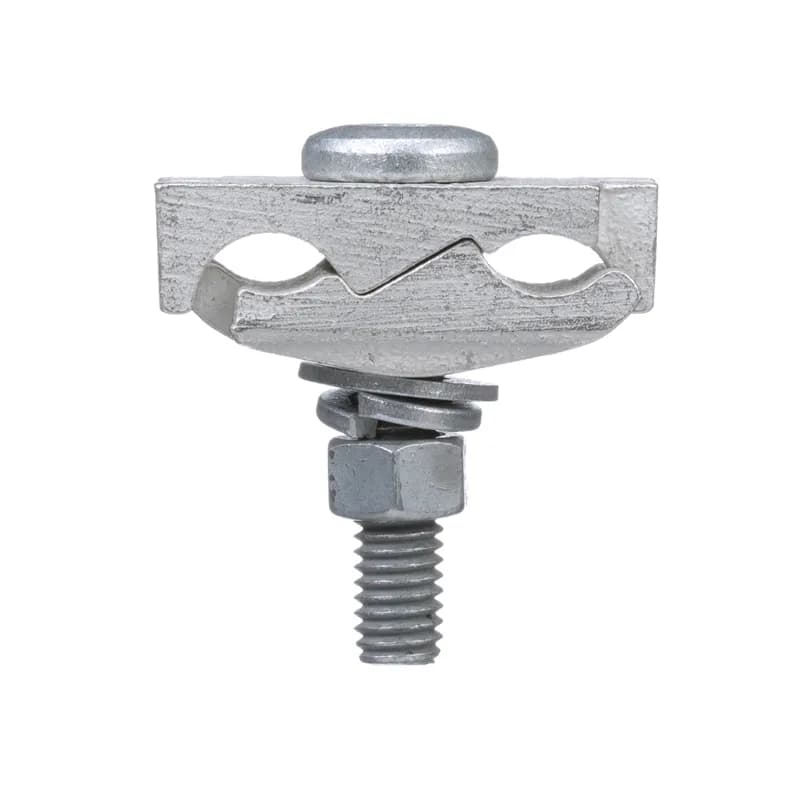

CABLE TRY CLAMP, DIRECT BURIAL-6 SOL-1/0 STR
