Contact for Pricing
Overview
- Secures 2-post racks, 4-post racks, or cabinets to raised floors
- Supports raised floor heights up to 36 inches
- Includes four threaded rods and four anchors for complete installation
- Constructed from durable steel with silver finish for corrosion resistance
- Manufactured in the USA, adheres to UNSPSC code 43223301
Specifications
Color | Silver |
Depth | NA In. |
Height | 39 In. |
Material | Steel |
Mounting Type | Threaded Rod to Sub-floor |
Series | RFA3KIT |
Size | 36" height |
Size | Up to 36" height |
Size | Raised floor height up to 36 inches |
Standard | RoHS Compliant |
Type | Anchor Kit for Raised Floor |
Width | 0.5 In. |
Package Dimensions (L x W x H) | 43 IN x 5 IN x 5 IN |
Package Weight (Imperial) | 5 lbs |
FPS6X88MTG-X

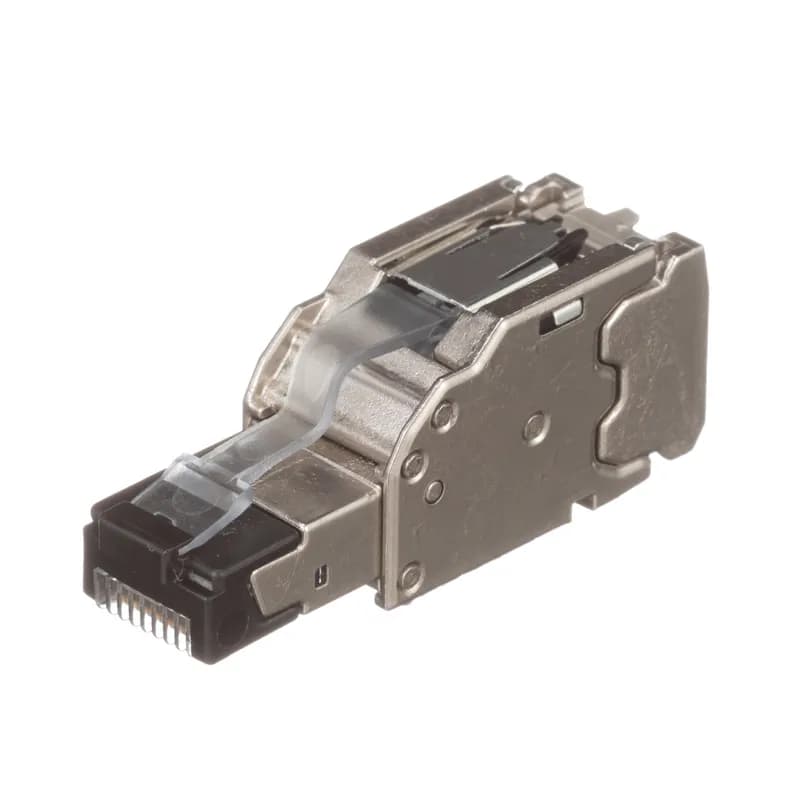

The TX6A Category 6A Shielded RJ45 Field Term Plug terminates 4-pair, 22-26 AWG, 100 ohm, shielded twisted pair cable and is backwards compatible with Cat 6 and 5e. The plug utilizes TG style technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. This plug simplifies installation of common devices such as cameras and wireless access points.
FPE6X88MTG

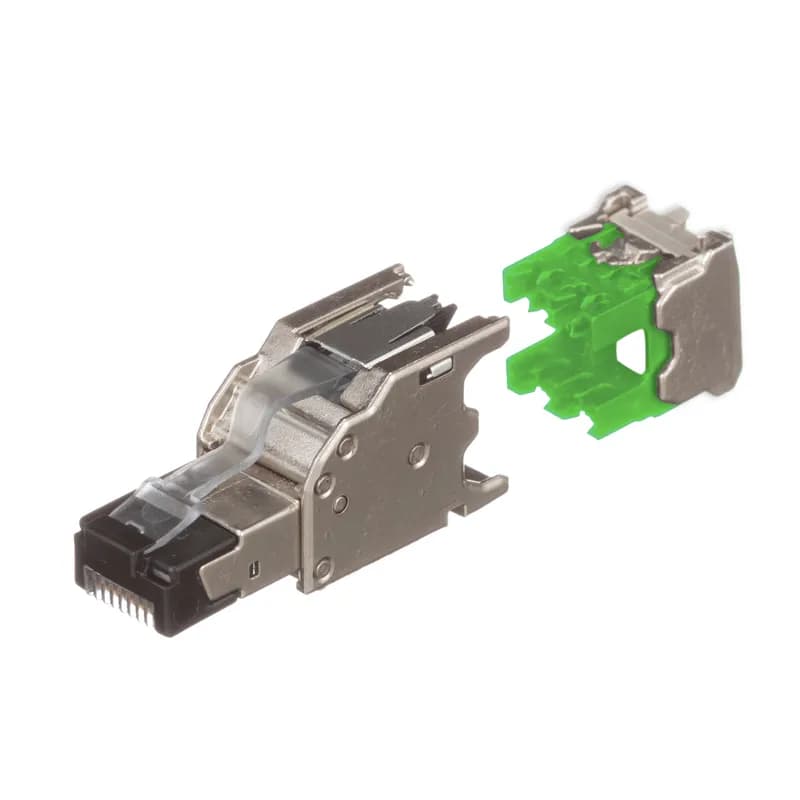

PROFINET Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 2-pair shielded twisted pair cable. Providing Category 5e performance the IndustrialNet PROFINET plug is terminates 2-pair, 22 AWG, 100 ohm shielded twisted pair cable compatible with PROFINET shielded systems.
ICD15T1NTL2M
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male preterminated with a straight connector to an unterminated pigtail. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 2 meters and teal.
ISPS6A88MFA

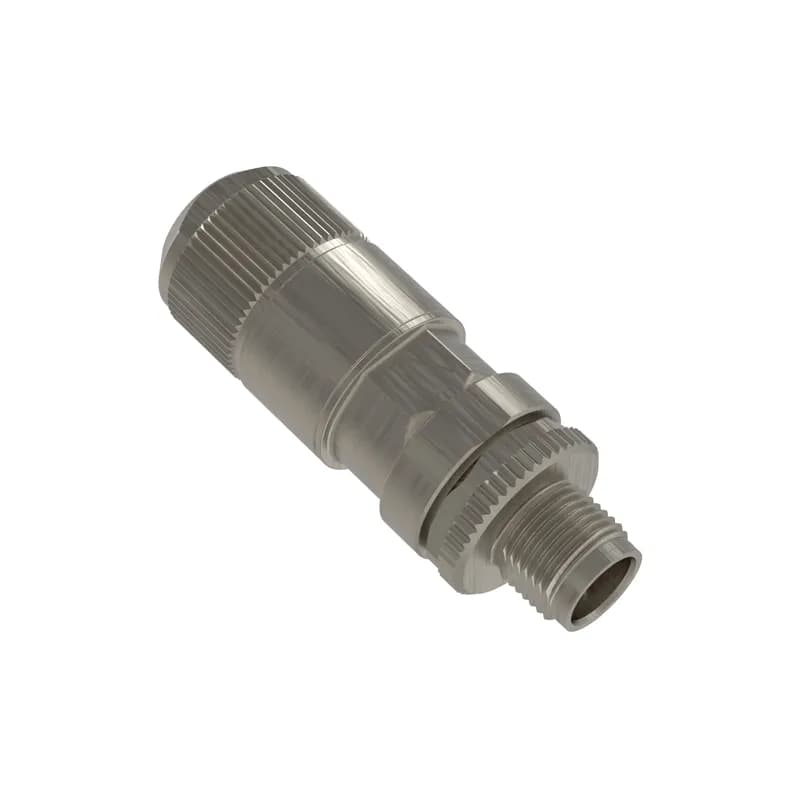

The M12 X-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 6A, UTP or shielded copper cable. This plug is constructed of a zinc cast housing with a 360 shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
ISPS5E44MFA

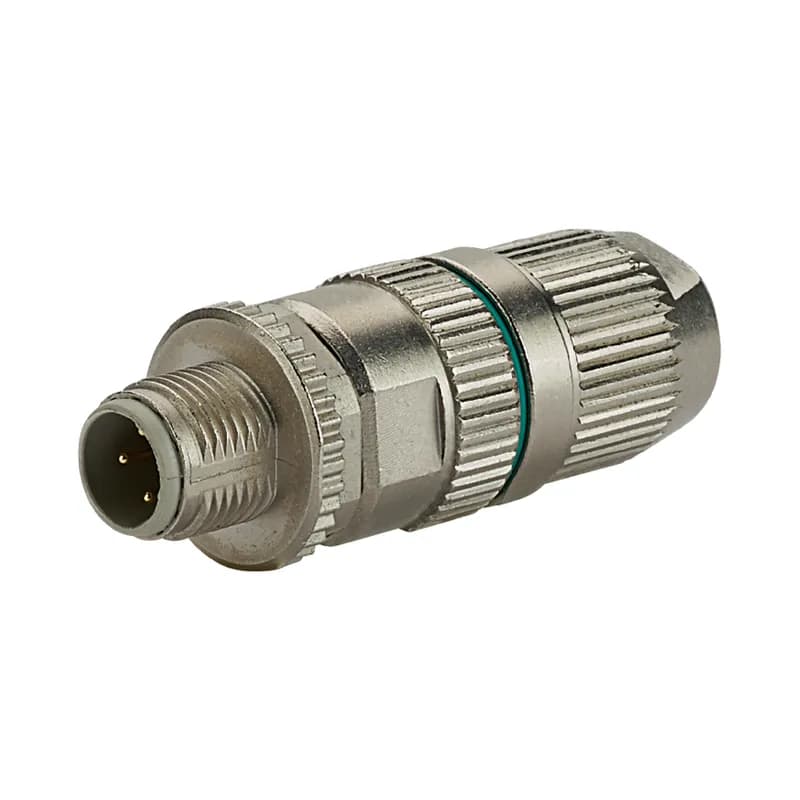

The M12 D-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 5e UTP or shielded copper cable. The terminable plug is constructed of a zinc cast housing with a 360 shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
SP-1LSA22BL

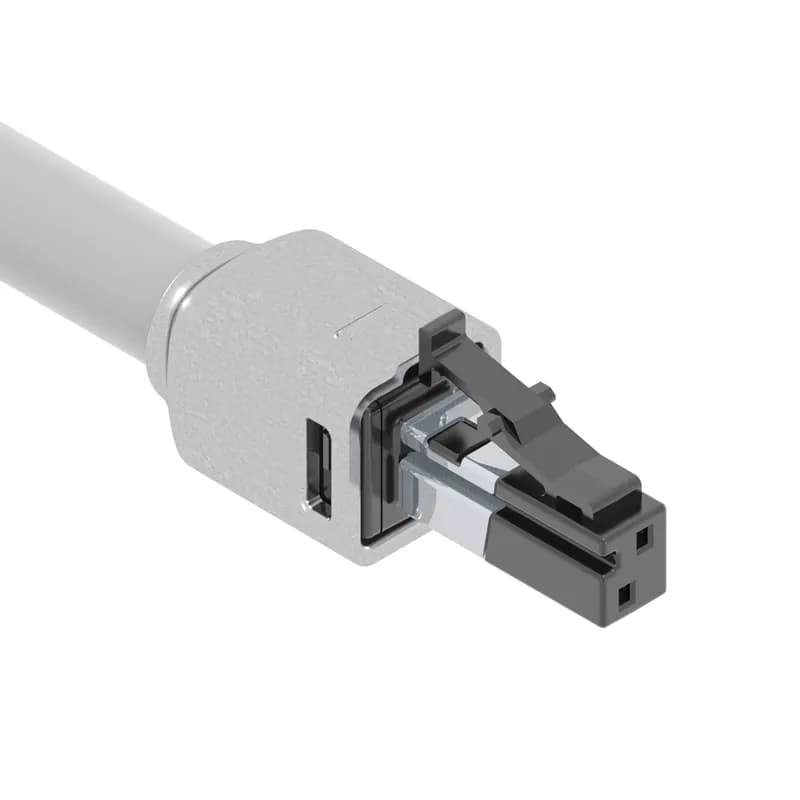

The Single Pair Ethernet Shielded Connector provides simple field-termination to 18 AWG 1-pair shielded copper cable that is compliant with ANSI/TIA-568.5 (draft) SP1 and IEC 61156-13 and -14 (draft) standards. The plug complies with IEC 63171-1 Type 1 standard and provides IP20 performance according to IEC SC48B standard.
KJS6X88TC

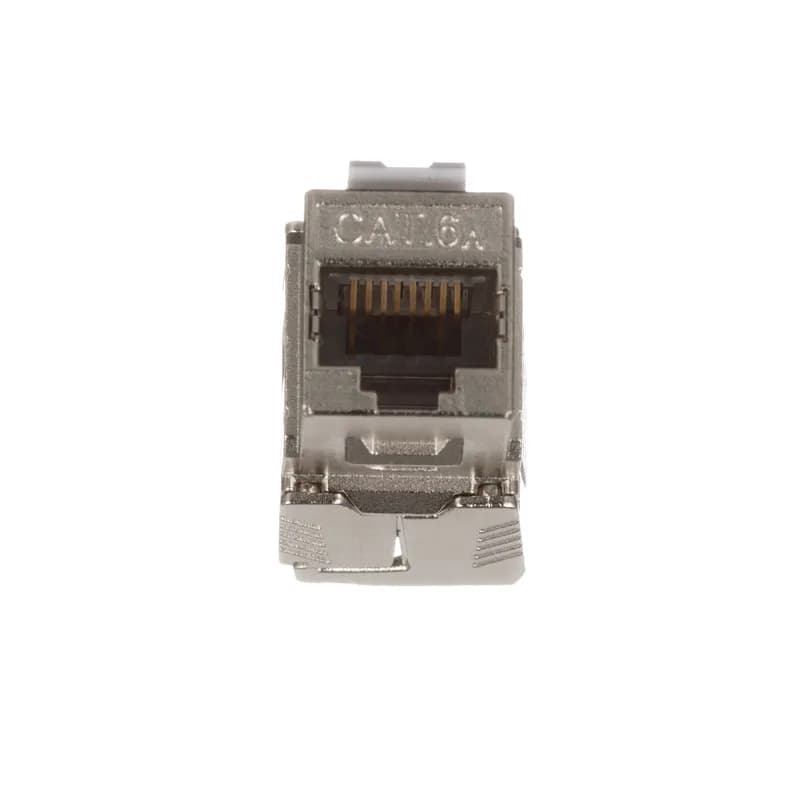

The keystone Cat 6A shielded RJ45 jack module is designed to terminate 4-pair, 22-24 AWG shielded twisted pair cable. Shielded jack modules use a forward motion termination method to optimize performance. The die-cast housing provides a robust design to protect against physical and electromagnetic damage. The jack module is silver.
PWBSPL5EZ
The five-hole splice bar is available in an electro zinc finish. The splice bar reinforces the larger outside radius for horizontal basket tray sweeps (refer to instruction sheet for application guidance). This splice is sold in packs of 12 pieces. Hardware (PWBHKEZ) for securing the bar to the basket wire is sold separately.
PWBPF4X6EZ
The Formed Tee Fitting provides the needed coverage for a 90 degree turn. The formed tee comes complete with a base liner,two brackets and two side liners in order to protect cables from any sharp edges. The tee fitting also comes with two mounting hole locations to be used with threaded rod. This formed tee is intended for a 4" wide basket with a 6" side wall.Frequently Asked Questions
What is the Panduit RFA3KIT?
The Panduit RFA3KIT is a rack anchor kit designed specifically for securing racks to raised floors.
What type of floor is the RFA3KIT used for?
The RFA3KIT is designed for anchoring racks to raised floors.
What are the dimensions of the RSHLF36 shelf?
The RSHLF36 is a 4-Post Rack Shelf with dimensions of 19 in. W x 36 in. D.
Which rack system is the RFA3KIT compatible with?
The RFA3KIT is an accessory for the Panduit Adjustable Depth 4-Post Rack System.
What type of rack is the RSHLF36 shelf designed for?
The RSHLF36 shelf is designed for the Panduit Adjustable Depth 4-Post Rack System, which accepts 19 in. wide EIA equipment.
Is the RSHLF36 shelf available in other depths?
The RSHLF36 shelf is specifically 36 in. deep. Other shelf depths, such as 23 in. and 30 in., are available under different part numbers.
How to Install the Rack Floor Attachment Kit (RFAKIT)
This guide provides step-by-step instructions for securely mounting Panduit's Rack Floor Attachment Kit to a concrete floor or raised floor panel.
Estimated time: 1h
Tools needed:
Drill with 1/2" Dia. Masonry Bit, Hammer
Supplies needed:
1/2-13 Concrete Stud Anchors, 1/2" Flat Washers, 1/2-13 Hex Nuts, Lockwashers, Coupler Nuts, 1/2" x 36" Threaded Rod
- Mark drilling locations
With the rack or cabinet in place, mark the areas on the concrete floor or raised floor panel where the holes will be drilled.
- Drill holes
Temporarily remove the rack or cabinet and drill four holes into the concrete floor using a 1/2" dia. masonry drill bit to a depth of 2 1/2"-2 3/4". If using a raised floor panel, drill four 5/8" holes where the rack or cabinet will rest.
- Insert concrete anchors
Tap the 1/2-13 X 3 3/4" Long Concrete Stud Anchors into all four holes using a hammer. Ensure they are embedded to a depth of 2 1/4".
- Secure the anchors
Realign the rack or cabinet over the anchors and secure it to the floor using the 1/2" Flat Washers and 1/2-13 Hex Nuts.
- Install threaded rods
Thread the 1/2-13 Coupler Nuts 7/8" onto the Stud Anchors. Then, thread the 1/2" x 36" Threaded Rods into the Coupler Nuts until they touch the top of the Stud Anchors.
- Position and secure the raised floor panel
Position a Lockwasher and Hex Nut on each threaded rod so that they are level with the bottom of the raised floor panel. Place the raised floor panel onto the Lockwashers and Hex Nuts.
- Final tightening
Tighten the rack or cabinet to the raised floor panel using the 1/2" Flat Washers, Lockwashers, and 1/2-13 Hex Nuts. Cut any excess threaded rod after the hardware is installed.
