Overview
- Provides additional support for network equipment up to 26.8 inches deep
- Offers versatility for a greater range of applications
- 26 Rack Unit (RU) capacity
- Includes 2 rails for enhanced stability
- White finish for a professional look
Specifications
Color | White |
Depth | 0.8 In. |
Material | Steel |
Mounting | Wall Mount |
Type | Equipment Rail |
Width | 1.3 In. |
Package Dimensions (L x W x H) | 28.2 IN x 28 IN x 26 IN |
Package Weight (Imperial) | 6.75 lbs |
PZWMC12RRWH
The PanZone Wall Mount Cabinet Rear Rail kit provides additional support for network equipment up to 26.8 inches deep, providing versatility for greater range of applications. 12 RU, 2 Rails, White
PZWMC18RRWH
The PanZone Wall Mount Cabinet Rear Rail kit provides additional support for network equipment up to 26.8 inches deep, providing versatility for greater range of applications. 18 RU, 2 Rails, White
NK4FNWH
The NetKey Faceplate accepts four keystone modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate can be identified with an adhesive label and is white.
CF1064WHY

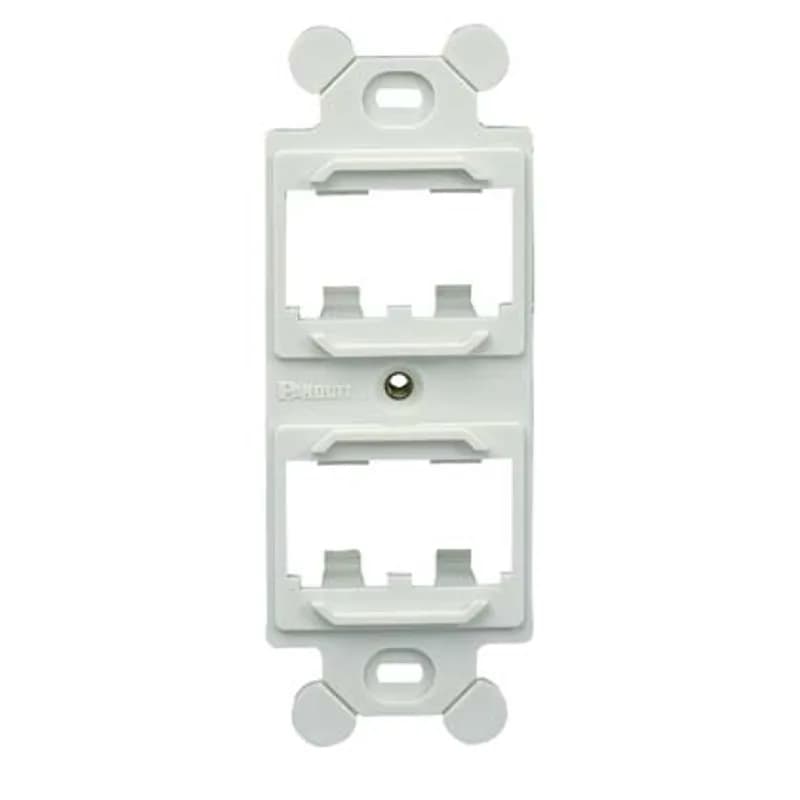

The Mini-Com duplex adapter accepts four Mini-Com modules. The adapter mounts behind a standard 106 NEMA faceplate and is white.
CF1064IWY
The Mini-Com duplex adapter accepts four Mini-Com modules. The adapter mounts behind a standard 106 NEMA faceplate and is off white.
CFG1WH
The Mini-Com rectangular adapter accepts one Mini-Com module. The adapter mounts behind standard GFCI faceplates and is white.
CFG2WH
The Mini-Com rectangular adapter accepts two Mini-Com modules. The adapter mounts behind standard GFCI faceplates and is white.
CFG4WH
The Mini-Com rectangular adapter accepts four Mini-Com modules. The adapter mounts behind standard GFCI faceplates and is white.
CHLS2SWH-X
Two module space, 1/2-size, sloped shuttered insert accepts two Mini-Com Modules. Supplied with label and label cover. Not suitable for use with any audio/video or fiber connector module that protrudes beyond the face of the insert, White.
CHS2SIW-X

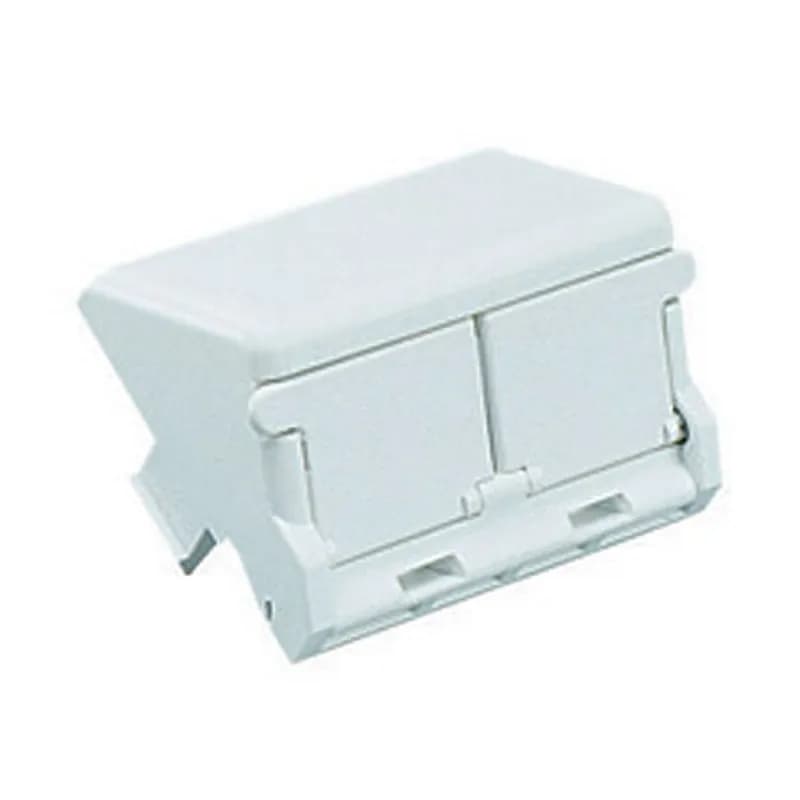

The Mini-Com 1/2 size sloped shuttered module insert, accepts two Mini-Com modules, mounts to faceplate frames and is off white.Frequently Asked Questions
What material is the cabinet constructed from?
The hinged wall mount cabinet is constructed from steel.
What rack unit capacities are available for the cabinets?
The cabinets are capable of managing 9, 12, 18, or 26 rack units of active and passive networking equipment.
How do I access equipment within the cabinet?
The cabinet has hinged doors on both the front and back for complete access to networking equipment.
Does the cabinet include locking side panels?
Yes, the cabinet features removable and locking side panels for security and ease of access.
What is the load rating for the 26 RU cabinet?
The PZWMC26 cabinet has a load rating of 350 lbs.
What are the dimensions of the 26 RU cabinet?
The 26 RU cabinet (PZWMC26) is 48.2 inches high and 25.0 inches wide.
What industry standards does the cabinet meet?
The cabinet meets UL 2416, NEMA 1, and IP20 standards. It accepts 19-inch EIA rack mount panels and equipment.
What items are included in the cabinet packaging?
The packaging includes the cabinet, keys, locks, two adjustable #12-24 threaded rails, a removable vent cover, assembly hardware, and a rear cable routing accessory kit.
How does the cabinet's design aid operation under load?
Its structurally engineered design allows the cabinet to swing freely for easy operation even under maximum load capacity.
How does the thermal management system work?
The thermal management system optimizes airflow for improved heat dissipation from various switches and power supplies.
How to Install the PZWMC12RR Wall Mount Cabinet
This guide provides step-by-step instructions for installing the PZWMC12RR wall mount cabinet, including mounting, wiring, and initial setup.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Wire strippers, Multimeter
Supplies needed:
3/8” lag screws, Washers, Mounting screws, Cable ties
- Prepare the cabinet for installation
Remove the door and side panels from the cabinet for easier handling. Ensure that the rear latches are closed before proceeding.
- Mount the cabinet to the wall
Position the cabinet on the wall and secure it to the studs using four (4) 3/8” lag screws and washers. Ensure that the screws penetrate the wood studs at least 2 7/8” and that they protrude 3/8” from the wall.
- Install the mounting rail
Adjust the depth of the mounting rail as needed by removing the M6 thread forming screws and lockwashers. Move the rail to the desired position and re-install the mounting hardware securely.
- Route and secure cables
Route the cables through the cabinet, ensuring to leave adequate slack to prevent damage. Secure the cables using cable ties at designated points to maintain organization.
- Reinstall the door and side panels
Once all components are installed and cables are secured, reinstall the door and side panels. Ensure that the door swings properly and that the plastic spacer is placed at the bottom of the door hinge.
