Panduit PWMS-H25-M - Panduit PWMS-H25-M winged push barb cable ties are designed for mounting a cable into a pre-drilled hole sized .229" to .255" (5.8mm - 6.5mm) and for maximum panel thickness of .105" (2.7mm). Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For use with miniature, intermediate, and standard cross-section cable ties. They are natural in color and come in packages of 1000.
Panduit

PWMS-H25-M

UPC: 074983583751

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Overview

The Panduit PWMS-H25-M winged push barb cable tie mount (SKU: PWMS-H25-M) is a high-strength Nylon 6.6 solution for securing cable bundles to panels with limited access. Designed for pre-drilled holes sized 0.229" to 0.255" (5.8mm - 6.5mm) and maximum panel thickness of 0.105" (2.7mm), this mount eliminates the need for adhesives or additional hardware. The natural Nylon 6.6 construction delivers superior mechanical strength, heat resistance up to 185°F (85°C), and wear resistance, making it ideal for indoor applications. The winged design ensures constant tension for stable, rattle-free installations while the extended release tab allows for easy reconfiguration during development or servicing. Compatible with miniature, intermediate, and standard cross-section cable ties, the PWMS-H25-M is supplied in packages of 1000 units. The curved tip facilitates faster installation by enabling quick threading from flat surfaces, reducing labor time in production environments. UL Recognized (E136577), CE compliant, and RoHS compliant, this mount meets rigorous industry standards for electrical infrastructure applications. The push barb design provides a secure grip in the pre-drilled hole, preventing accidental dislodging during cable tie insertion or removal. Its natural color ensures compatibility with a wide range of aesthetic requirements while maintaining visibility for inspection purposes. The mount’s stiffness, enhanced by Nylon 6.6, resists deformation under load, ensuring long-term reliability in demanding applications.
  • Mounts to pre-drilled holes sized 0.229"–0.255" (5.8mm–6.5mm)
  • Max panel thickness: 0.105" (2.7mm)
  • Nylon 6.6 material for mechanical strength and heat resistance up to 185°F (85°C)
  • Winged design ensures stable, rattle-free installations
  • Extended release tab allows easy reconfiguration and re-use

Specifications

Application
Indoor;Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible
Cable Size
NA
Cable Type
Cable Tie Mount
Color
Natural
Insulation
Polyamide (PA)
Material Quality
Nylon 6.6
Mount Size
0.25 IN
Mounting
Push Barb
Operating Temperature, Maximum
185 F
Operating Temperature, Maximum
85 C
Operating Temperature, Minimum
185 F
Operating Temperature, Minimum
85 C
Screw Holes
NA
Standard
CE Compliant,UL Recognized: E136577, RoHS Compliant
Type
Cable Tie Mount
Used With Cable Ties*
M, I, S
Package Dimensions (L x W x H)
14.35 IN x 9.2 IN x 9.7 IN
Package Weight (Imperial)
7.5 lbs
StrongHold SSM2S6-3X screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #6 (M3) screw. Suitable for miniature, intermediate, and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are natural in color and come in packages of 30.

SSM2S6-3X

StrongHold SSM2S6-3X screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #6 (M3) screw. Suitable for miniature, intermediate, and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are natural in color and come in packages of 30.
StrongHold SSM2S6-M screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #6 (M3) screw. Suitable for miniature, intermediate, and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are natural in color and come in packages of 1000.

SSM2S6-M

StrongHold SSM2S6-M screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #6 (M3) screw. Suitable for miniature, intermediate, and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are natural in color and come in packages of 1000.
Panduit RAMH-S6-D Right Angle Cable Mounts hold cable bundles away from the sharp edges of bulkheads or cabinet holes. They can also be used to mount cable bundles adjacent to any surface. Mounts are 1 x .75 x 1 (25.4 x 19.1 x 25.4 mm) in size and designed for use in indoor environments. Apply with a #6 (M3) Screw or 1/8 (3.2) rivet. Made of Nylon 6.6, are natural in color and come packages of 500.

RAMH-S6-D

Panduit RAMH-S6-D Right Angle Cable Mounts hold cable bundles away from the sharp edges of bulkheads or cabinet holes. They can also be used to mount cable bundles adjacent to any surface. Mounts are 1 x .75 x 1 (25.4 x 19.1 x 25.4 mm) in size and designed for use in indoor environments. Apply with a #6 (M3) Screw or 1/8 (3.2) rivet. Made of Nylon 6.6, are natural in color and come packages of 500.
The epoxy applied cable tie mount in natural color is affixed with EMA epoxy adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.

EMS-A-C

The epoxy applied cable tie mount in natural color is affixed with EMA epoxy adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.
The right angle cable tie mount in natural color is applied with a #10 (M5) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 500.

RAMH-S10-D

The right angle cable tie mount in natural color is applied with a #10 (M5) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 500.
The cable tie plate in natural color is applied with #10 (M5) screws. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It is used with miniature, intermediate, and standard cable ties. It comes in packages of 1000.

TP2-M

The cable tie plate in natural color is applied with #10 (M5) screws. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It is used with miniature, intermediate, and standard cable ties. It comes in packages of 1000.
The cable tie mount is natural color and is applied with a #10 (M5) screw. It is 0.91" (23.1 mm) long and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, Super-Grip standard, and Super-Grip light-heavy adhesive backed cable tie mounts. It comes in packages of 100.

SGTM3S10-C

The cable tie mount is natural color and is applied with a #10 (M5) screw. It is 0.91" (23.1 mm) long and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, Super-Grip standard, and Super-Grip light-heavy adhesive backed cable tie mounts. It comes in packages of 100.

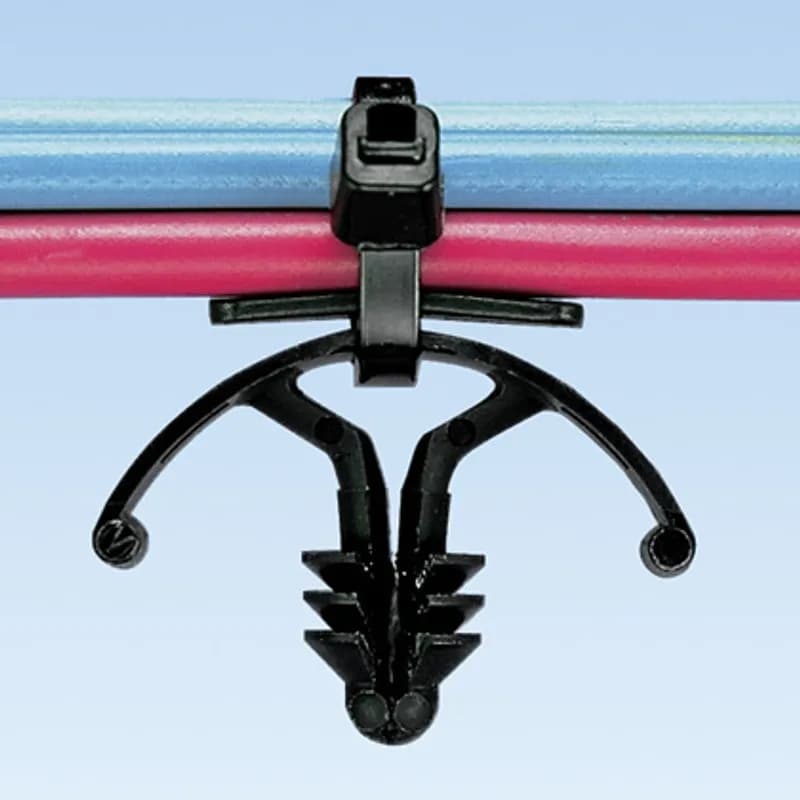

The harness cable tie mount in natural color is applied with a fir tree push barb. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.
