Contact for Pricing
Overview
- Five-hole splice bar for basket tray sweeps
- Electro zinc finish for corrosion resistance
- Reinforces larger outside radius on horizontal sweeps
- Sold in packs of 12 pieces
- Hardware (PWBHKEZ) sold separately
Specifications
Application | Data Centers, Connected Buildings, and Industrial Automation Applications for all Panduit Wire Basket Applications |
Color | Silver |
Material | Steel |
Type | Wire Basket |
Width | NA In. |
Package Dimensions (L x W x H) | 9.875 IN x 6 IN x 3.875 IN |
Package Weight (Imperial) | 1.73 lbs |
CFPL4S-2GY
The Mini-Com Stainless Steel Faceplate accepts four Mini-Com Modules. The faceplate is double gang and mounts to a NEMA standard double gang opening. The faceplate includes a label pocket for easy identification and is made of impact resistant material to support installations in high traffic areas.

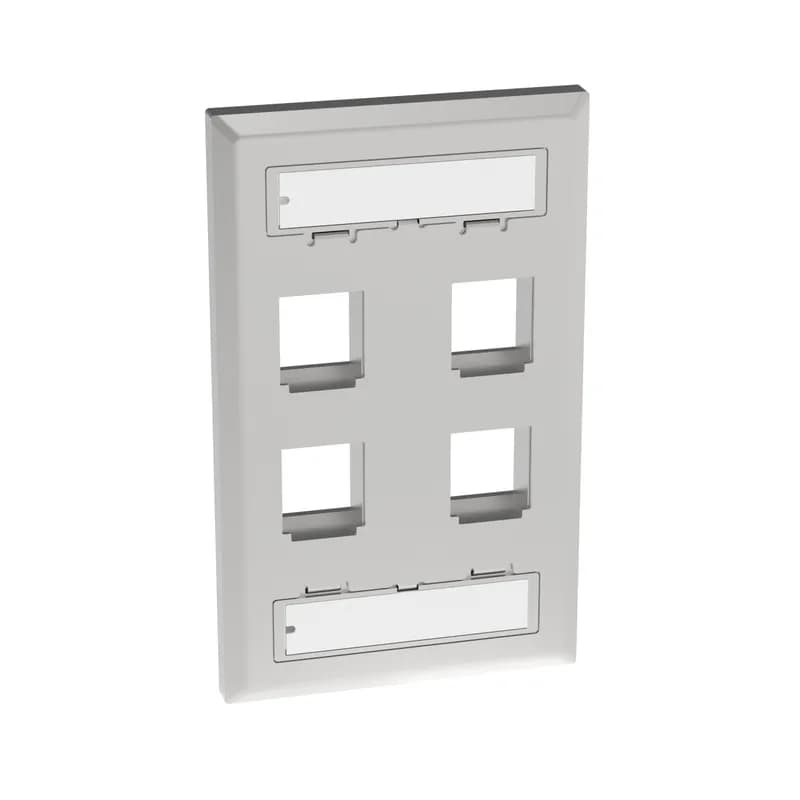

NKF4S
The NetKey Faceplate accepts four keystone modules. The faceplate is single gang, includes label and label cover, and is stainless steel.
PWBPF4X6EZ
The Formed Tee Fitting provides the needed coverage for a 90 degree turn. The formed tee comes complete with a base liner,two brackets and two side liners in order to protect cables from any sharp edges. The tee fitting also comes with two mounting hole locations to be used with threaded rod. This formed tee is intended for a 4" wide basket with a 6" side wall.
PWBPF2X4EZ
The Formed Tee Fitting provides the needed coverage for a 90 degree turn. The formed tee comes complete with a base liner,two brackets and two side liners in order to protect cables from any sharp edges. The tee fitting also comes with two mounting hole locations to be used with threaded rod. This formed tee is intended for a 4" wide basket with a 2" side wall.
PWBSPL2EZ
The two-hole splice bar is available in an electro zinc finish. The splice bar is designed for forming the smaller inside radius for horizontal basket tray sweeps (refer to instruction sheet for application guidance). This splice is sold in packs of 12 pieces. Hardware (PWBHKEZ) for securing the bar to the basket wire is sold separately.
CFPL2SU
Mini-Com Stainless Steel Faceplate accepts two Mini-Com modules. The faceplate is single gang and mounts to NEMA standard single gang opening. Includes a label pocket for easy identification and is made of impact resistant material to support installations in high traffic areas. Faceplate is TAA compliant.

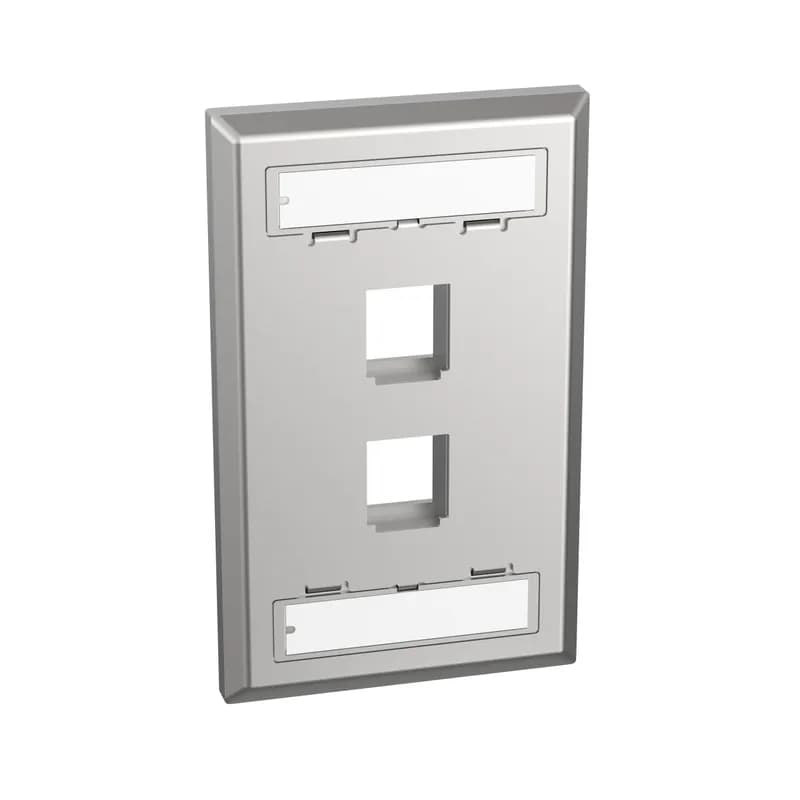

NKF2S
The NetKey Faceplate accepts two keystone modules. The faceplate is single gang, includes label and label cover, and is stainless steel.
SP-1LSA22BL
The Single Pair Ethernet Shielded Connector provides simple field-termination to 18 AWG 1-pair shielded copper cable that is compliant with ANSI/TIA-568.5 (draft) SP1 and IEC 61156-13 and -14 (draft) standards. The plug complies with IEC 63171-1 Type 1 standard and provides IP20 performance according to IEC SC48B standard.

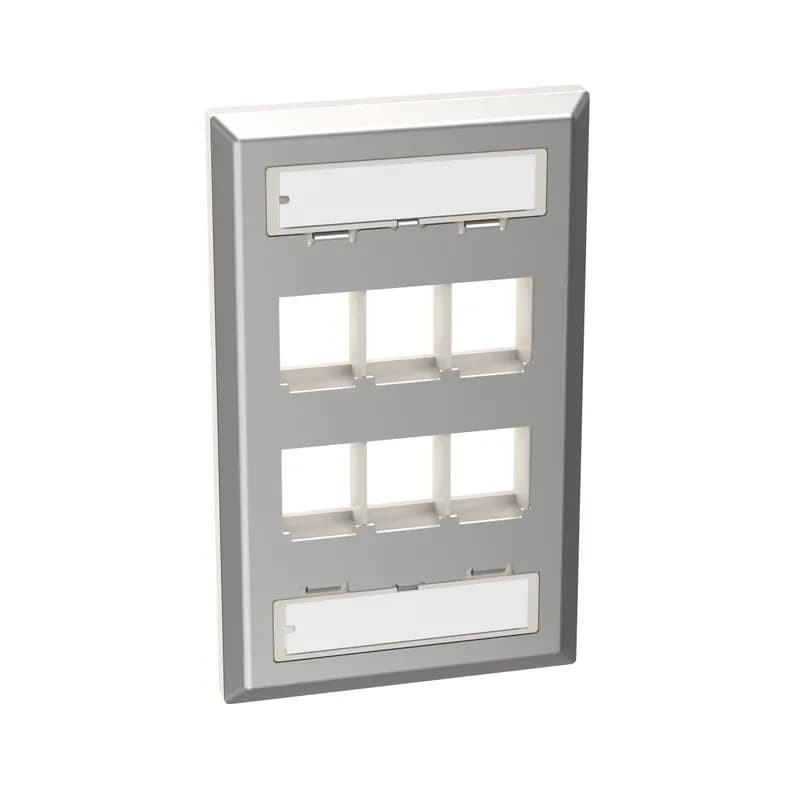

NKF6S
The NetKey Faceplate accepts six keystone modules. The faceplate is single gang, includes label and label cover, and is stainless steel.
CFP6SY
The Mini-Com Stainless Steel Faceplate accepts six Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate can be identified with an adhesive label and is made of impact resistant material to support installations in high traffic areas.
CFPL4SY
The Mini-Com Stainless Steel Faceplate accepts four Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a label pocket for easy identification and is made of impact resistant material to support installations in high traffic areas.Frequently Asked Questions
What safety and compliance approvals does the system have?
It is UL Listed as an Equipment Grounding Conductor per NFPA 70 and NEMA VE1. Black/White finishes comply with ASTM 510, Electro Zinc with ASTM B633 SC1, Type III.
What are the available dimensions for the wire basket sections?
Pathway sections come in widths from 4 to 36 inches. Baskets are 118.33 inches long and have 2, 4, or 6 inch sidewall heights.
What components are included in the Wire Basket System?
The system includes pathway sections, splice connectors, cable exits, waterfalls, mounting brackets, and accessories. It routes copper, fiber optic, or power cables.
What are the available dimensions for the wire basket sections?
Pathway sections come in widths from 4 to 36 inches. Baskets are 118.33 inches long and have 2, 4, or 6 inch sidewall heights.
What safety and compliance approvals does the system have?
It is UL Listed as an Equipment Grounding Conductor per NFPA 70 and NEMA VE1. Black/White finishes comply with ASTM 510, Electro Zinc with ASTM B633 SC1, Type III.
What components are included in the Wire Basket System?
The system includes pathway sections, splice connectors, cable exits, waterfalls, mounting brackets, and accessories. It routes copper, fiber optic, or power cables.
What are the available dimensions for the wire basket sections?
Pathway sections come in widths from 4 to 36 inches. Baskets are 118.33 inches long and have 2, 4, or 6 inch sidewall heights.
What safety and compliance approvals does the system have?
It is UL Listed as an Equipment Grounding Conductor per NFPA 70 and NEMA VE1. Black/White finishes comply with ASTM 510, Electro Zinc with ASTM B633 SC1, Type III.
What components are included in the Wire Basket System?
The system includes pathway sections, splice connectors, cable exits, waterfalls, mounting brackets, and accessories. It routes copper, fiber optic, or power cables.
Where is the wire basket system typically used?
It is used in data centers, connected buildings, and industrial environments to route, manage, and protect copper, fiber optic, and power cables.
