Panduit PWB6X24WH - The 6" height x 24" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
Panduit

PWB6X24WH

UPC: 613056801295

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 12

Multiplier: 2

*Contact for lower quantities*

Overview

The Panduit PWB6X24WH is a 6-inch high by 24-inch wide wire basket tray, finished in a durable white powder coating. Manufactured in the USA, this component is part of Panduit's Wire Basket Cable Tray Routing System, designed for robust support, routing, and protection of copper communication cables, fiber optic distribution cables, and power and control cables. Its open wire basket design promotes excellent airflow, facilitating heat dissipation critical for the performance and longevity of bundled electronic equipment. This design also significantly minimizes the need to cut wires during installation or modification, thereby reducing the risk of cable damage and simplifying maintenance procedures. The PWB6X24WH offers high cable fill capacity and is compatible with a broad range of Panduit supports and mounting hardware, enabling flexible overhead, underfloor, or wall-mounted installations. It is suitable for demanding applications within data centers, commercial construction, and industrial infrastructure. The system is modular, allowing for fast field configuration without special tools or complex fabrication, and integrates with wire management accessories for routing, separation, and protection of power and data cables. The white powder-coated finish maintains structural integrity in demanding indoor and light industrial environments. For design tools and the complete offering, visit panduit.com/wire-basket.
  • 6" height x 24" width pathway section
  • Durable white powder-coated finish
  • Open wire design promotes airflow and heat dissipation
  • Minimizes wire cutting, reducing cable damage risk
  • Modular design for flexible field configuration

Specifications

Application
Data Centers, Connected Buildings, and Industrial Automation Applications for all Panduit Wire Basket Applications
Finish
Powder Coat
Height
NA IN
Height
6.43 in
Height
163.322 mm
Length
NA in
Length
118.33 in
Length
3005.582 mm
Material
Steel
Standard
UL Classified for their Suitability for use as Equipment Grounding Conductor in Accordance with Sections 392.3(C) and 392.7(B) of the NEC
Type
Wire Basket
Width
NA in
Width
24.22 in
Width
615.188 mm
Package Dimensions (L x W x H)
120 IN x 24 IN x 6 IN
Package Weight (Imperial)
29.4 lbs
The 2" height x 24" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB2X24BL

The 2" height x 24" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 2" height x 4" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB2X4WH

The 2" height x 4" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 2" height x 24" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB2X24WH

The 2" height x 24" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

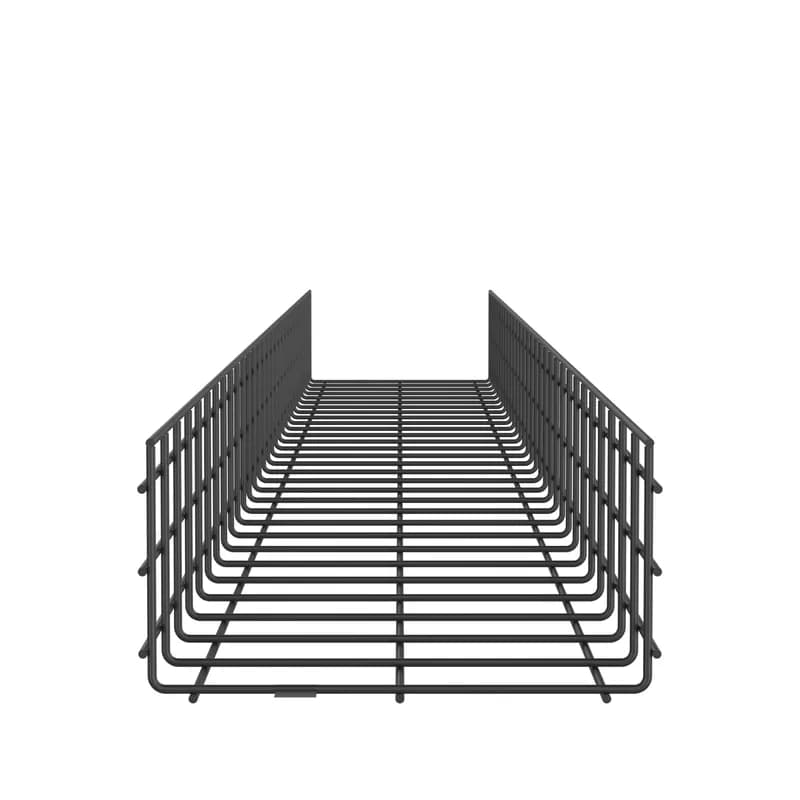

The 6" height x 12" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB6X12BL

The 6" height x 12" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 6" height x 24" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB6X24BL

The 6" height x 24" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 4" height x 8" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB4X8BL

The 4" height x 8" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 2" height x 8" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB2X8WH

The 2" height x 8" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 6" height x 6" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB6X6WH

The 6" height x 6" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 6" height x 30" width wire basket is available in a white powedered coated finish. It is offered in 10 foot length. The wire basket is used to safely, efficiently and aesthetically route cables in data centers, server/telecom rooms, or office work spaces. Our design requires less cutting and installation time due to larger grid openings.

PWB6X30WH

The 6" height x 30" width wire basket is available in a white powedered coated finish. It is offered in 10 foot length. The wire basket is used to safely, efficiently and aesthetically route cables in data centers, server/telecom rooms, or office work spaces. Our design requires less cutting and installation time due to larger grid openings.

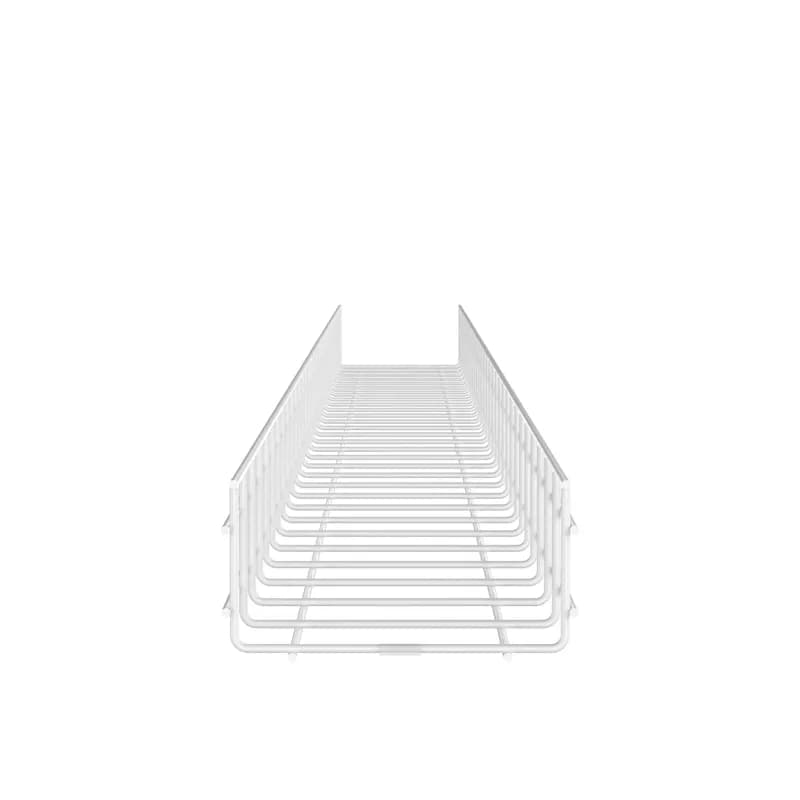

The 4" height x 8" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB4X8WH

The 4" height x 8" width wire basket is available in a white powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

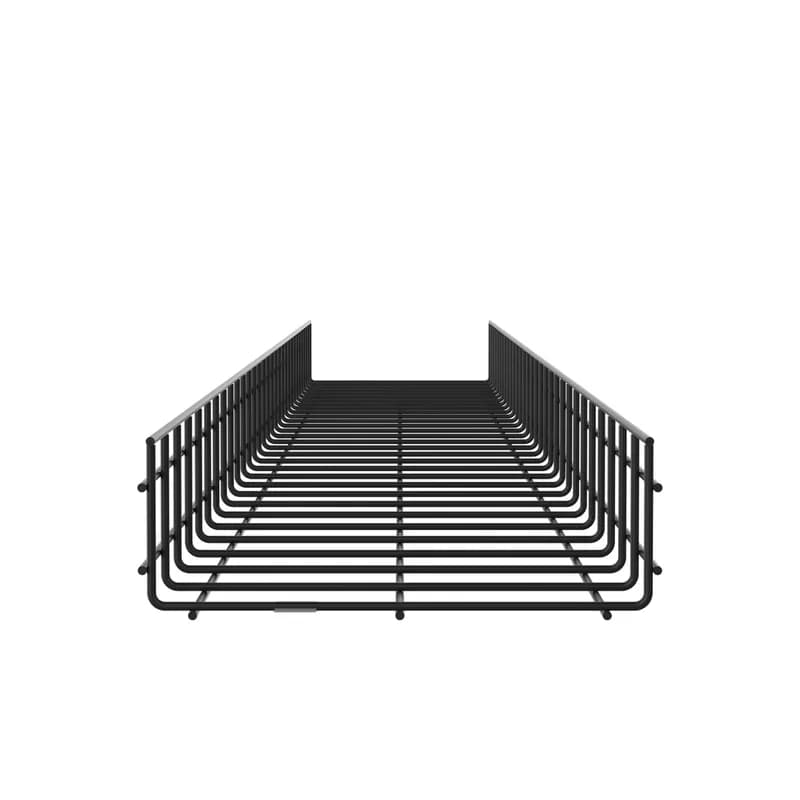

The 4" height x 12" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB4X12BL

The 4" height x 12" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.
The 6" height x 6" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

PWB6X6BL

The 6" height x 6" width wire basket is available in a black powdered coated finish. The wire basket can be used in many applications to route cable to the needed location. It s design enable users to have to cut less wires on a basket with improves risk mitigation.

Frequently Asked Questions

What components are included in the Wire Basket system?

The system includes pathway sections, splice connectors, cable exits, waterfalls, mounting brackets, and accessories for routing copper, fiber optic, or power cables.

What are the available dimensions for the wire baskets?

Baskets come in widths of 4, 6, 8, 12, 18, 24, 30, or 36 inches. They are 118.33 inches long with 2, 4, or 6 inch sidewall heights.

What materials are used for the wire baskets?

Black and white baskets are powder-coated steel wire. Electro zinc and pre-galvanized baskets are steel wire with respective platings.

What safety approvals does the cable tray system have?

It is UL Listed as an Equipment Grounding Conductor per NFPA 70 and NEMA VE1. Black/White finishes comply with ASTM 510, Electro Zinc with ASTM B633 SC1, Type III.

What are the primary applications for this system?

It is designed for data centers, connected buildings, and industrial environments to route, manage, and protect copper data, fiber optic, and power cables.

What mounting options are available for the system?

Trapeze, cantilever, and wall mount brackets are available to support the Wire Basket system.

What color finishes are available for the components?

Baskets, accessories, and components are available in black, electro zinc, pre-galvanized, or white finishes.

What are the benefits of the durable construction?

The durable, lightweight construction uses larger wire gauges, providing a greater strength-to-weight ratio and better safe working loads.

How does the grid pattern improve cable management?

The larger wire mesh grid pattern offers greater bottom cable exit capacity, allowing more cables to pass through without cuts, reducing installation time.

What is the purpose of the T-Welded Safety Edge?

The T-Welded Safety Edge meets industry safety specifications, promoting installer safety and providing simultaneous cable protection.

How to Install the PWB6X24WH Wire Basket

This guide provides step-by-step instructions for installing the PWB6X24WH wire basket securely and safely.

Estimated time: 30m

Tools needed:

Screwdriver, Wire strippers

Supplies needed:

Mounting screws, Grounding tape

  1. Prepare the installation area

    Clear the installation area of any debris and ensure that the surface is clean and level for mounting the wire basket.

  2. Mount the wire basket

    Secure the PWB6X24WH wire basket to the wall or mounting surface using the provided mounting screws. Ensure it is level and firmly attached.

  3. Connect grounding if necessary

    If grounding is desired, remove the tape for grounding connection and attach the grounding wire securely to the designated grounding point on the wire basket.
