Panduit PV6-38RX-X - Ring Terminal, large wire, 6 AWG, 3/8" stud size, vinyl expanded insulation, standard package.
Panduit

PV6-38RX-X

UPC: 074983124541

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The Panduit PV6-38RX-X is a vinyl-insulated ring terminal designed for large wire applications. This terminal accommodates 6 AWG wire, providing a secure and reliable connection point for electrical systems. It features a 3/8" stud size, ensuring compatibility with standard electrical hardware. The expanded vinyl insulation offers protection and helps prevent short circuits, while also facilitating easier wire insertion. Manufactured by Panduit, a recognized leader in electrical infrastructure solutions, this terminal is built for dependable performance in various industrial settings. The PV6-38RX-X is supplied in a standard package, making it convenient for inventory management and immediate use in projects requiring robust wire termination. Its construction prioritizes electrical safety and long-term operational integrity, making it a practical choice for electricians and maintenance professionals. The product's origin is the United States, underscoring a commitment to quality manufacturing standards. This ring terminal is an essential component for creating secure electrical connections in demanding environments where wire size and stud compatibility are critical factors. Its specific design for 6 AWG wire and 3/8" studs addresses common requirements in power distribution and equipment wiring.
  • Designed for 6 AWG wire
  • Features a 3/8" stud size
  • Vinyl expanded insulation for protection
  • Manufactured by Panduit
  • Standard package for convenience

Specifications

Color
Blue
Connection
Expanded Entry
Connection Type
Ring Terminal
Enclosure
Ring shape
Finish
Tin-Plated
Insulation
Vinyl
Material
Copper
Material
Vinyl
Mounting
0.43 In.
Mounting Type
3/8" Stud
Size
3/8" in
Size
6 AWG
Standard
UL Listed 587H E52164
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Loose Piece Ring Terminal
Voltage Rating
600 V
Wire Size
#6 AWG
Package Dimensions (L x W x H)
4 IN x 2 IN x 2 IN
Package Weight (Imperial)
0.175 lbs
Ring Terminal, large wire, 6 AWG, 5/16" stud size, vinyl expanded insulation, standard package.

PV6-56RX-X

Ring Terminal, large wire, 6 AWG, 5/16" stud size, vinyl expanded insulation, standard package.
Ring Terminal, large wire, 6 AWG, #8 stud size, vinyl expanded insulation, standard package.

PV6-8RX-E

Ring Terminal, large wire, 6 AWG, #8 stud size, vinyl expanded insulation, standard package.

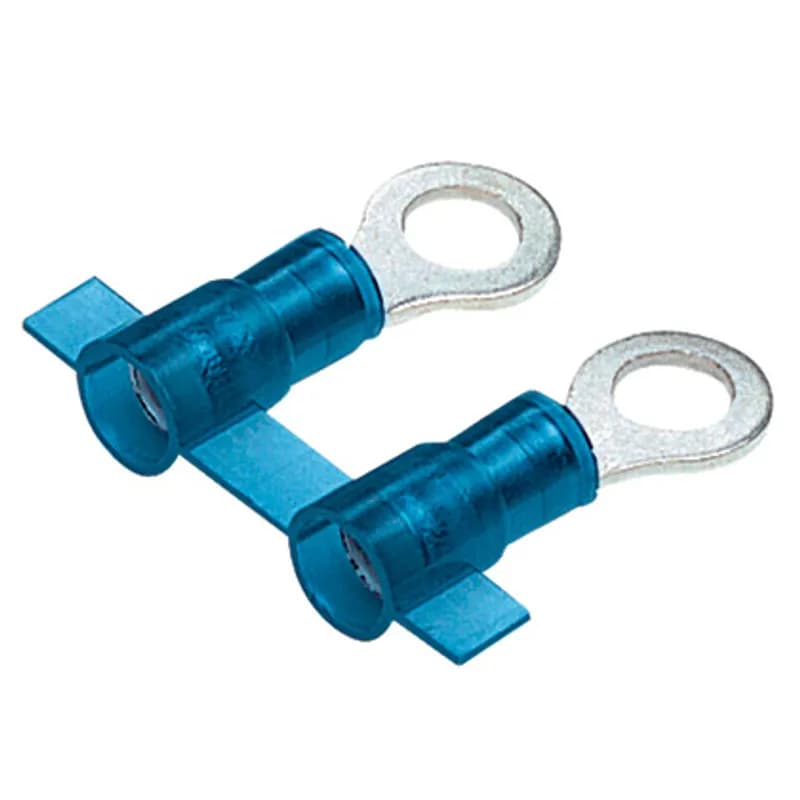

Reel-Fed Ring Terminal, 1.5 2.5mm wire range, M3 stud size, nylon barrel insulated, funnel entry.
