Panduit PV22-4R-CYY - Ring Terminal, 26 22 AWG, #4 stud size, vinyl insulated, funnel entry, standard package.
Panduit

PV22-4R-CYY

UPC: 613056757981

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 500

Multiplier: 100

*Contact for lower quantities*

Overview

Panduit PV22-4R-CYY vinyl insulated ring terminal is engineered for secure, high-reliability wire terminations in industrial and electrical applications. Designed for 26 to 22 AWG solid or stranded copper wire, this terminal features a #4 stud size for compatibility with standard hardware. The vinyl insulation, rated UL 94V-0 with a maximum temperature of 221°F (105°C), provides flame resistance and protection against abrasion. The funnel entry design simplifies wire insertion, while the internal barrel serrations ensure optimal wire contact and maximum tensile strength. The brazed seam construction prevents barrel splitting during crimping, and the ring tongue design delivers a secure connection in high-vibration environments. UL and CSA rated up to 600V per UL 486A/B, this terminal is ideal for panel boards, control systems, and machinery wiring where durability and performance are critical. Supplied in standard packaging for easy inventory management.
  • 26 to 22 AWG wire range for versatile applications
  • #4 stud size for standard hardware compatibility
  • Vinyl insulation rated UL 94V-0, max 221°F (105°C)
  • Funnel entry design for easy wire insertion
  • UL and CSA rated up to 600V per UL 486A/B

Specifications

Connection Type
Ring Terminal
Finish
Tinned
Insulation
Vinyl
Material
Copper
Material
Vinyl
Mounting
3/16 In.
Series
PV22
Size
#4
Size
#4 stud size
Type
Ring Terminal
Wire Size
22 AWG
Package Dimensions (L x W x H)
4.95 IN x 3.4 IN x 0.45 IN
Package Weight (Imperial)
0.1 lbs
Ring Terminal, 26 22 AWG, #10 stud size, vinyl insulated, funnel entry, bulk package.

PV22-10R-MYY

Ring Terminal, 26 22 AWG, #10 stud size, vinyl insulated, funnel entry, bulk package.
Fork Terminal, vinyl insulated, funnel entry, 26- 22 AWG, #4 stud size, bulk package.

PV22-4F-MYY

Fork Terminal, vinyl insulated, funnel entry, 26- 22 AWG, #4 stud size, bulk package.

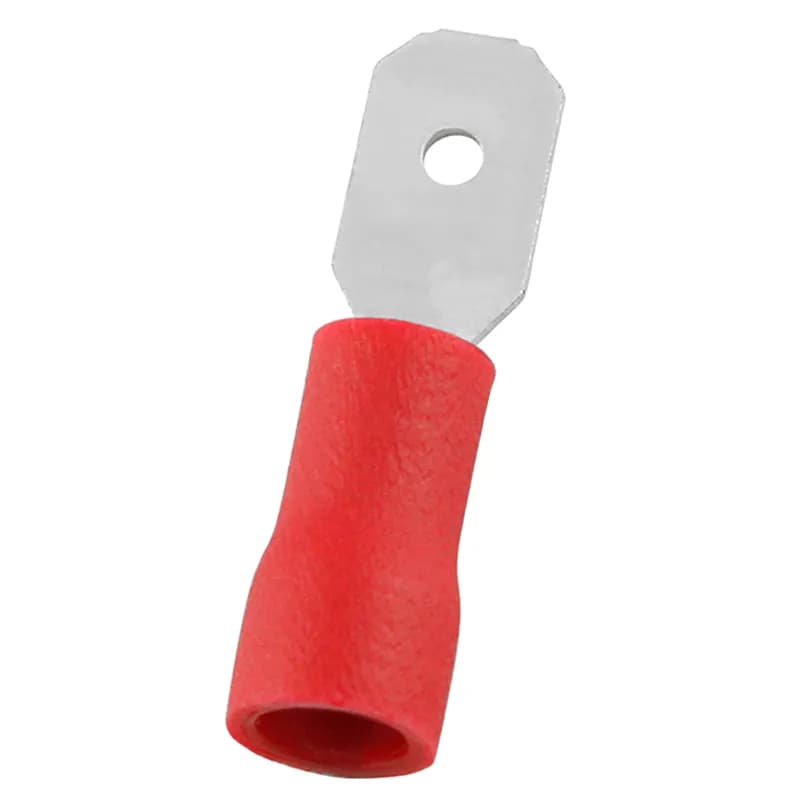

StrongHold Male Disconnect, vinyl insul, 22 - 16 AWG, .187 x .032 tab size

EDV18-187MB-Q

StrongHold Male Disconnect, vinyl insul, 22 - 16 AWG, .187 x .032 tab size
Ring Terminal, 26 22 AWG, #8 stud size, non-insulated, bulk package.

P22-8R-M

Ring Terminal, 26 22 AWG, #8 stud size, non-insulated, bulk package.
Ring Terminal, 26 22 AWG, #6 stud size, vinyl insulated, funnel entry, bulk package.

PV22-6R-MYY

Ring Terminal, 26 22 AWG, #6 stud size, vinyl insulated, funnel entry, bulk package.
Ring Terminal, 26 22 AWG, #4 stud size, non-insulated, bulk package.

P22-4R-M

Ring Terminal, 26 22 AWG, #4 stud size, non-insulated, bulk package.

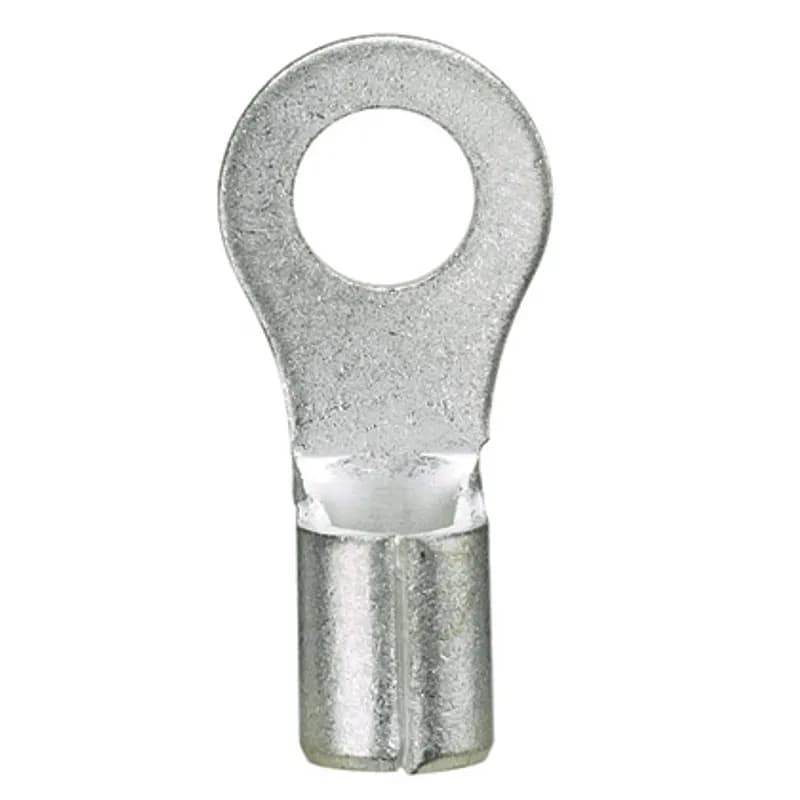

Ring Terminal, 26 22 AWG, #6 stud size, non-insulated, bulk package.
