Panduit PV18-6FN-CY - Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, narrow tongue, standard package.
Panduit

PV18-6FN-CY

UPC: 074983691791

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 500

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit PV18-6FN-CY is a high-quality vinyl-insulated fork terminal designed for reliable electrical connections in industrial applications. This specific model features a funnel entry design, ensuring easier wire insertion and preventing stray strands, which is crucial for secure and efficient termination. Engineered for wire sizes ranging from 22 to 16 AWG (American Wire Gauge), this terminal offers versatility for a broad spectrum of wiring tasks. The #6 stud size mounting type provides a secure and stable connection point, compatible with standard #6 studs commonly found in electrical panels and equipment. The narrow tongue design of the PV18-6FN-CY allows for installation in tighter spaces where standard width terminals might not fit, enhancing design flexibility. Manufactured by Panduit, a recognized leader in electrical and network infrastructure solutions, this fork terminal is built to meet stringent quality standards. The vinyl insulation offers protection against environmental factors and provides electrical insulation for safe operation. Each unit is part of a standard package, facilitating bulk purchasing and inventory management for industrial operations. The UNSPSC code for this product is 39121409, categorizing it within electrical connectors. Proudly made in the USA, the PV18-6FN-CY embodies the commitment to quality and performance associated with American manufacturing. This terminal is an essential component for electrical contractors, maintenance professionals, and equipment manufacturers requiring dependable wire termination solutions. Its robust construction and specific design features contribute to the overall integrity and longevity of electrical systems. The funnel entry is particularly beneficial for reducing installation time and minimizing the risk of improper wire seating, which can lead to connection failures. The 22-16 AWG range covers common control and signal wiring applications, while the #6 stud size ensures compatibility with a wide array of terminal blocks and busbars. Choose the Panduit PV18-6FN-CY for a secure, efficient, and durable electrical connection.
  • Vinyl insulated fork terminal for secure electrical connections.
  • Funnel entry design for easier wire insertion and reduced installation time.
  • Suitable for wire sizes 22-16 AWG.
  • #6 stud size mounting for compatibility with standard studs.
  • Narrow tongue design for space-constrained applications.

Specifications

Color
Red
Connection
Funnel Entry
Enclosure
Fork shape
Finish
Tin-Plated
Insulation
Vinyl
Material
Copper
Mounting
5/16 In.
Size
#6
Standard
UL Listed 587H E52164; CSA Certified LR31212
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
600 V
Wire Size
#16 AWG
Package Dimensions (L x W x H)
9.3 IN x 2.05 IN x 3.65 IN
Package Weight (Imperial)
1.2 lbs
Locking Fork Terminal, vinyl insulated, 22- 16 AWG, #6 stud size, expanded insulation for large wire O.D., bulk package.

PV18-6LFX-MY

Locking Fork Terminal, vinyl insulated, 22- 16 AWG, #6 stud size, expanded insulation for large wire O.D., bulk package.
Flanged Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, standard package.

PV18-6FF-CY

Flanged Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, standard package.
Locking Fork Terminal, vinyl insulated, 22- 16 AWG, #8 stud size, expanded insulation for large wire O.D., bulk package.

PV18-8LFX-MY

Locking Fork Terminal, vinyl insulated, 22- 16 AWG, #8 stud size, expanded insulation for large wire O.D., bulk package.
Flanged Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, bulk package.

PV18-6FF-MY

Flanged Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, bulk package.
Flanged Fork Terminal, vinyl insulated, funnel entry, 22 - 16 AWG, #10 stud size.

PV18-10FF-CY

Flanged Fork Terminal, vinyl insulated, funnel entry, 22 - 16 AWG, #10 stud size.
Ring terminal, 22 16 AWG, KYNAR insulated, 1/4" stud size, bulk package.

PK18-14R-C

Ring terminal, 22 16 AWG, KYNAR insulated, 1/4" stud size, bulk package.
Locking Fork Terminal, vinyl insulated, 22- 16 AWG, #10 stud size, expanded insulation for large wire O.D., standard package.

PV18-10LFX-CY

Locking Fork Terminal, vinyl insulated, 22- 16 AWG, #10 stud size, expanded insulation for large wire O.D., standard package.
StrongHold Female Bullet Disconnect, vinyl insul, 22 - 16 AWG

EBV18-4B-Q

StrongHold Female Bullet Disconnect, vinyl insul, 22 - 16 AWG
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm ). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.

DV14-250B-E

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm ). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm ). It is 0.96" (24.4 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

DV14-250MB-M

The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm ). It is 0.96" (24.4 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Flanged Fork Terminal, 22- 16 AWG, #8 stud size, non-insulated, bulk package.

P18-8FF-M

Flanged Fork Terminal, 22- 16 AWG, #8 stud size, non-insulated, bulk package.

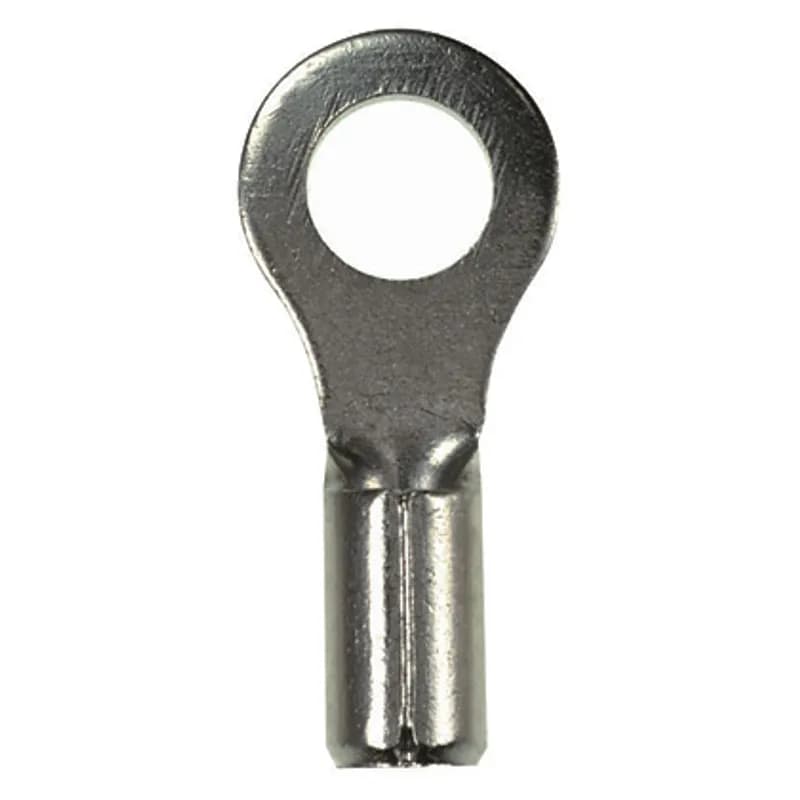

High Temperature Ring Terminal, 22 18 AWG, #6 stud size, non-insulated, standard package.

P18-6RHT6-C

High Temperature Ring Terminal, 22 18 AWG, #6 stud size, non-insulated, standard package.
