Contact for Pricing
Minimum Qty: 500
Multiplier: 500
*Contact for lower quantities*
Overview
- Accommodates 12 to 10 AWG wire sizes with #6 stud compatibility
- Funnel entry design simplifies wire insertion and reduces installation time
- Continuously molded design ensures consistent, high-quality terminations
- Internal barrel serrations and brazed seam provide maximum tensile strength and durability
- UL 94V-0 rated insulation supports up to 221°F (105°C) and meets UL/CSA 600V standards
Specifications
Color | Vinyl |
Color | Yellow |
Connection | Funnel Entry |
Connection Type | Ring Terminal |
Enclosure | Ring shape |
Finish | Tinned |
Insulation | Vinyl |
Material | Vinyl Insulated Copper |
Material | Copper |
Material | Vinyl |
Mounting | 5/16 In. |
Mounting Type | Stud Mounted |
Mounting Type | #6 Stud |
Series | PV |
Size | #6 |
Size | 12-10 AWG |
Size | 12-10 AWG, #6 Stud |
Standard | UL Listed 587H E52164, CSA Certified LR31212 |
Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
Type | Ring Terminal |
Voltage Rating | 600 V |
Wire Size | 10 Awg |
Package Dimensions (L x W x H) | 7.15 IN x 3.3 IN x 3.35 IN |
Package Weight (Imperial) | 2.2 lbs |
PV10-6RX-D
Ring Terminal, 12 10 AWG, #6 stud size, vinyl insulated, expanded insulation for large wire O.D., bulk package.
PNF10-10R-D

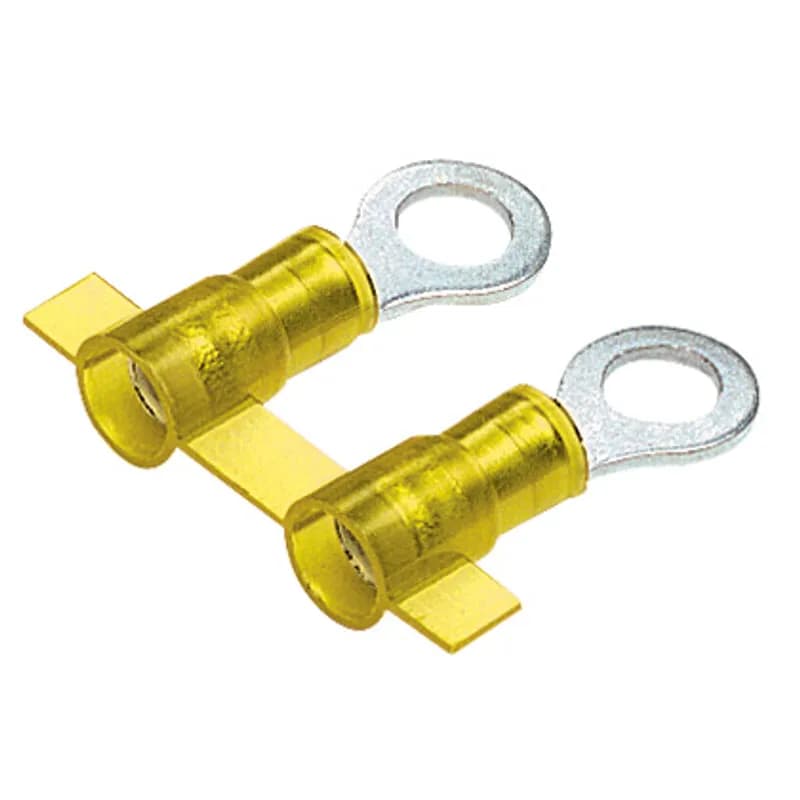

The PNF10-10R-D Pan-Term Terminal is a nylon insulated, ring terminal with funnel entry. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
PN10-8R-D
The PN10-8R-D Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
