Panduit PUZ5504BU-CEG - The TX5500 Cat 5e U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant HDPE (LSZH), Blue jacket. Packaged 1000 ft./305m on a reel.
Panduit

PUZ5504BU-CEG

UPC: 074983489855

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Overview

The Panduit TX5500 Cat 5e U/UTP LSZH copper cable (SKU: PUZ5504BU-CEG) delivers reliable Gigabit Ethernet performance with 24 AWG solid copper conductors and HDPE insulation. Designed for high-speed data networks, this cable supports 1000BASE-T (Gigabit Ethernet) and is ideal for telephony voice wiring, 10BASE-T, and emerging PoE applications. The flame-retardant LSZH (Low Smoke Zero Halogen) HDPE jacket ensures safety in plenum and riser environments, meeting UL CM and CMX ratings for fire safety compliance. Key features include color-coded pairs for simplified termination and installation, reducing setup time and minimizing errors. The 24 AWG conductors provide optimal balance and signal integrity, while the twisted-pair construction minimizes crosstalk and electromagnetic interference. Packaged on a 1000 ft (305m) reel, the TX5500 is optimized for large-scale deployments, offering efficient cable management and reduced waste. This Cat 5e U/UTP cable is engineered for mission-critical applications in enterprise networks, data centers, and industrial environments where performance and safety are paramount. Its LSZH jacket makes it suitable for use in air-handling spaces, ensuring compliance with stringent building codes. The cable’s 350 MHz bandwidth support and 1000BASE-T compatibility make it a cost-effective solution for high-speed data transmission without the need for costly Cat 6 or Cat 6A infrastructure. Backed by Panduit’s reputation for quality and reliability, the TX5500 Cat 5e U/UTP LSZH cable is the smart choice for network professionals seeking a durable, high-performance solution for modern Ethernet and PoE applications.
  • 24 AWG solid copper conductors with HDPE insulation for optimal signal integrity
  • Flame-retardant LSZH HDPE jacket (blue) for plenum/riser safety compliance
  • Supports Gigabit Ethernet (1000BASE-T) and PoE applications up to 100W
  • Color-coded pairs for easy termination and reduced installation errors
  • Packaged on 1000 ft (305m) reel for large-scale deployments

Specifications

Application
Indoor
Color
Blue
Conductor Material
Copper
Construction
U/UTP
Jacket Material
LSZH Material
Length
1000 FT
Number of Conductors
4
Outside Diameter
NA In.
Temperature Rating
NA F
Type
Copper Cable
Type
Bulk Copper Cable
Voltage Rating
NA V
Voltage Rating
NA V V
Weight
22/1000 ft. lb
Package Dimensions (L x W x H)
11.8 IN x 11.8 IN x 12.5 IN
Package Weight (Imperial)
24.3 lbs
The TX6 Cat 6 U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.

PUP6C04BU-F

The TX6 Cat 6 U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.
The TX6000 Cat 6 U/UTP LSZH copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant HDPE (LSZH), Blue jacket. Packaged 1000 ft./305m on a reel.

PUZ6004BU-CEG

The TX6000 Cat 6 U/UTP LSZH copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant HDPE (LSZH), Blue jacket. Packaged 1000 ft./305m on a reel.
Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, blue.

PUR6504BU-UY

Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, blue.
Copper cable, category 6A UTP, riser (CMR), 4-pair, conductors are 23 AWG with HDPE insulation, twisted in pairs, separated by a separator and protected by a by a flame retardant PVC jacket, blue.

PUR6A04BU-CG

Copper cable, category 6A UTP, riser (CMR), 4-pair, conductors are 23 AWG with HDPE insulation, twisted in pairs, separated by a separator and protected by a by a flame retardant PVC jacket, blue.
Copper cable, category 6A UTP, CM, 4-pair, conductors are 23 AWG, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending MaTriX tape and protected by a PVC jacket, blue.

PUC6A04BU-EG

Copper cable, category 6A UTP, CM, 4-pair, conductors are 23 AWG, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending MaTriX tape and protected by a PVC jacket, blue.
Copper cable, category 6A U/UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by an advancedmatrix tape and protected by a flame-retardant PVC jacket, blue.

PUP6AM04BU-UGA

Copper cable, category 6A U/UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by an advancedmatrix tape and protected by a flame-retardant PVC jacket, blue.
The TX6A Cat 6A F/UTP Riser copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMR), Blue jacket. Packaged 1000ft/305m on a reel

PFR6X04BU-CG

The TX6A Cat 6A F/UTP Riser copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMR), Blue jacket. Packaged 1000ft/305m on a reel
Copper cable, category 6A UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending matrix tape and protected by a flame-retardant PVC jacket, blue.

PUP6A04BU-UG

Copper cable, category 6A UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending matrix tape and protected by a flame-retardant PVC jacket, blue.
Cat 6A Advanced MaTriX 4-pair 23 AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-1 and 60332-3) Rated, Blue, Euro pallet, 1000ft/305m.

PUL6AM04BU-CEG

Cat 6A Advanced MaTriX 4-pair 23 AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-1 and 60332-3) Rated, Blue, Euro pallet, 1000ft/305m.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant PVC jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to a reel.

PUR6AV04BU-G

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant PVC jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to a reel.
The QuickNet Copper Trunk is constructed of Category 6A, UTP, Plenum rated copper cable. It features a casette with blue jacks on each end and is 20 feet in length.

QZPBCCB0001F020

The QuickNet Copper Trunk is constructed of Category 6A, UTP, Plenum rated copper cable. It features a casette with blue jacks on each end and is 20 feet in length.

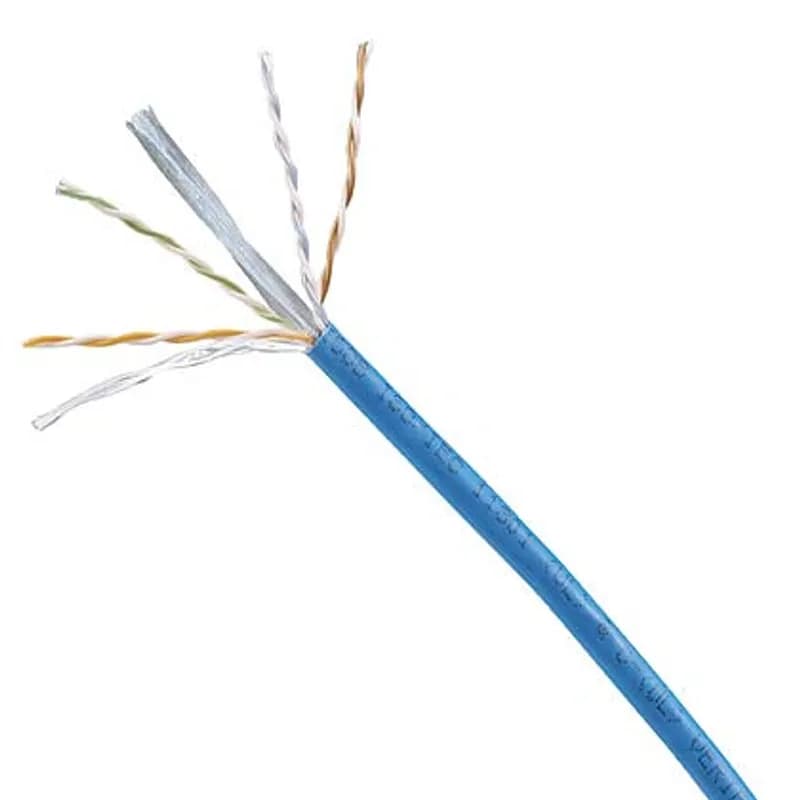

The TX6000 Cat 6 U/UTP Riser copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMR), Blue jacket. Packaged 1000 ft./305m on a reel in a box.

PUR6004BUY

The TX6000 Cat 6 U/UTP Riser copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMR), Blue jacket. Packaged 1000 ft./305m on a reel in a box.

Frequently Asked Questions

What is the maximum operating voltage?

The maximum operating voltage for the PUZ5504WH-CEG is 80V.

What type of cable is used in this product?

The cable consists of 24 AWG solid copper insulated with HDPE.

What is the cable diameter?

The nominal cable diameter is 5.2mm (0.205 in.).

Is this cable compatible with PoE applications?

Yes, it meets IEEE 802.3af and IEEE 802.3at standards for PoE applications.

What standards does this cable exceed?

The cable exceeds ANSI/TIA-568-C.2 and ISO 11801 Class D standards.

What is the temperature rating during operation?

The operating temperature range is -20°C to 75°C (-4°F to 167°F).

What is the installation temperature range?

The installation temperature range is 0°C to 50°C (32°F to 122°F).

What is the maximum tension during installation?

The maximum tension during installation is 110 N (25 lbf).

What is the weight of the cable per 1000 feet?

The cable weighs 10 kg per 305m (22 lbs. per 1000 ft.).

What packaging options are available?

The cable is available in 305m (1000 feet) or 500m (1640 feet) on a reel.
