Panduit PUR6C2804BU-U - Copper Cable, Category 6, 4-pair, 28 AWG, U/UTP, CMR, Blue, 1000 feet / 305 meters, Blue.
Panduit

PUR6C2804BU-U

UPC: 613056167599

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 14000

Multiplier: 1000

*Contact for lower quantities*

Overview

Panduit PUR6C2804BU-U is a Category 6 U/UTP copper cable designed for high-performance data networks. This 4-pair, 28 AWG cable delivers reliable 10GBASE-T performance up to 55 meters, meeting TIA/EIA-568-C.2 standards for commercial building telecommunications cabling. The CMR-rated jacket ensures compliance with NEC requirements for riser applications, making it ideal for vertical cable runs between floors in office buildings, schools, and healthcare facilities. Each 1000-foot (305-meter) reel provides continuous cable for large-scale installations, reducing splice points and potential failure points. The blue jacket simplifies identification in complex cable management systems. Compatible with Panduit's full line of Category 6 connectivity components, including patch panels, keystone jacks, and modular plugs. Suitable for 10/100/1000BASE-T Ethernet, VoIP, and PoE+ applications where consistent signal integrity is critical. The 28 AWG conductors offer a balance of flexibility and signal strength, while the U/UTP construction minimizes crosstalk for stable network performance. Backed by Panduit's 25-year warranty on components when used with certified Panduit solutions.
  • Category 6 U/UTP construction for 10GBASE-T support up to 55m
  • 28 AWG solid copper conductors for optimal signal integrity
  • CMR-rated jacket compliant with NEC for riser applications
  • 1000-foot (305-meter) reel reduces installation splices
  • Blue jacket for easy identification in cable management systems

Specifications

Color
Blue
Conductor Material
Copper
Connection Type
U/UTP
Construction
U/UTP
Insulation Material
FEP
Jacket Material
Polyvinyl chloride
Length
1000
Material
Copper
Number of Conductors
4
Outside Diameter
0.14 In.
Resistance
Flame Retardant
Series
Category 6
Size
4-pair, 28 AWG
Standard
Exceeds ANSI/TIA-568-C.2 Category 6 standard at swept frequencies up to 250 MHZ, NFPA 262, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL 1666, RoHS Compliant
Temperature Rating
167 F
Type
Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
48 IN x 44 IN x 44 IN
Package Weight (Imperial)
764.4 lbs
Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, blue.

PUR6504BU-UY

Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, blue.
Copper cable, category 6A U/UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by an advancedmatrix tape and protected by a flame-retardant PVC jacket, blue.

PUP6AM04BU-UGA

Copper cable, category 6A U/UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by an advancedmatrix tape and protected by a flame-retardant PVC jacket, blue.
Cat 6A Advanced MaTriX 4-pair 23 AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-1 and 60332-3) Rated, Blue, Euro pallet, 1000ft/305m.

PUL6AM04BU-CEG

Cat 6A Advanced MaTriX 4-pair 23 AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-1 and 60332-3) Rated, Blue, Euro pallet, 1000ft/305m.
Copper cable, category 6A UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending matrix tape and protected by a flame-retardant PVC jacket, blue.

PUP6A04BU-UG

Copper cable, category 6A UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending matrix tape and protected by a flame-retardant PVC jacket, blue.
Copper Cable, Cat 6A Advanced MaTriX, 4-Pair, 23AWG, U/UTP, CMR, Blue, 1000ft/305m

PUR6AM04BU-CG

Copper Cable, Cat 6A Advanced MaTriX, 4-Pair, 23AWG, U/UTP, CMR, Blue, 1000ft/305m
Copper cable, category 6A UTP, riser (CMR), 4-pair, conductors are 23 AWG with HDPE insulation, twisted in pairs, separated by a separator and protected by a by a flame retardant PVC jacket, blue.

PUR6A04BU-CG

Copper cable, category 6A UTP, riser (CMR), 4-pair, conductors are 23 AWG with HDPE insulation, twisted in pairs, separated by a separator and protected by a by a flame retardant PVC jacket, blue.

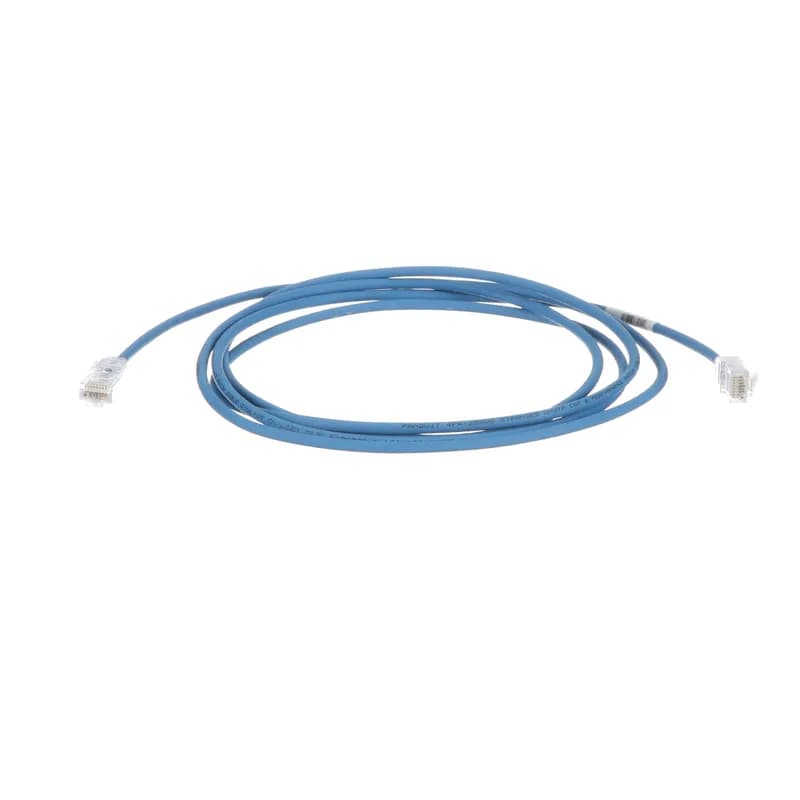

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP3MBU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.
Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP3BU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.
Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP6BU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.
Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP4MBU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.
Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP12BU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant PVC jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to a reel.

PUR6AV04BU-G

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant PVC jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to a reel.

Frequently Asked Questions

What are the conductor specifications for this cable?

The cable uses 28 AWG copper conductors with FEP (CMP) insulation.

What type of jacket does the cable have?

The cable has a low smoke, flame-retardant (CMP) PVC jacket.

Is the TX6-28™ Copper Cabling System backward compatible?

Yes, the TX6-28™ Copper Cabling System is interoperable and backward compatible.

What network applications does this cable support?

It supports Ethernet 10BASE-T, 100BASE-T, 1000BASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, and Token Ring 4/16.

What is the maximum channel distance for this cable?

The maximum channel distance is 50 meters (164 feet) in a 4-connector configuration.

What jack is required for proper cable termination?

Proper termination requires the use of the CJT688TG* jack module.

What is the nominal cable diameter?

The nominal cable diameter is 0.140 inches (3.5mm).

What is the flame rating of this cable?

The cable's flame rating is NFPA 262.

Is this cable compliant with PoE standards?

Yes, the cable meets IEEE 802.3af and IEEE 802.3at for PoE applications.

What is the maximum installation tension for the cable?

The maximum installation tension for the cable is 18 lbf (80N).
