Panduit PUP6AHD04IG-G - The TX6A Vari-MaTriX HD Cat 6A U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors shall be twisted in pairs. All four pairs shall be surrounded by a metallic Vari-MaTriX tape cut into segments of varying length and covered by a flame retardant PVC (CMP), Gray jacket. Packaged 1000 ft./305m on a reel.
Panduit

PUP6AHD04IG-G

UPC: 613056792784

Documents & Media
Specification SheetVideo Clip

Contact for Pricing

Minimum Qty: 9000

Multiplier: 1000

*Contact for lower quantities*

Overview

Panduit TX6A Vari-MaTriX HD Cat 6A U/UTP Plenum copper cable (SKU: PUP6AHD04IG-G) delivers 10GBASE-T performance up to 100 meters with superior noise immunity for enterprise and industrial networks. Constructed with 23 AWG solid copper conductors and FEP insulation, each pair is twisted for optimal signal integrity. The cable features a segmented Vari-MaTriX metallic tape for enhanced crosstalk reduction, reducing alien crosstalk by up to 50% compared to standard Cat 6A designs. The metallic tape is cut into segments of varying length to disrupt resonance patterns, further improving noise immunity. All four twisted pairs are surrounded by this segmented Vari-MaTriX tape, which is then covered by a flame-retardant PVC (CMP), gray jacket. The jacket meets CMP (Plenum) fire safety standards for use in air handling spaces. The cable is packaged on a 1000 ft (305m) reel for efficient installation in data centers, commercial buildings, and mission-critical environments. Ideal for high-density deployments where space and reliability are critical, this cable supports high-speed data transmission while maintaining compliance with Cat 6A performance standards.
  • 23 AWG solid copper conductors with FEP insulation for superior signal integrity
  • Segmented Vari-MaTriX metallic tape reduces alien crosstalk by up to 50%
  • CMP-rated flame-retardant PVC gray jacket for plenum spaces
  • Supports 10GBASE-T up to 100 meters per Cat 6A standards
  • 1000 ft (305m) reel for efficient large-scale installations

Specifications

Color
Gray
Conductor Material
Copper
Construction
U/UTP
Material
FEP insulation, PVC jacket, copper conductors
Number Of Conductors
4
Outside Diameter
NA In.
Series
TX6A Vari-MaTriX HD Cat 6A U/UTP Plenum
Size
23 AWG
Temperature Rating
NA F
Type
Bulk Copper Cable
Voltage Rating
NA V
Package Dimensions (L x W x H)
44 IN x 48 IN x 50.2 IN
Package Weight (Imperial)
1231.2 lbs
The TX5e Cat 5e U/UTP Plenum copper cable is constructed of 24 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMP), Gray jacket. Packaged 1000 ft./305m in an easy payout carton.

PUP5C04IG-U

The TX5e Cat 5e U/UTP Plenum copper cable is constructed of 24 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMP), Gray jacket. Packaged 1000 ft./305m in an easy payout carton.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a non-conductive foil tape and a flame-retardant PVC jacket. The foil tape suppresses the effects of alien crosstalk. The white, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.

PUP6AS04WH-G

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a non-conductive foil tape and a flame-retardant PVC jacket. The foil tape suppresses the effects of alien crosstalk. The white, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.

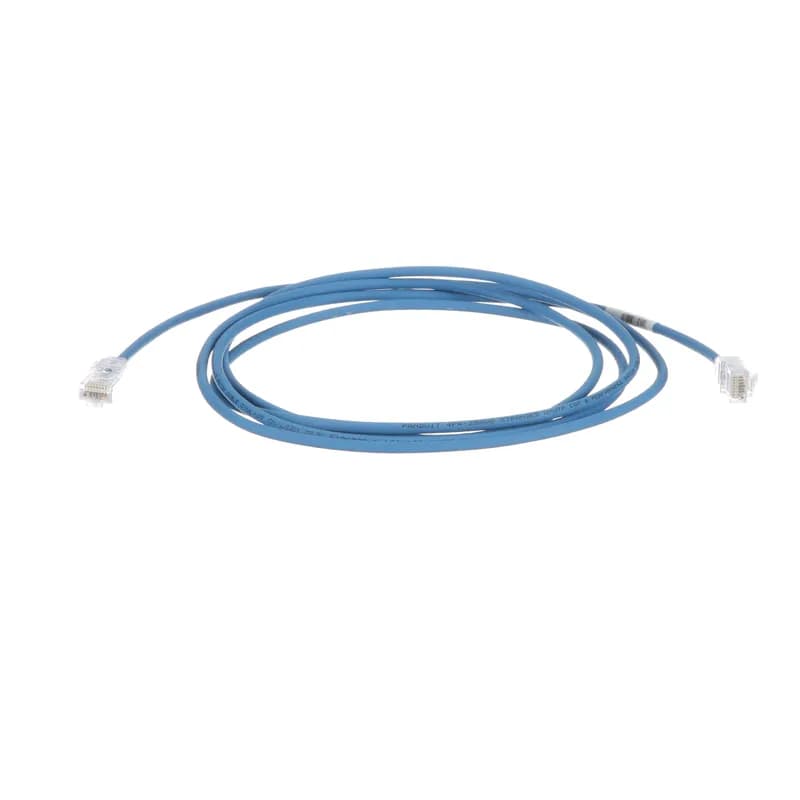

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP9BU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

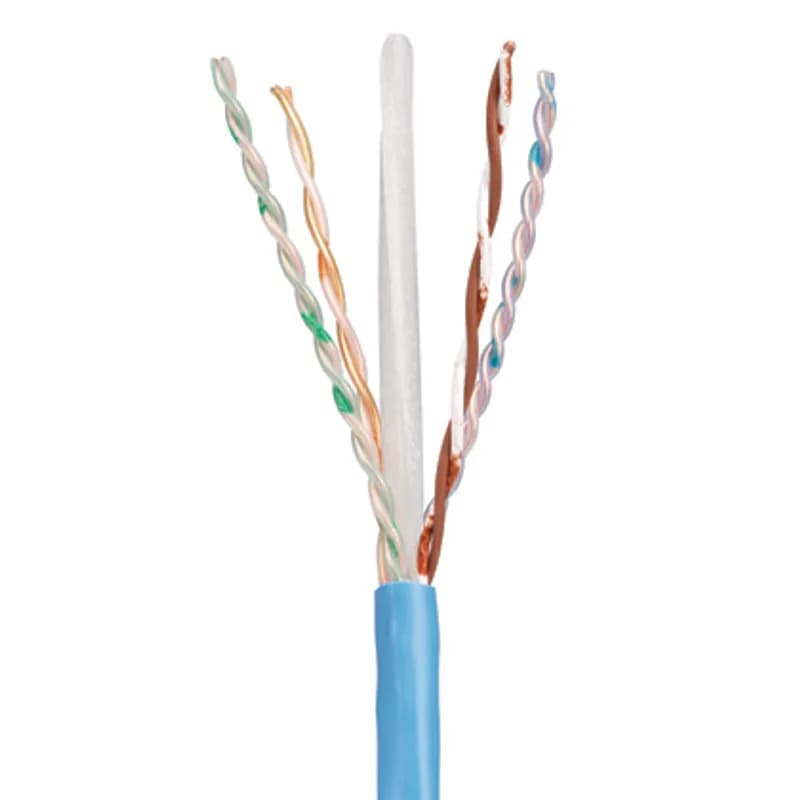

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The blue, plenum (CMP) cable is supplied 1000 feet (305 meters) to an easy pay-out carton.

PUP6004BU-W

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The blue, plenum (CMP) cable is supplied 1000 feet (305 meters) to an easy pay-out carton.
The TX6A Cat 6A F/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMP), Green jacket. Packaged 1000ft/305m on a reel

PFP6X04GR-UG

The TX6A Cat 6A F/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMP), Green jacket. Packaged 1000ft/305m on a reel
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a non-conductive foil tape and a flame-retardant PVC jacket. The foil tape suppresses the effects of alien crosstalk. The blue, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.

PUP6AS04BU-G

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a non-conductive foil tape and a flame-retardant PVC jacket. The foil tape suppresses the effects of alien crosstalk. The blue, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.

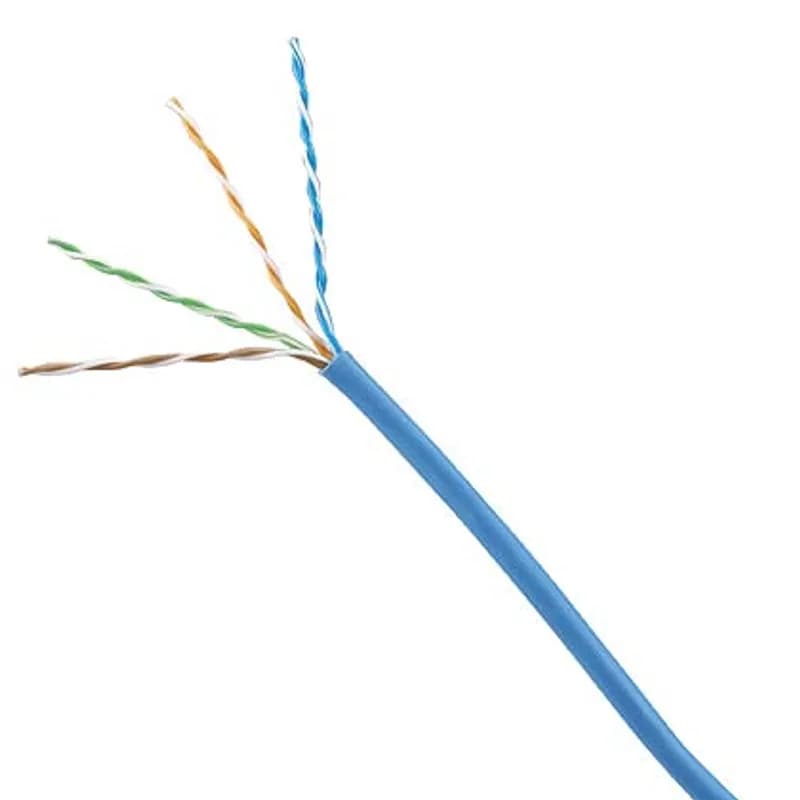

The TX5e Cat 5e U/UTP Plenum copper cable is constructed of 24 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.

PUP5C04BU-F

The TX5e Cat 5e U/UTP Plenum copper cable is constructed of 24 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.
The TX6 Cat 6 F/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m on a reel.

PFP6C04BU-UG

The TX6 Cat 6 F/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m on a reel.

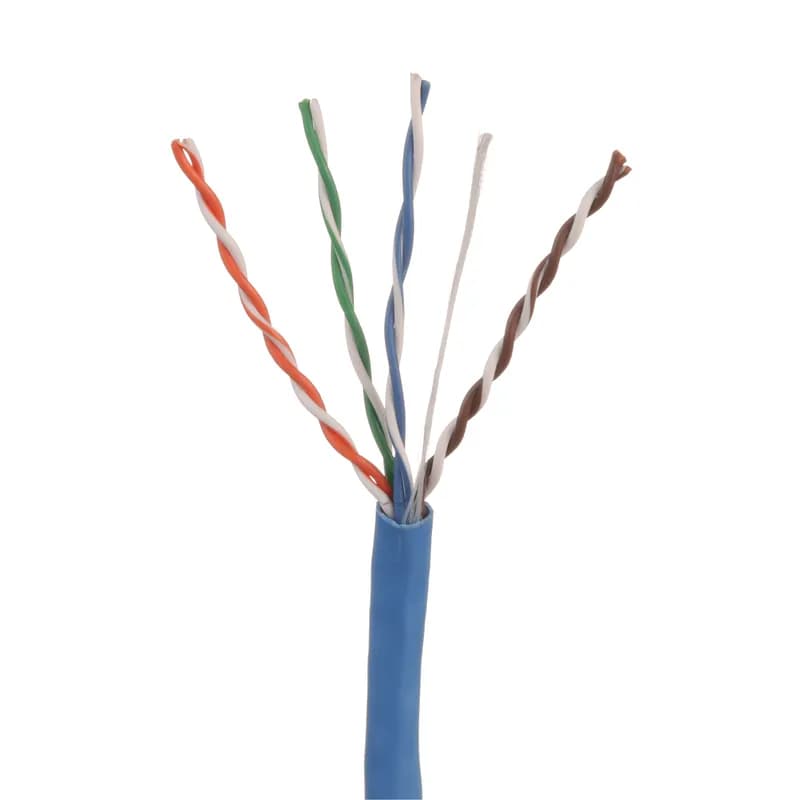

The enhanced copper cable is Category 5e (riser CMR) UTP, 4-pair with conductors that are 24 AWG construction with polyolefin insulation. The cable is twisted in pairs and protected by a flame-retardant PVC jacket. It is blue and 1000' (305m) long.

PUR5504BU-UY

The enhanced copper cable is Category 5e (riser CMR) UTP, 4-pair with conductors that are 24 AWG construction with polyolefin insulation. The cable is twisted in pairs and protected by a flame-retardant PVC jacket. It is blue and 1000' (305m) long.
The enhanced copper cable is Category 5e (plenum CMP) UTP, 4-pair with conductors that are 24 AWG construction with FEP/polyolefin insulation. The cable is twisted in pairs and protected by a low-smoke, flame-retardant PVC jacket. It is blue and 1000' (305m) long.

PUP5504BU-UY

The enhanced copper cable is Category 5e (plenum CMP) UTP, 4-pair with conductors that are 24 AWG construction with FEP/polyolefin insulation. The cable is twisted in pairs and protected by a low-smoke, flame-retardant PVC jacket. It is blue and 1000' (305m) long.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant PVC jacket. The white, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.

PUP6AV04WH-G

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant PVC jacket. The white, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.
Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP5BU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

Frequently Asked Questions

What is the maximum operating voltage for the cable?

The maximum operating voltage for the cable is 80V.

What is the temperature rating during operation?

The temperature rating during operation is -20°C to 105°C (-4°F to 221°F).

What is the installation temperature range?

The installation temperature range is 0°C to 60°C (32°F to 140°F).

What is the maximum installation tension for the cable?

The maximum installation tension for the cable is 25 lbf (110 N).

What standards does the cable comply with?

The cable complies with ANSI/TIA-568.2-D Category 6A and ISO 11801 Class E A standards.

What is the weight of the cable per 1000 ft?

The cable weighs 30.0 lbs. per 1000 ft. (13.6 kg/305m).

Is the cable compatible with PoE applications?

Yes, the cable is compliant with IEEE 802.3af, 802.3at, and 802.3bt for PoE applications.

What is the packaging size of the cable?

The cable is packaged in a reel of 1000 ft. (305m).

What is the cable diameter of the plenum version?

The cable diameter of the plenum version is 0.230 inches (5.8 mm) nominal.

What is the minimum bend radius for the cable?

The minimum bend radius for the cable is 4 times the cable diameter.
