Contact for Pricing
Minimum Qty: 13000
Multiplier: 1000
*Contact for lower quantities*
Overview
- Enhanced Category 5e UTP cable for plenum (CMP) applications
- 4-pair configuration with 24 AWG conductors
- FEP/polyolefin insulation with low smoke, flame-retardant PVC jacket
- Supports Gigabit Ethernet (1000 Base-T) and other data/voice networks
- Color-coded pairs for simplified termination
Specifications
Color | White |
Conductor Material | Copper |
Construction | U/UTP |
Length | 1000 FT |
Number of Conductors | 4 |
Outside Diameter | 0.21 In. |
Standard | Exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards, NFPA 262 and CSA FT-6, meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS Compliant |
Temperature Rating | 167 F |
Type | Copper Cable |
Voltage Rating | 80 V |
Weight | 24/1000 ft. lb |
Package Dimensions (L x W x H) | 44 IN x 48 IN x 46.5 IN |
Package Weight (Imperial) | 975 lbs |
PUR6504WH-UY
Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, white.
PUP6AM04WH-UGA
Copper cable, category 6A U/UTP, plenum (CMP), 4-pair, conductors are 23 AWG with FEP insulation, twisted in pairs, separated by an integrated pair divider, surrounded by an advancedmatrix tape and protected by a flame-retardant PVC jacket, white.
PUR6C2804WH-U
Copper Cable, Category 6, 4-pair, 28 AWG, U/UTP, CMR, White, 1000 feet / 305 meters, White.
PUL6AM04WH-CEG
Cat 6A Advanced MaTriX 4-pair 23 AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-1 and 60332-3) rated, White, Euro pallet, 1000ft/305m.
PFP5504WH-UY
Shielded copper cable, category 5e F/UTP, plenum (CMP), conductors are 24 AWG construction with FEP insulation, twisted in pairs, surrounded by an overall polyester aluminum foil with stranded copper drain wire and protected by a low smoke flame-retardant PVC jacket, white.

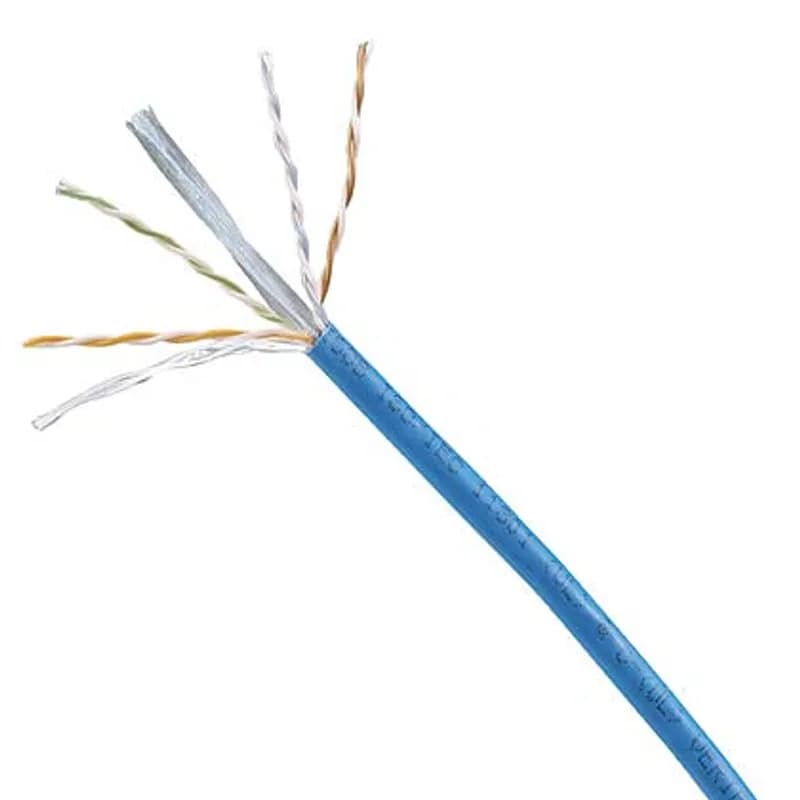

PUR6004WH-WZ
Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The conductors shall be 24 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant PVC (CMR) jacket.PUR5504WH-UY
Enhanced copper cable, category 5e UTP, riser (CMR), 4-pair, conductors are 24 AWG construction with polyolefin insulation, twisted in pairs and protected by a flame-retardant PVC jacket, white.
ISFCH5C02ATL-XG
This Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. Both pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
PFL6X04WH-CEG
The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.
PUL6004WH-FE
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.
PUR6A04WH-CG
Copper cable, category 6A UTP, riser (CMR), 4-pair, conductors are 23 AWG with HDPE insulation, twisted in pairs, separated by a separator and protected by a by a flame retardant PVC jacket, white.Frequently Asked Questions
What is the maximum operating voltage?
The maximum operating voltage for the cable is 80 V.
What applications does the cable support?
The cable supports Ethernet 10BASE-T, 100BASE-T, 1000BASE-T, and various ATM applications.
What standards does the cable meet?
The cable meets ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
What are the temperature ratings for installation?
The temperature rating during installation is 32°F to 122°F (0°C to 50°C).
What flame ratings does the cable meet?
The plenum cable meets NFPA 262 and CSA FT-6; the riser cable meets UL 1666 and CSA FT-4.
What is the cable's certified performance frequency?
The cable is characterized to 450 MHz, exceeding the standard by 350 MHz.
Is the cable compliant with PoE applications?
Yes, the cable meets IEEE 802.3af and IEEE 802.3at for PoE applications.
What is the cable's weight per 1000 ft?
The plenum cable weighs 24 lbs./1000 ft. and the riser cable weighs 22 lbs./1000 ft.
What is the insulation diameter of the cable?
The insulation diameter ranges from 0.033 in. to 0.038 in. (0.84mm to 0.97mm).
What is the installation tension limit?
The maximum installation tension is 25 lbf (110 N).
