Panduit PUL6004WH-FE - The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.
Panduit

PUL6004WH-FE

UPC: 074983878666

Documents & Media
Installation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Overview

The Panduit TX6000 Enhanced Cat 6 U/UTP copper cable (SKU: PUL6004WH-FE) is a premium, high-performance structured cabling solution designed for modern Gigabit Ethernet networks and PoE applications. Constructed with 23 AWG solid copper conductors and HDPE insulation, this cable delivers superior electrical performance with a specified bandwidth of 350MHz and tested performance up to 500MHz. The four twisted pairs are separated by a cross divider to minimize crosstalk and ensure balanced transmission, while the LSZH (Low Smoke Zero Halogen) jacket meets stringent fire safety standards, including IEC 60332-1, IEC 60332-3-22, and EuroClass Dca-s2,d2,a1, making it suitable for plenum and riser applications. Key features include full-duplex operation over all four pairs, improved crosstalk headroom beyond TIA Cat 6 standards, and documented balance characteristics (LCL/TCL, EL TCTL) for reliable signal integrity. The cable is supplied in a 305-meter (1,000-foot) easy pay-out carton with 1000-foot to 0-foot markers for precise installation and inventory management. ETL verified to TIA-568.2-D Category 6 standards, the TX6000 is RoHS compliant and ideal for high-speed data, voice, and video applications, including Power over Ethernet (PoE) deployments up to 100W. Its robust design minimizes tangles during installation and ensures long-term reliability in commercial, industrial, and data center environments.
  • 23 AWG solid copper conductors with HDPE insulation for superior signal integrity
  • Specified to 350MHz and tested to 500MHz, ETL verified to TIA-568.2-D Cat 6 standards
  • LSZH jacket meets IEC 60332-1, IEC 60332-3-22, and EuroClass Dca-s2,d2,a1 fire safety standards
  • Cross divider separates pairs to minimize crosstalk and ensure balanced transmission
  • Supplied in 305m (1,000ft) easy pay-out carton with 1000ft to 0ft markers for precise installation

Specifications

Color
White
Conductor Material
Copper
Construction
U/UTP
Insulation Material
Polyethylene
Insulation Material
High-Density Polyethylene
Jacket Material
LSZH
Jacket Material
LSZH Material
Length
1000
Number of Conductors
4
Outside Diameter
0.224 In.
Resistance
Flame-Retardant
Standard
Exceeds ISO 11801 Class E and ANSI/TIA-568.2-D Category 6 with Channel Headroom Guarantee, IEC 61156-5, IEC 60332-1, IEC 60332-3-22, IEC 60754, IEC 61034, EN 50575: Euroclass Dca-s2-d2-a1, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applicat
Standard
Exceeds ISO 11801 Class E and ANSI/TIA-568.2-D Category 6 with Channel Headroom Guarantee, IEC 61156-5, IEC 60332-1, IEC 60332-3-22, IEC 60754, IEC 61034, EN 50575: Euroclass Dca-s2-d2-a1, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applicati
Temperature Rating
140 F
Type
Bulk Copper Cable
Type
Copper Cable
Voltage Rating
80 V
Voltage Rating
80 V V
Package Dimensions (L x W x H)
15.75 IN x 15.75 IN x 11.2 IN
Package Weight (Imperial)
28.29 lbs
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

PUL6AV04WH-EG

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.
The TX7000 Category 7 copper cable is a shielded S/FTP copper cable. The copper conductors are twisted in pairs, covered by a foil shield within an overall braided shield and a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass B2ca-s1a,d1,a1) cable is supplied 500 meters (1,640 feet) to a reel.

PSW7004WH-HED

The TX7000 Category 7 copper cable is a shielded S/FTP copper cable. The copper conductors are twisted in pairs, covered by a foil shield within an overall braided shield and a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass B2ca-s1a,d1,a1) cable is supplied 500 meters (1,640 feet) to a reel.
The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.

PFL6X04WH-CEG

The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.
Category 6A Advanced MaTriX, 4-Pair, 23AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-3), White, Euro pallet, 1000ft/305m

PUZ6AM04WH-CEG

Category 6A Advanced MaTriX, 4-Pair, 23AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-3), White, Euro pallet, 1000ft/305m

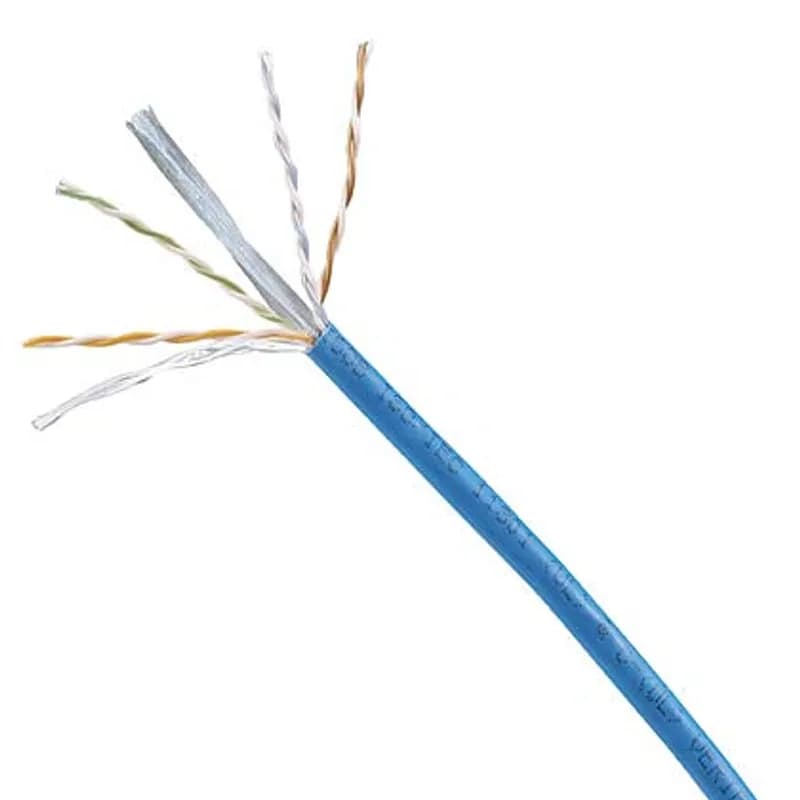

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.

PUL6004BU-FE

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

PUR6004BU-FE

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

PUL6AV04BU-EG

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

PUR6004BU-W

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

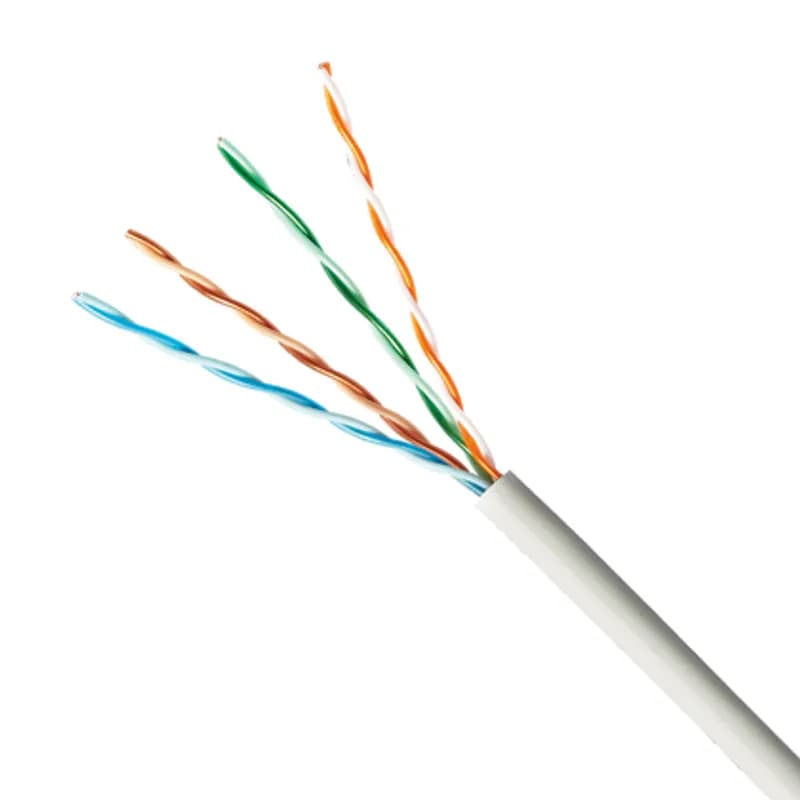

The TX5500 Cat 5e U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant HDPE (LSZH), White jacket. Packaged 1000 ft./305m on a reel.

PUZ5504WH-CEG

The TX5500 Cat 5e U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant HDPE (LSZH), White jacket. Packaged 1000 ft./305m on a reel.
The NK6 Cat 6 U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant HDPE (LSZH), White jacket. Packaged 1000 ft./305m in an easy payout carton.

NUL6CR04WH-CE

The NK6 Cat 6 U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant HDPE (LSZH), White jacket. Packaged 1000 ft./305m in an easy payout carton.
The Cat 5e UTP copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are covered with an industrially rated black PVC jacket which is oil and sunlight resistant and flame retardant. This cable is rated for panel or on-machine applications where space is shared with 600 V high voltage cables. The cable is supplied 305 meters (1,000 feet) to a reel and black.

IFRH5C04BL-UG

The Cat 5e UTP copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are covered with an industrially rated black PVC jacket which is oil and sunlight resistant and flame retardant. This cable is rated for panel or on-machine applications where space is shared with 600 V high voltage cables. The cable is supplied 305 meters (1,000 feet) to a reel and black.
The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.

PFL6X04BU-CEG

The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.

Frequently Asked Questions

What is the temperature range for installation?

The temperature range for installation is 0°C to 50°C (32°F to 122°F).

What is the temperature range for operation?

The cable can operate in temperatures from -20°C to 60°C (-4°F to 140°F).

What is the cable diameter of PUL6004WH-FE?

The cable diameter is 5.7 mm (0.224 in.).

Is the cable compatible with PoE applications?

Yes, the cable meets IEEE 802.3af and IEEE 802.3at standards for PoE applications.

What standards does the cable exceed?

The cable exceeds IEC 61156-5 and ANSI/TIA-568-C.2 Category 6 standards.

What is the maximum operating voltage for the cable?

The maximum operating voltage for the cable is 80V.

What is the maximum installation tension for the cable?

The maximum installation tension is 110 N (25 lbf).

What type of insulation does the cable use?

The cable is insulated with HDPE (High-Density Polyethylene).

What is the weight of the cable per 305 meters?

The cable weighs 12 kg per 305 meters (25 lbs per 1000 ft).

What packaging does the cable come in?

The cable is packaged in Reelex™ packaging, with a length of 305m (1000 ft).
