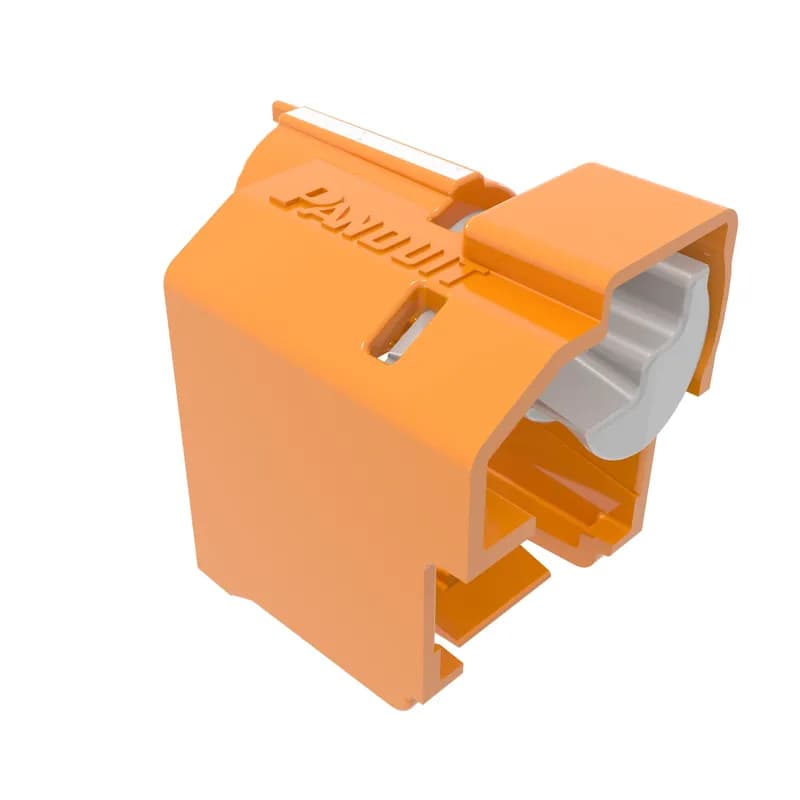

Panduit PSL-DCPLE-OR - The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 orange devices and one removal tool.
Panduit

PSL-DCPLE-OR

UPC: 613056759237

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 20

Multiplier: 1

*Contact for lower quantities*

Overview

Enhance network security and prevent accidental disconnections with the Panduit PSL-DCPLE-OR Lock-In device. This essential component is designed to secure patch cord connections, safeguarding against unauthorized access and inadvertent unplugging. The standard device configuration is optimized for jacks that mount flush with the surface, ensuring a clean and integrated installation. A key feature is the extended hood, which provides robust protection for the locking mechanism, preventing damage and maintaining its integrity. Each package includes ten (10) orange Lock-In devices, allowing for widespread deployment across critical network points. The vibrant orange color aids in quick identification and management of secured connections. Also included is one (1) specialized removal tool, ensuring that authorized personnel can easily and safely disengage the lock when necessary. Manufactured by Panduit, a trusted name in network infrastructure, the PSL-DCPLE-OR is built for reliability. The UNSPSC code for this product is 43223301, and it is proudly made in the USA. This solution is ideal for data centers, enterprise networks, and any environment where maintaining the integrity of network connections is paramount. By physically securing patch cords, you mitigate the risk of service interruptions caused by accidental disconnections, which can be critical during maintenance, equipment moves, or in high-traffic areas. The flush mount design ensures that the device does not protrude, maintaining a tidy and professional installation. The extended hood offers an additional layer of physical protection, crucial in environments where cables might be subject to incidental contact or stress. The inclusion of a dedicated removal tool simplifies the process for authorized personnel, preventing damage to the device or the patch cord during maintenance or reconfiguration. Panduit's commitment to quality is evident in the durable construction of these Lock-In devices, designed for long-term performance in demanding network environments.
  • Secures patch cord connections to prevent unauthorized access or accidental removal.
  • Standard device designed for flush mounting jacks.
  • Extended hood protects the locking mechanism.
  • Includes 10 orange devices for easy identification.
  • One specialized removal tool included for authorized access.

Specifications

Color
Orange
Depth
0.85 In.
Material
Polycarbonate
Mounting
Standard
Type
Lock-In Device
Width
0.55 In.
Package Dimensions (L x W x H)
5.6 IN x 3.95 IN x 1.1 IN
Package Weight (Imperial)
0.041 lbs
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 orange devices and five removal tools.

PSL-DCPLE-OR-C

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 orange devices and five removal tools.

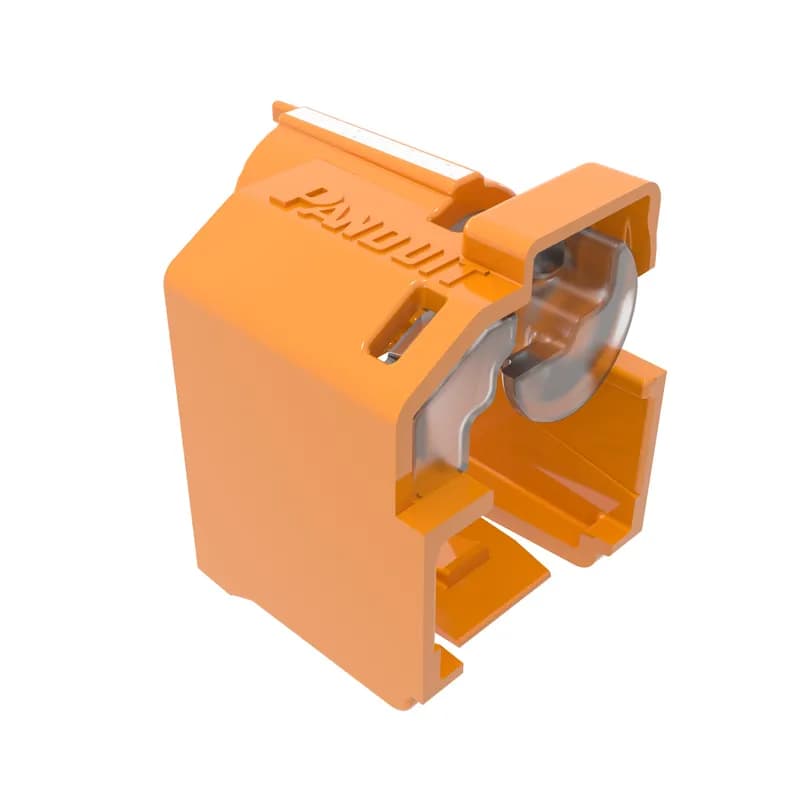

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Recessed device is used when jacks mount slightly deeper from the surface. Extended hood protects locking mechanism. Includes 10 orange devices and one removal tool.

PSL-DCPLRE-OR

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Recessed device is used when jacks mount slightly deeper from the surface. Extended hood protects locking mechanism. Includes 10 orange devices and one removal tool.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Recessed device is used when jacks mount slightly deeper from the surface. Extended hood protects locking mechanism. Includes 100 orange devices and five removal tools.

PSL-DCPLRE-OR-C

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Recessed device is used when jacks mount slightly deeper from the surface. Extended hood protects locking mechanism. Includes 100 orange devices and five removal tools.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 blue devices and five removal tools.

PSL-DCPLE-BU-C

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 blue devices and five removal tools.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush to the surface. Extended hood protects locking mechanism. Includes 10 red devices and one removal tool.

PSL-DCPLE

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush to the surface. Extended hood protects locking mechanism. Includes 10 red devices and one removal tool.

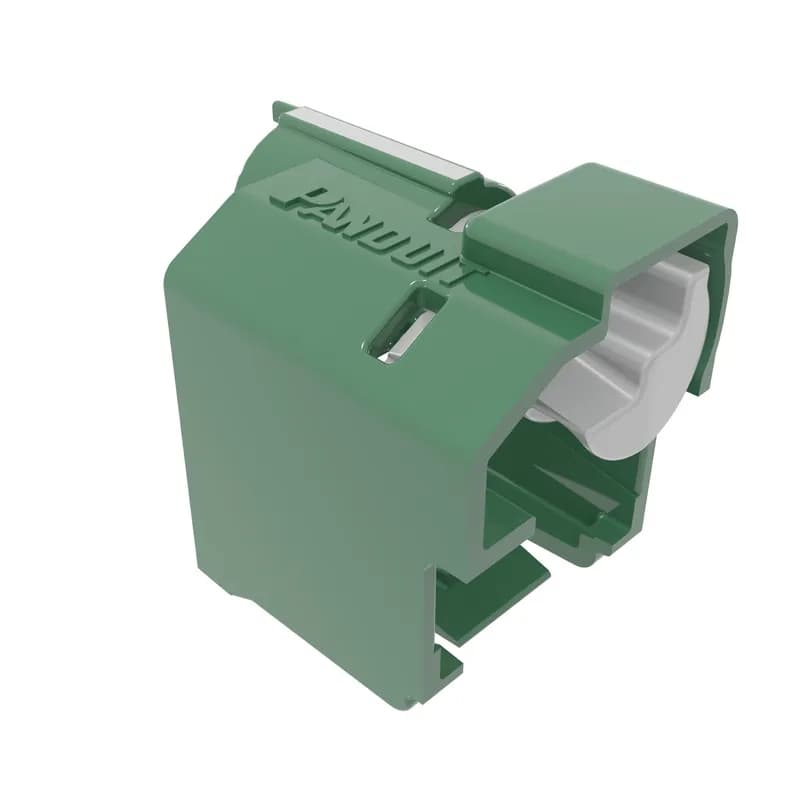

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 green devices and one removal tool.

PSL-DCPLE-GR

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 green devices and one removal tool.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 gray devices and five removal tools.

PSL-DCPLE-IG-C

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 gray devices and five removal tools.

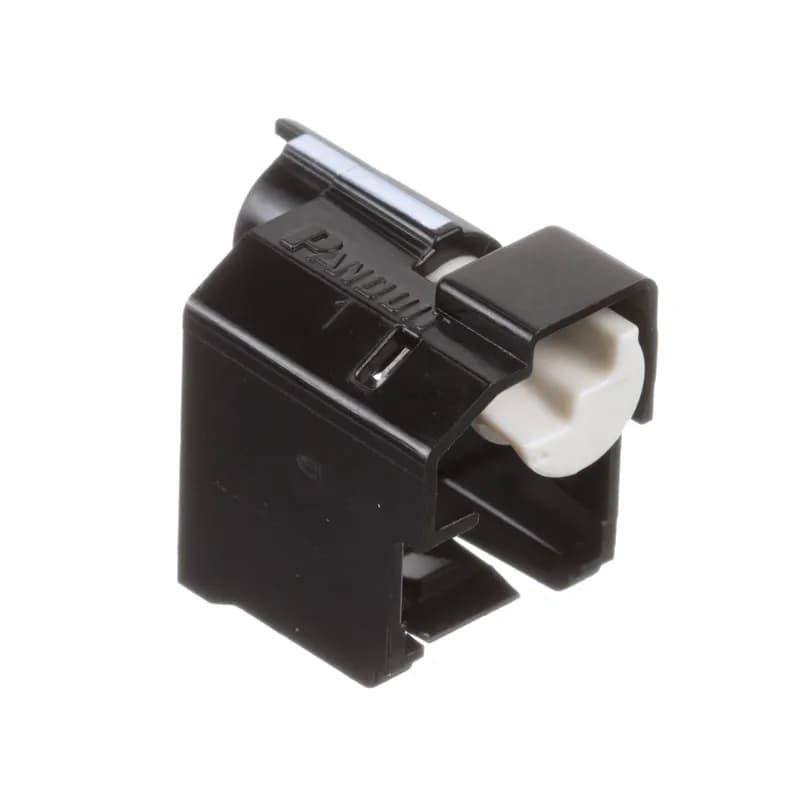

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 black devices and one removal tool.

PSL-DCPLE-BL

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 black devices and one removal tool.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 red devices and five removal tools.

PSL-DCPLE-C

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 red devices and five removal tools.

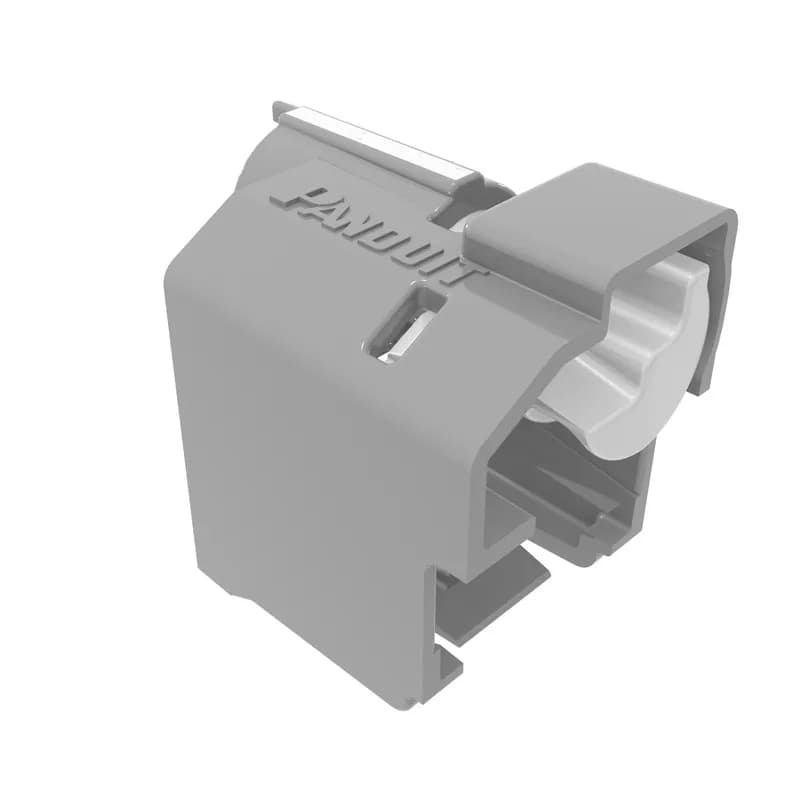

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 gray devices and one removal tool.

PSL-DCPLE-IG

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 gray devices and one removal tool.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 off white devices and five removal tools.

PSL-DCPLE-IW-C

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 100 off white devices and five removal tools.
The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 off white devices and one removal tool.

PSL-DCPLE-IW

The Lock-In device secures patch cord connections to prevent unauthorized access or accidental removal. Standard device is used when jacks mount flush with the surface. Extended hood protects locking mechanism. Includes 10 off white devices and one removal tool.

Frequently Asked Questions

What is the primary function of this device?

The RJ45 Lock-In Device secures connections to reduce network downtime, data security breaches, and hardware replacement due to theft. It prevents unauthorized removal of cables and equipment.

What types of RJ45 connections are compatible?

The device works with most RJ45 patch cords, faceplates, patch panels, VoIP phones, IP cameras, and other IP devices.

Are there different versions of the lock-in device?

Yes, there are three options: standard (flushmount), recessed, and super recessed. Each is designed for different jack mounting depths.

What materials are used for the device and key?

The lock-in device is made of polycarbonate, and the key is made of nylon.

What is included in a standard package?

Each standard package includes 10 lock-in devices and one key. Bulk packages include 100 devices and five keys.

Is the product RoHS compliant?

Yes, the RJ45 Lock-In Device is RoHS compliant.

Should I test the device before widespread use?

Yes, it is recommended to test your specific patch cords and jacks before implementing widespread usage of the device.

How is the device locked and unlocked?

The plug can be locked into or released from a jack using a specific key. The concealed locking mechanism prevents unlocking without this key.

Does the device interfere with adjacent jacks?

No, the compact design allows installation without interfering with adjacent jacks or plugs, even in high-density applications.

Can this device be used for color coding?

Yes, the devices are available in eight different colors, enabling color coding for visual identification.

How to Install the RJ45 Lock-In Device

This guide provides step-by-step instructions for installing the RJ45 Lock-In Device onto an RJ45 plug and connecting it to a jack.

Estimated time: 15m

Tools needed:

Lock-in tool, Screwdriver

Supplies needed:

RJ45 plugs

  1. Install the Lock-In Device onto the RJ45 Plug

    Align the white line on the lock-in tool with the white line on the lock-in device. Insert the tool into the device and rotate it clockwise 90°. Push the RJ45 plug into the device until it snaps into place, ensuring the plug is fully seated.

  2. Remove the Lock-In Tool

    Rotate the tool counter-clockwise 90° and carefully remove it from the device.

  3. Insert the RJ45 Plug into the Jack

    Insert the RJ45 plug into the jack until it locks into place. Lightly pull on the plug to confirm it is securely connected.
