Panduit PR2VD08WH - The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 8 inches wide, and is white.
Panduit

PR2VD08WH

UPC: 613056396142

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Overview

The Panduit PatchRunner 2 Vertical Cable Manager (SKU: PR2VD08WH) is engineered to optimize network infrastructure by providing high-density cable management and freeing up valuable floor space. This fully pre-assembled unit significantly lowers overall installation costs and complexity. Its dual-sided design features a robust metal backbone complemented by molded plastic fingers for secure cable routing. The manager includes two full-length metal doors that are dual-hinging and utilize a convenient push-to-close mechanism for easy access and security. With a substantial 45 RU capacity and an 8-inch width, it efficiently accommodates a large volume of cables. The clean white finish ensures a professional appearance in any data center or network closet. Manufactured in the US, this manager is built for reliability and performance in demanding environments. Its versatile design makes it suitable for various network configurations requiring organized and accessible cable pathways.
  • High-density cable management to maximize rack space
  • Fully pre-assembled for reduced installation time and cost
  • Dual-sided design with metal backbone and molded plastic fingers
  • Two full-length, dual-hinging, push-to-close metal doors
  • 45 RU capacity, 8 inches wide, white finish

Specifications

Color
White
Depth
20.7 In.
Environmental Conditions
Indoor
Standard
RoHS Compliant, UL 2416, CSA C22.2
Type
Dual-Sided Manager
Width
8 In.
Package Dimensions (L x W x H)
86 IN x 21.75 IN x 10.25 IN
Package Weight (Imperial)
56.59 lbs

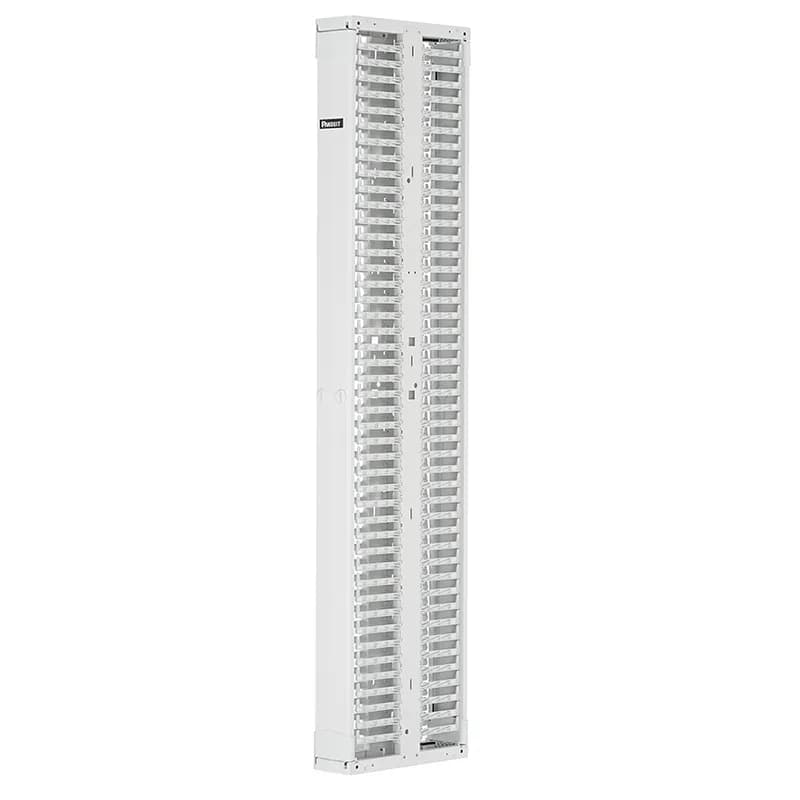

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 8 inches wide, and is white.

PR2VD0896WH

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 8 inches wide, and is white.

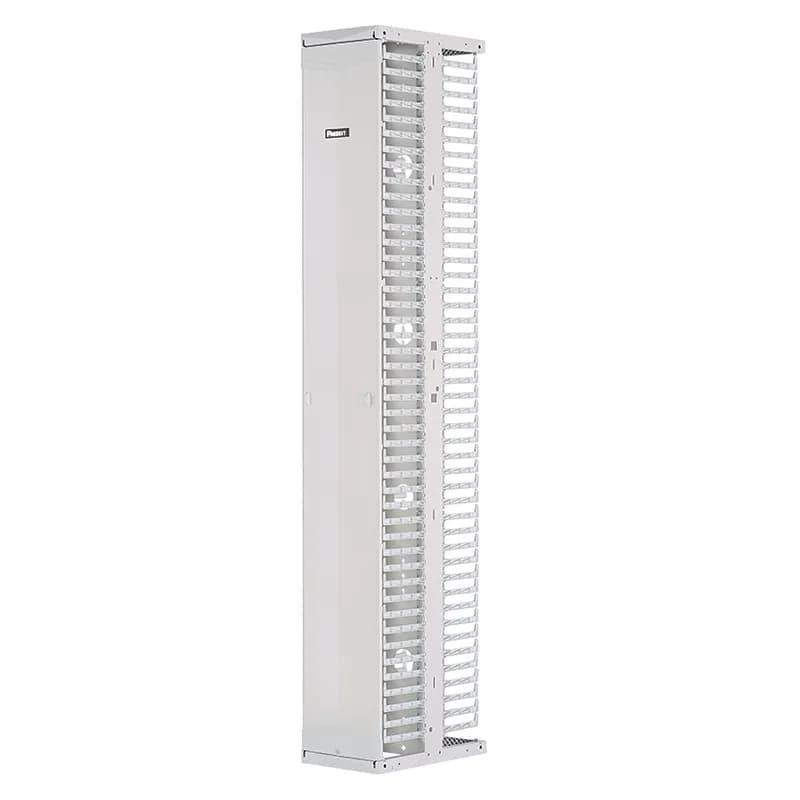

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 8 inches wide, and is white.

PR2VSD08WH

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 8 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 8 inches wide, and is white.

PR2VSD0896WH

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 8 inches wide, and is white.

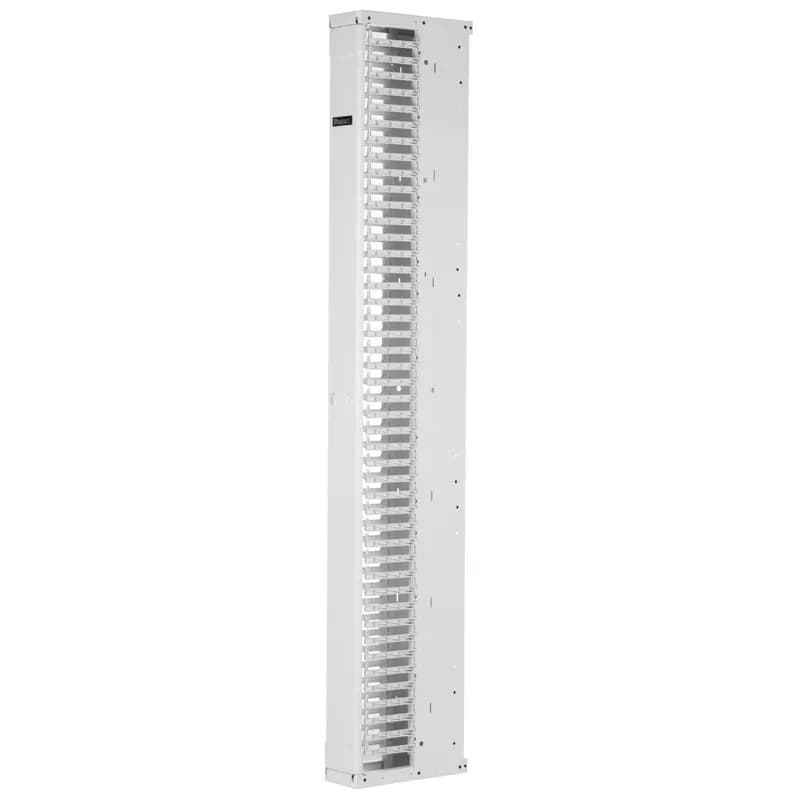

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 8 inches wide, 9 bonus vertical RU, and is white.

PE2VFD08WH

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 8 inches wide, 9 bonus vertical RU, and is white.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 8 inches wide, 9 bonus vertical RU, and is white.

PE2VFD0896WH

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 8 inches wide, 9 bonus vertical RU, and is white.

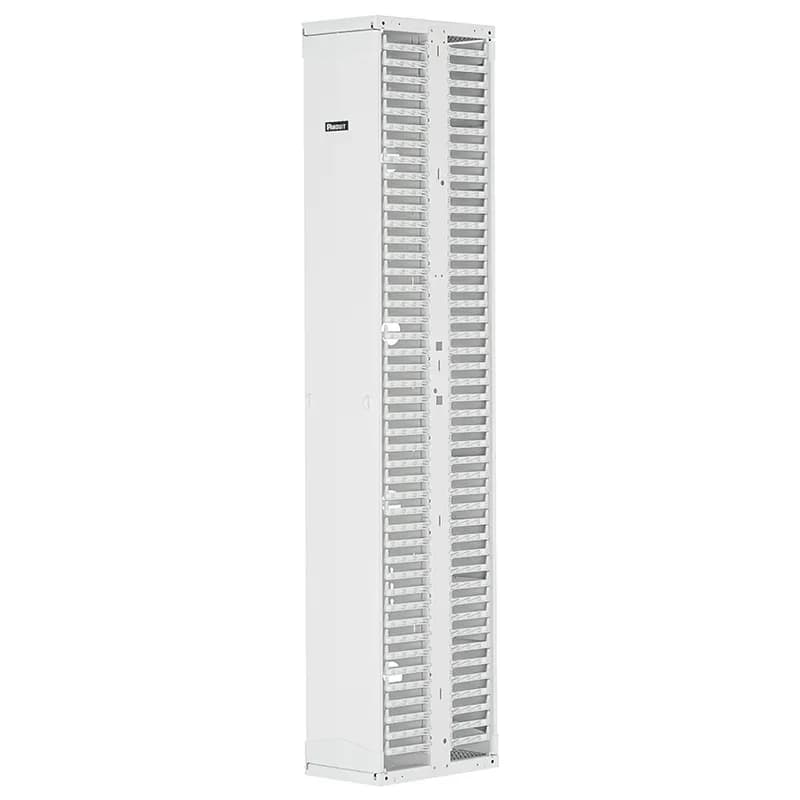

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 6 inches wide, and is white.

PR2VD06WH

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 6 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 10 inches wide, and is white.

PR2VD10WH

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 10 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 10 inches wide, and is white.

PR2VD1096WH

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 10 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 6 inches wide, and is white.

PR2VD0696WH

The PatchRunner 2 Vertical Cable Manager combines high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 6 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 10 inches wide, and is white.

PR2VSD10WH

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 10 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 6 inches wide, and is white.

PR2VSD06WH

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 6 inches wide, and is white.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 10 inches wide, and is white.

PR2VSD1096WH

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 10 inches wide, and is white.

Frequently Asked Questions

What are the dimensions of the RSHLF36 shelf?

The RSHLF36 is a 4-Post Rack Shelf with dimensions of 19 in. W x 36 in. D.

What type of product is PR2VD08WH?

PR2VD08WH is an 8-inch wide PatchRunner 2 Vertical Cable Manager with doors, designed for both front and rear cable management.

What color is the PR2VD08WH cable manager?

The "WH" in the part number PR2VD08WH indicates that the cable manager is white.

What type of rack is the RSHLF36 shelf designed for?

The RSHLF36 shelf is designed for the Panduit Adjustable Depth 4-Post Rack System, which accepts 19 in. wide EIA equipment.

What are the dimensions of the PR2VD08WH cable manager?

The PR2VD08WH cable manager has a width of 8 inches. It is designed for 7-foot racks.

Which rack height is compatible with PR2VD08WH?

The PR2VD08WH cable manager is designed to fit 7-foot racks. An 8-foot version would include "96" in its part number.

Where does the PR2VD08WH cable manager mount?

PatchRunner 2 Vertical Cable Managers, including PR2VD08WH, mount on the front and rear structural posts of the adjustable depth 4-post rack.

What accessories are compatible with PatchRunner 2 managers?

The PR2VWF Waterfall Trough is an accessory compatible with PatchRunner 2 Vertical Cable Managers.

What is the purpose of PatchRunner 2 Vertical Cable Managers?

PatchRunner 2 Vertical Cable Managers are part of a complete rack and cable management system designed to manage and protect network cabling.

Is the RSHLF36 shelf available in other depths?

The RSHLF36 shelf is specifically 36 in. deep. Other shelf depths, such as 23 in. and 30 in., are available under different part numbers.

How to Install the PATCHRUNNER 2 Vertical Cable Manager

This guide provides step-by-step instructions for installing the PATCHRUNNER 2 Vertical Cable Manager onto a rack, ensuring proper mounting and configuration.

Estimated time: 45m

Tools needed:

Screwdriver, Wrench, Dead blow hammer

Supplies needed:

M10 Serrated Flange Bolts, M10 Serrated Flange Nuts, M6 x 16mm Serrated Hex Head Bolts, M6 Serrated Hex Head Nuts

  1. Mount the Vertical Cable Manager

    Secure the Vertical Cable Manager to the rack using (4) M10 Serrated Flange Bolts and (4) M10 Serrated Flange Nuts. Ensure that the manager is level and firmly attached.

  2. Install the Door

    Align the door hinge pins with the slots on the door supports and push the door closed until it is securely locked in place.

  3. Install the Bottom and Top Panels

    Attach the bottom panel using the integrated hook and fasten it with (2) M10 x 16mm serrated hex head bolts and (2) M10 serrated hex head nuts. Repeat the process for the top panel using (2) M6 x 16mm serrated hex head bolts and (2) M6 serrated hex head nuts.

  4. Install the Waterfall

    Adjust the width of the waterfall to fit your rack by loosening the (4) Phillips head screws. Align the waterfall slots around the backbone part of the manager and fasten it using (4) M6 x 8mm screws.
