Panduit PNF14-6RN-3K - Ring Terminal, narrow tongue, nylon insulated, funnel entry, metal sleeve, 16 14 AWG, #6 stud size.
Panduit

PNF14-6RN-3K

UPC: 074983811526

Documents & Media
Technical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 3000

Multiplier: 3000

*Contact for lower quantities*

Overview

The Panduit PNF14-6RN-3K is a high-quality ring terminal designed for secure electrical connections. Manufactured by Panduit, this terminal features a narrow tongue configuration, facilitating easier installation in confined spaces. Its nylon insulation provides robust electrical protection and durability, while the funnel entry design ensures quick and reliable wire insertion, minimizing the risk of strand fraying during termination. The integrated metal sleeve reinforces the barrel, enhancing the terminal's mechanical strength and ensuring a consistent crimp. This model is specifically rated for wire gauges ranging from 16 to 14 AWG, making it suitable for a variety of electrical applications. The terminal is designed to accommodate a #6 stud size, ensuring compatibility with common electrical hardware. The PNF14-6RN-3K is proudly manufactured in the USA, adhering to stringent quality standards. Its UNSPSC code is 39121409. This ring terminal is an essential component for reliable electrical wiring in industrial and commercial settings where secure and durable connections are paramount. The combination of its construction, insulation, and design features makes it a dependable choice for professional electrical installations.
  • Nylon insulated for electrical protection
  • Narrow tongue design for tight spaces
  • Funnel entry for easy wire insertion
  • Metal sleeve for enhanced barrel strength
  • Suitable for 16-14 AWG wire and #6 stud size

Specifications

Color
Blue
Connection
Funnel Entry
Enclosure
Ring shape
Finish
Tinned
Insulation
Nylon
Material
Copper
Mounting
1/4 In.
Size
#6
Standard
UL Listed 587H E52164, CSA Certified LR31212
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
600 V
Wire Size
14 AWG
Package Dimensions (L x W x H)
26.1 IN x 25.4 IN x 2.4 IN
Package Weight (Imperial)
9.3 lbs
Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, standard package.

PNF14-6F-C

Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, standard package.
Locking Fork Terminal, nylon insulated, funnel entry, 18-14 AWG, #10 stud size, standard package.

PNF14-10LF-C

Locking Fork Terminal, nylon insulated, funnel entry, 18-14 AWG, #10 stud size, standard package.
The PV14-8F-C Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

PV14-8F-C

The PV14-8F-C Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

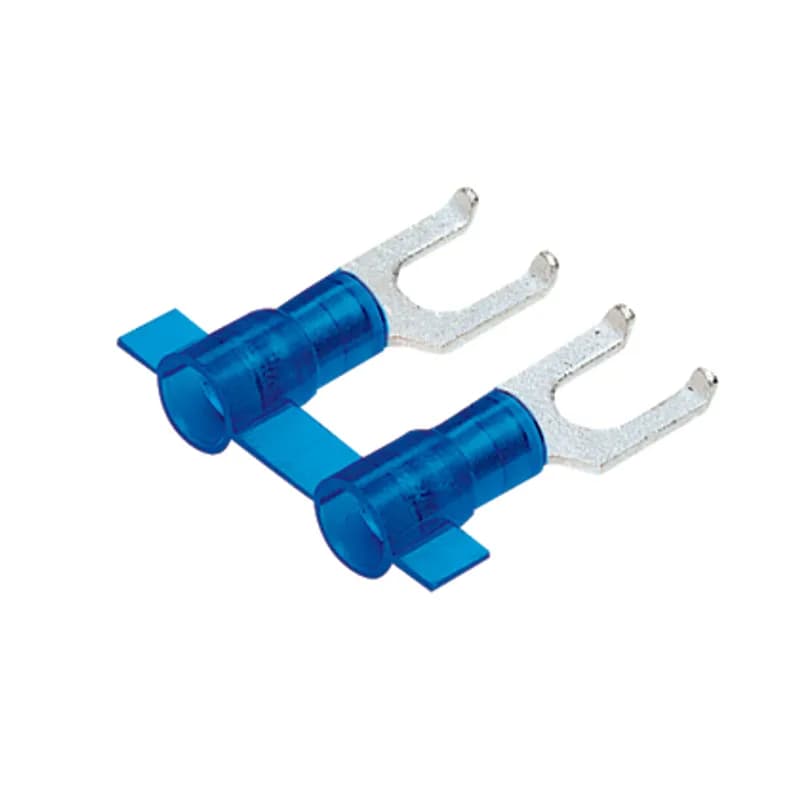

Flanged Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 16 - 14 AWG wire range, #8 stud size.

PNF14-8FF-3K

Flanged Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 16 - 14 AWG wire range, #8 stud size.
The PV14-10R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.

PV14-10R-M

The PV14-10R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
The PV14-8R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

PV14-8R-M

The PV14-8R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
The PV14-6R-C Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

PV14-6R-C

The PV14-6R-C Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Ring Terminal, 16 14 AWG, #4 stud size, vinyl insulated, expanded insulation for large wire O.D.

PV14-4RX-C

Ring Terminal, 16 14 AWG, #4 stud size, vinyl insulated, expanded insulation for large wire O.D.
Fork Terminal, vinyl insulated, 16- 14 AWG, #8 stud size, expanded insulation for large wire O.D., standard package.

PV14-8FX-C

Fork Terminal, vinyl insulated, 16- 14 AWG, #8 stud size, expanded insulation for large wire O.D., standard package.
Fork Terminal, vinyl insulated, 16- 14 AWG, #10 stud size, expanded insulation for large wire O.D.

PV14-10FX-C

Fork Terminal, vinyl insulated, 16- 14 AWG, #10 stud size, expanded insulation for large wire O.D.

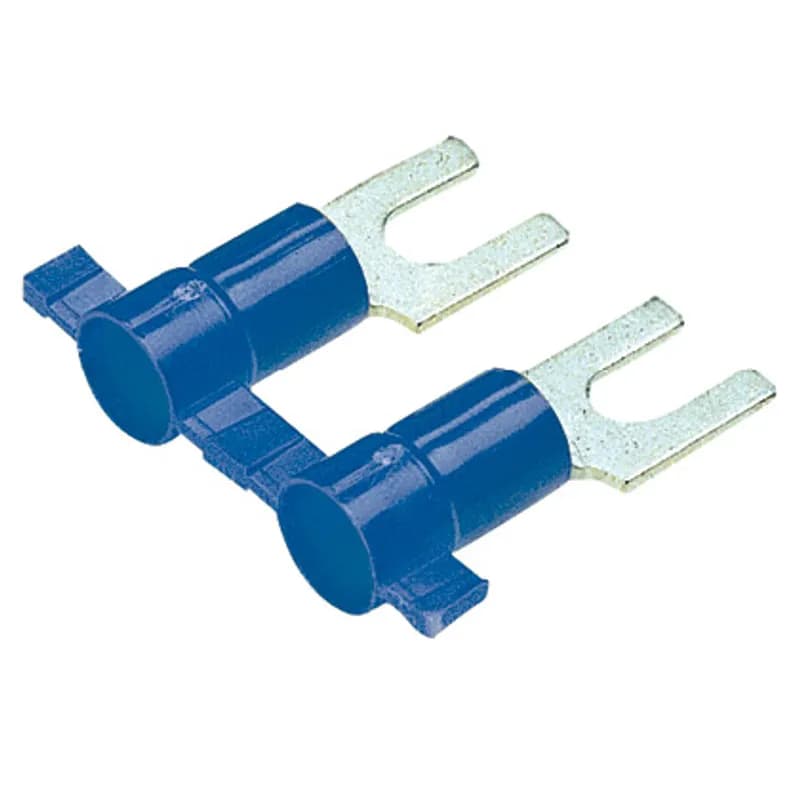

The PV14-8FB-3K Reel Smart Terminal is a continuously molded and vinyl fully insulated fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

PV14-8FB-3K

The PV14-8FB-3K Reel Smart Terminal is a continuously molded and vinyl fully insulated fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Fork Terminal, vinyl insulated, funnel entry, 16- 14 AWG, #6 stud size, narrow tongue, bulk package.

PV14-6FN-M

Fork Terminal, vinyl insulated, funnel entry, 16- 14 AWG, #6 stud size, narrow tongue, bulk package.
