Panduit PNF14-6F-C - Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, standard package.
Panduit

PNF14-6F-C

UPC: 074983513505

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit PNF14-6F-C is a nylon-insulated fork terminal designed for secure electrical connections in industrial and commercial applications. This terminal accommodates 16 to 14 AWG wires and is compatible with #6 studs, ensuring reliable terminations in control panels, machinery wiring, and electrical distribution systems. The funnel entry design simplifies wire insertion, reducing installation time and minimizing errors. Manufactured by Panduit, a trusted leader in electrical components, this fork terminal delivers consistent performance and durability. Its standard packaging provides a practical quantity for diverse project needs. Ideal for applications requiring dependable, long-lasting connections where downtime is not an option.
  • Nylon-insulated for electrical safety and durability
  • Funnel entry design for easier wire insertion
  • Accommodates 16 to 14 AWG wire sizes
  • Compatible with #6 studs for secure mounting
  • Standard package quantity for versatile use

Specifications

Color
Nylon
Color
Blue
Connection
Funnel Entry
Connection Type
Fork Terminal
Enclosure
Fork shape
Finish
Tinned
Insulation
Nylon
Material
Copper
Material
Nylon
Mounting
5/16 In.
Mounting Type
Stud Mount
Series
PNF
Size
#6
Size
16-14 AWG, #6 stud size
Size
16-14 AWG
Standard
CSA Certified LR31212;UL Listed 587H E52164
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
600 V
Wire Size
14 AWG
Package Dimensions (L x W x H)
9.4 IN x 1.95 IN x 3.75 IN
Package Weight (Imperial)
2.5 lbs
Locking Fork Terminal, nylon insulated, funnel entry, 18-14 AWG, #10 stud size, standard package.

PNF14-10LF-C

Locking Fork Terminal, nylon insulated, funnel entry, 18-14 AWG, #10 stud size, standard package.
Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, bulk package.

PNF14-6F-M

Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, bulk package.

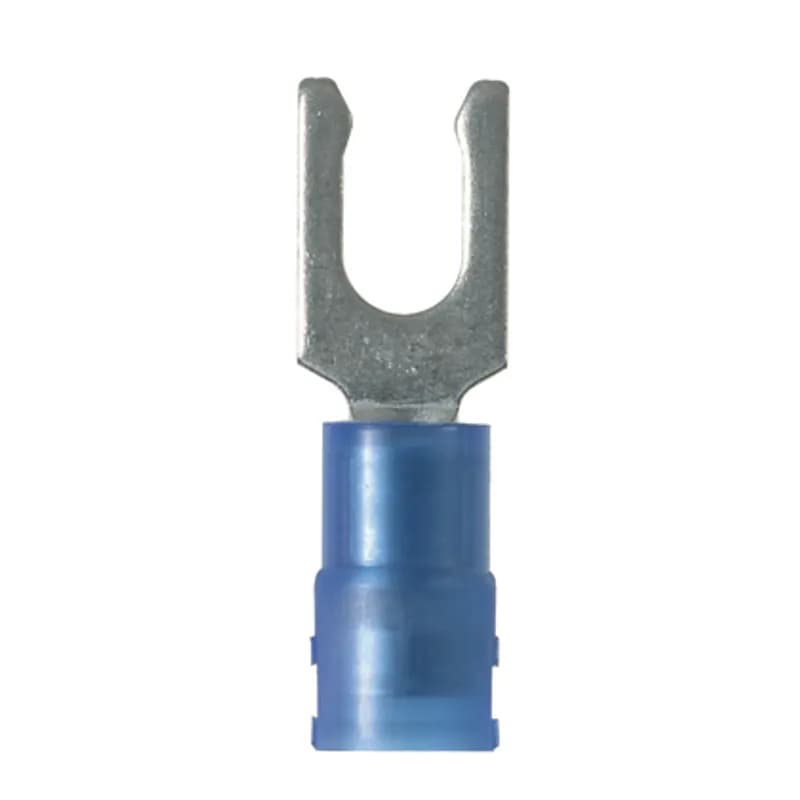

Locking Fork Terminal, nylon insulated, 16 - 14 AWG, #6 stud size, bulk package.

PN14-6LF-M

Locking Fork Terminal, nylon insulated, 16 - 14 AWG, #6 stud size, bulk package.
Locking Fork Terminal, nylon insulated, 18 - 14 AWG, #8 stud size, standard package.

PN14-8LF-C

Locking Fork Terminal, nylon insulated, 18 - 14 AWG, #8 stud size, standard package.
Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #8 stud size, expanded insulation for large wire O.D., bulk package.

PV14-8LFX-M

Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #8 stud size, expanded insulation for large wire O.D., bulk package.
Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #10 stud size, expanded insulation for large wire O.D., standard package.

PV14-10LFX-C

Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #10 stud size, expanded insulation for large wire O.D., standard package.
Locking Fork Terminal, nylon insulated, 18 - 14 AWG, #6 stud size, wide tongue.

PN14-6LFW-C

Locking Fork Terminal, nylon insulated, 18 - 14 AWG, #6 stud size, wide tongue.
Locking Fork Terminal, nylon insulated, 16 - 14 AWG, #10 stud size, bulk package.

PN14-10LF-M

Locking Fork Terminal, nylon insulated, 16 - 14 AWG, #10 stud size, bulk package.
Fork Terminal, nylon insulated, 16- 14 AWG, #6 stud size, bulk package.

PN14-6F-M

Fork Terminal, nylon insulated, 16- 14 AWG, #6 stud size, bulk package.

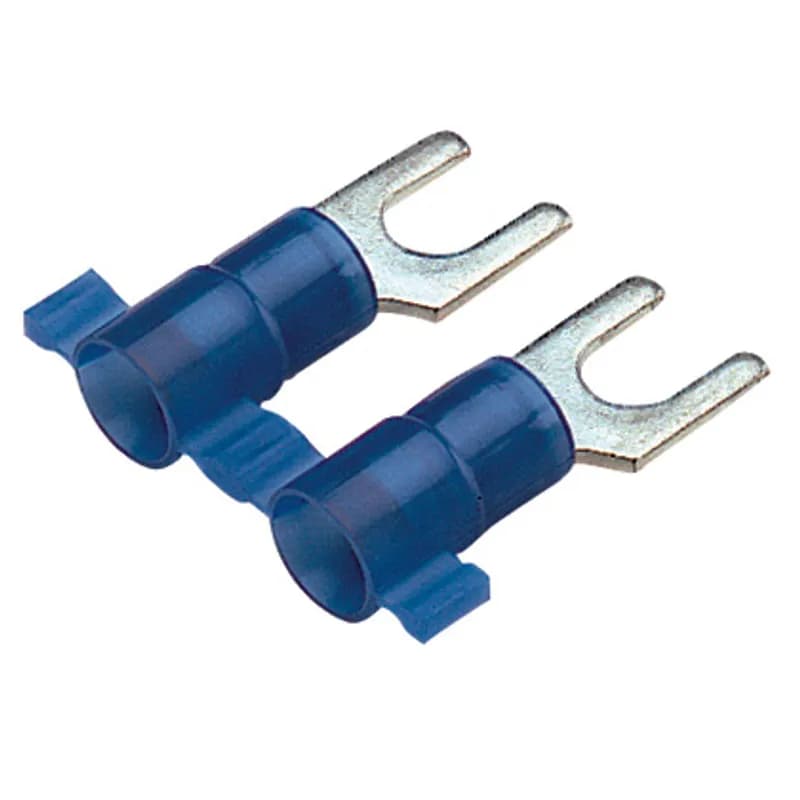

Fork Terminal, nylon insulated, metal insulation grip sleeve, 16 - 14 AWG wire range, #8 stud size.
