Panduit PFO6X04BL-CEG - The TX6A Cat 6A shielded copper cable is a F/UTP Outside Plant (OSP) cable. The cable has a gel-filled construction to prevent moisture migration in underground and wet applications and a wide temperature range for extreme weather environments. The copper conductors are twisted in pairs, separated by a pair separator, covered with an overall foil shield and a UV-resistant and abrasion-resistant polyethylene (PE) jacket. This product is to be used in duct and conduit installations only.
Panduit

PFO6X04BL-CEG

UPC: 613056319493

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Overview

Panduit TX6A Cat 6A shielded copper cable (SKU: PFO6X04BL-CEG) is a F/UTP Outside Plant (OSP) cable engineered for demanding underground and wet applications. This Cat 6A shielded cable features a gel-filled construction to prevent moisture migration, ensuring long-term reliability in extreme weather environments. The cable includes twisted copper pairs separated by a pair separator, an overall foil shield for superior electromagnetic interference (EMI) protection, and a UV-resistant, abrasion-resistant polyethylene (PE) jacket rated for duct and conduit installations only. Key specifications include 23 AWG solid copper conductors, a pair separator for optimal pair separation, and an overall foil shield to minimize alien crosstalk (AXT) and ensure signal integrity. The cable is ETL verified for Category 6A component compliance and supports 10GBASE-T applications up to 100 meters. The blue PE jacket provides visual identification and durability, while the gel-filled construction enhances moisture resistance in underground and wet environments. Designed for outdoor and harsh environments, this Panduit TX6A cable is ideal for data centers, premise networks, surveillance systems, and infrastructure monitoring where high-bandwidth performance and environmental resilience are critical. The cable meets ANSI/TIA 568.2-D and ISO/IEC 11801 standards, ensuring compatibility with existing and future network infrastructure. With a wide operating temperature range and robust construction, this cable delivers reliable performance in extreme conditions, making it a trusted choice for mission-critical applications.
  • Gel-filled construction prevents moisture migration in underground/wet applications
  • F/UTP shielded design minimizes alien crosstalk (AXT) and EMI interference
  • UV-resistant and abrasion-resistant polyethylene (PE) jacket for durability
  • ETL verified for Category 6A component compliance, supports 10GBASE-T up to 100m
  • Designed for duct and conduit installations only, meets ANSI/TIA 568.2-D standards

Specifications

Color
Black
Conductor Material
Copper
Construction
F/UTP
Insulation Material
High-Density Polyethylene
Jacket Material
High-Density Polyethylene
Number of Conductors
4
Outside Diameter
0.32 In.
Resistance
UV-Resistant
Standard
Exceeds ISO 11801 Class Ea and ANSI/TIA568-C.2 Category 6A standards ; Standards compliance: ISO 11801 Class Ea, IEC 61156-5 Category 6A, ANSI/TIA-568-C.2 Category 6A, IEC 60794-1-2F5 Method B Water Penetration Requirement Poe Compliance: Meets IEEE 802.3a
Temperature Rating
176 F
Type
Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
15.75 IN x 15.75 IN x 12.6 IN
Package Weight (Imperial)
84.67 lbs

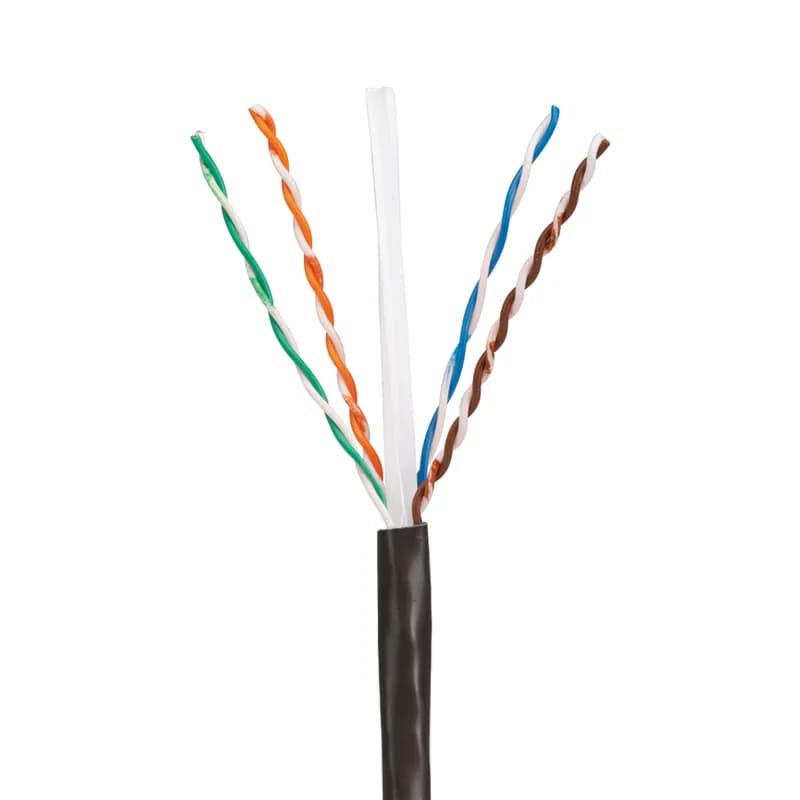

The TX6 U/UTP Outside Plant (OSP) Copper Cable is constructed of 23 AWG copper conductors with PE insulation. The cable has a gel-filled construction to prevent moisture migration in underground and wet applications. The conductors are twisted in pairs and covered by a UV-resistant and abrasion-resistant HDPE flame-retardant jacket. This cable is for duct and conduit installations only.

PUO6C04BL-CEG

The TX6 U/UTP Outside Plant (OSP) Copper Cable is constructed of 23 AWG copper conductors with PE insulation. The cable has a gel-filled construction to prevent moisture migration in underground and wet applications. The conductors are twisted in pairs and covered by a UV-resistant and abrasion-resistant HDPE flame-retardant jacket. This cable is for duct and conduit installations only.

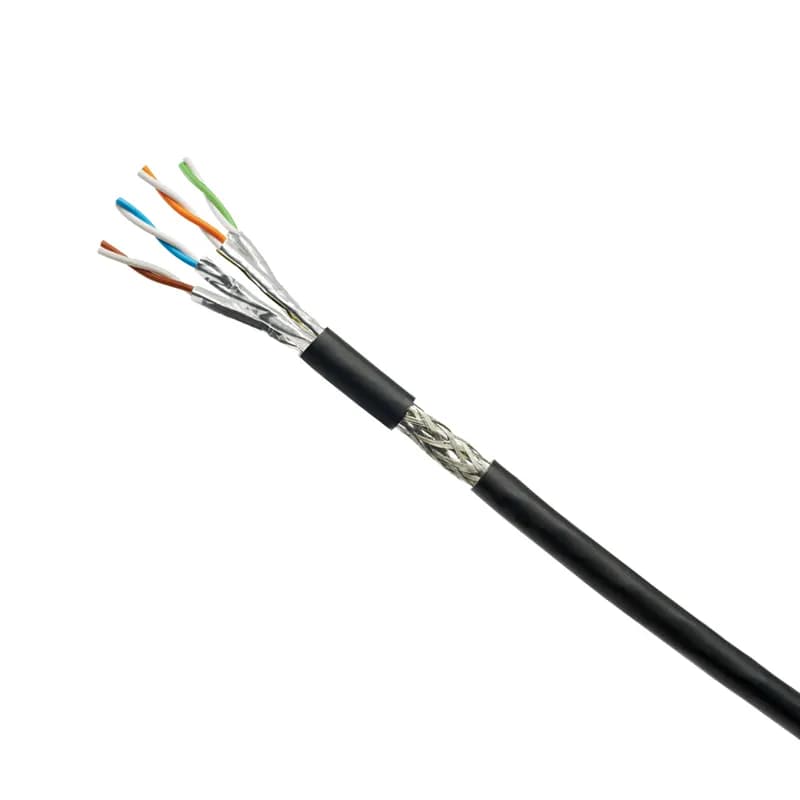

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel

PSMD7004BL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
Copper cable, category 6A UTP, low smoke zero halogen (LSZH -3), 4-pair, conductors are 23 AWG with flame-retardant HDPE insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending MaTriX tape and protected by a LSZH (IEC 60332-3) jacket, blue.

PUZ6A04BU-EG

Copper cable, category 6A UTP, low smoke zero halogen (LSZH -3), 4-pair, conductors are 23 AWG with flame-retardant HDPE insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending MaTriX tape and protected by a LSZH (IEC 60332-3) jacket, blue.
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 23 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, SHF1 compliant, HDPE jacket, Blue, DNV/GL and ABS certified, 3280ft/1000m reel

PSM7004BU-KEM

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 23 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, SHF1 compliant, HDPE jacket, Blue, DNV/GL and ABS certified, 3280ft/1000m reel
Category 6A Advanced MaTriX, 4-Pair, 23AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-3), White, Euro pallet, 1000ft/305m

PUZ6AM04WH-CEG

Category 6A Advanced MaTriX, 4-Pair, 23AWG copper cable, U/UTP, LSZH (Low Smoke Zero Halogen, IEC60332-3), White, Euro pallet, 1000ft/305m
The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.

PFL6X04BU-CEG

The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.
The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.

PFL6X04WH-CEG

The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel

PSMDA7004BL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
The Cat 5e UTP copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are covered with an industrially rated black PVC jacket which is oil and sunlight resistant and flame retardant. This cable is rated for panel or on-machine applications where space is shared with 600 V high voltage cables. The cable is supplied 305 meters (1,000 feet) to a reel and black.

IFRH5C04BL-UG

The Cat 5e UTP copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are covered with an industrially rated black PVC jacket which is oil and sunlight resistant and flame retardant. This cable is rated for panel or on-machine applications where space is shared with 600 V high voltage cables. The cable is supplied 305 meters (1,000 feet) to a reel and black.
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

PUR6004BU-W

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
The TX7000 Category 7 copper cable is a shielded S/FTP copper cable. The copper conductors are twisted in pairs, covered by a foil shield within an overall braided shield and a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass B2ca-s1a,d1,a1) cable is supplied 500 meters (1,640 feet) to a reel.

PSW7004WH-HED

The TX7000 Category 7 copper cable is a shielded S/FTP copper cable. The copper conductors are twisted in pairs, covered by a foil shield within an overall braided shield and a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass B2ca-s1a,d1,a1) cable is supplied 500 meters (1,640 feet) to a reel.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

PUL6AV04WH-EG

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

Frequently Asked Questions

What is the maximum operating voltage for this cable?

The maximum operating voltage for the cable is 80V.

Is the TX6A OSP cable compliant with PoE standards?

Yes, it meets IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt for various PoE applications.

What are the installation requirements for this cable?

This product is to be used in duct and conduit installations only. It is not to be used in aerial or direct bury applications.

What are the operating and installation temperature ranges?

The operating temperature range is -40ºF to 176ºF (-40ºC to 80ºC). During installation, the temperature range is 32ºF to 122ºF (0ºC to 50ºC).

What transmission speeds does this cable support?

It supports 10GBASE-T Ethernet, 1000BASE-T Gigabit Ethernet, and 10/100BASE-T Ethernet applications.

What standards does the TX6A OSP cable meet?

The cable meets ISO 11801 Class EA, IEC 61156-5 Category 6A, and ANSI/TIA-568.2-D Category 6A standards. It also meets IEC 60794-1-2F5 for water penetration.

What transmission speeds does this cable support?

It supports 10GBASE-T Ethernet, 1000BASE-T Gigabit Ethernet, and 10/100BASE-T Ethernet applications.

What is the maximum operating voltage for this cable?

The maximum operating voltage for the cable is 80V.

What standards does the TX6A OSP cable meet?

The cable meets ISO 11801 Class EA, IEC 61156-5 Category 6A, and ANSI/TIA-568.2-D Category 6A standards. It also meets IEC 60794-1-2F5 for water penetration.

Is the TX6A OSP cable compliant with PoE standards?

Yes, it meets IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt for various PoE applications.
