Panduit PD3S-EI - Electrical Interface Enabled PD3S Dispenser
Panduit

PD3S-EI

UPC: 074983636501

Contact for Pricing

Overview

The Panduit PD3S-EI (SKU: PD3S-EI) is an Electrical Interface Enabled Dispenser designed for efficient cable management and dispensing in industrial settings. This dispenser features a microprocessor-based controller that monitors system performance via a touchscreen display, providing production data and reporting, including error detection and cycle counts for enhanced reliability. The intuitive LCD display offers an online HELP menu in seven languages (English, Spanish, German, Italian, French, Czech, Japanese), simplifying training and operation. Constructed from industrial-grade materials, the PD3S-EI ensures durability in demanding environments. Its electrical interface capabilities are crucial for integrating with automated systems, improving workflow productivity, and reducing downtime in manufacturing, construction, and electrical installation applications. The PD3S-EI is part of Panduit's PD3S series, known for its robust design and reliable performance in critical infrastructure tasks.
  • Microprocessor-based controller with touchscreen display for system monitoring and reporting
  • Online HELP menu in seven languages for user-friendly operation and training
  • Electrical Interface Enabled for enhanced automation and control
  • Durable construction from industrial-grade materials for demanding environments
  • Supports efficient cable management and dispensing in industrial applications

Specifications

Color
Black
Standard
RoHS Compliant, CE Complaint
Type
Automatic Cable Tie Tool - Dispenser
Used with Installation Tool*
PAT3S
Package Dimensions (L x W x H)
21.5 IN x 21.5 IN x 12.9 IN
Package Weight (Imperial)
51 lbs
Metal frame supports the PDS dispenser above the cable tie reel as ties are loaded into dispenser; can be used as a free-standing unit or permanently mounted to a bench or cart. Dispenser frame includes a scrap bin collector, not shown in this photo, that attaches to any of the PDS dispensers (part numbers PDS, PDS-EI, PDS-EI-DI, PDS-DI).

PDSF

Metal frame supports the PDS dispenser above the cable tie reel as ties are loaded into dispenser; can be used as a free-standing unit or permanently mounted to a bench or cart. Dispenser frame includes a scrap bin collector, not shown in this photo, that attaches to any of the PDS dispensers (part numbers PDS, PDS-EI, PDS-EI-DI, PDS-DI).
Stationary dispenser with electronic display. Online help menu through LCD display; multi-language; alarm sounds if error occurs. The system operates on 65 psig. (minimum) non-lubricated, filtered air and 100-240 VAC/50 or 60 Hz automatically adjusts within this range. Bin collector shown in the photo, attached to the side of the dispenser, is sold separately as included with the dispenser frame, not shown (part number PDSF).

PDS

Stationary dispenser with electronic display. Online help menu through LCD display; multi-language; alarm sounds if error occurs. The system operates on 65 psig. (minimum) non-lubricated, filtered air and 100-240 VAC/50 or 60 Hz automatically adjusts within this range. Bin collector shown in the photo, attached to the side of the dispenser, is sold separately as included with the dispenser frame, not shown (part number PDSF).
Air Hose from Filter/Regulator to all Model PAT Dispensers. Includes Standard Air Fittings

PDH10-37

Air Hose from Filter/Regulator to all Model PAT Dispensers. Includes Standard Air Fittings
6.5' (2m) Transfer Hose transfers cable tie and signal from dispenser to tool head; electrical connectors designed for easy attachment provide a reliable, secure connection, Black.

PHS2

6.5' (2m) Transfer Hose transfers cable tie and signal from dispenser to tool head; electrical connectors designed for easy attachment provide a reliable, secure connection, Black.
Lightweight, ergonomic tool head

PAT3S

Lightweight, ergonomic tool head
Lightweight, ergonomic tool head

PAT2S

Lightweight, ergonomic tool head
3.3' (1m) Transfer Hose transfers cable tie and signal from dispenser to tool head; electrical connectors designed for easy attachment provide a reliable, secure connection.

PHM1

3.3' (1m) Transfer Hose transfers cable tie and signal from dispenser to tool head; electrical connectors designed for easy attachment provide a reliable, secure connection.
Stationary dispenser with electronic display. Online help menu through LCD display, multi-language, alarm sounds if error occurs. The system operates on 65 psig. (minimum) non-lubricated, filtered air and 100-240 VAC/50 or 60 Hz automatically adjusts within this range.

PD3S

Stationary dispenser with electronic display. Online help menu through LCD display, multi-language, alarm sounds if error occurs. The system operates on 65 psig. (minimum) non-lubricated, filtered air and 100-240 VAC/50 or 60 Hz automatically adjusts within this range.
Automatic Cable Tie Tool Head for BT1.5M-XMR Cable Ties, Plastic Ergonomic Housing.

PAT1.5M4.0-BT

Automatic Cable Tie Tool Head for BT1.5M-XMR Cable Ties, Plastic Ergonomic Housing.

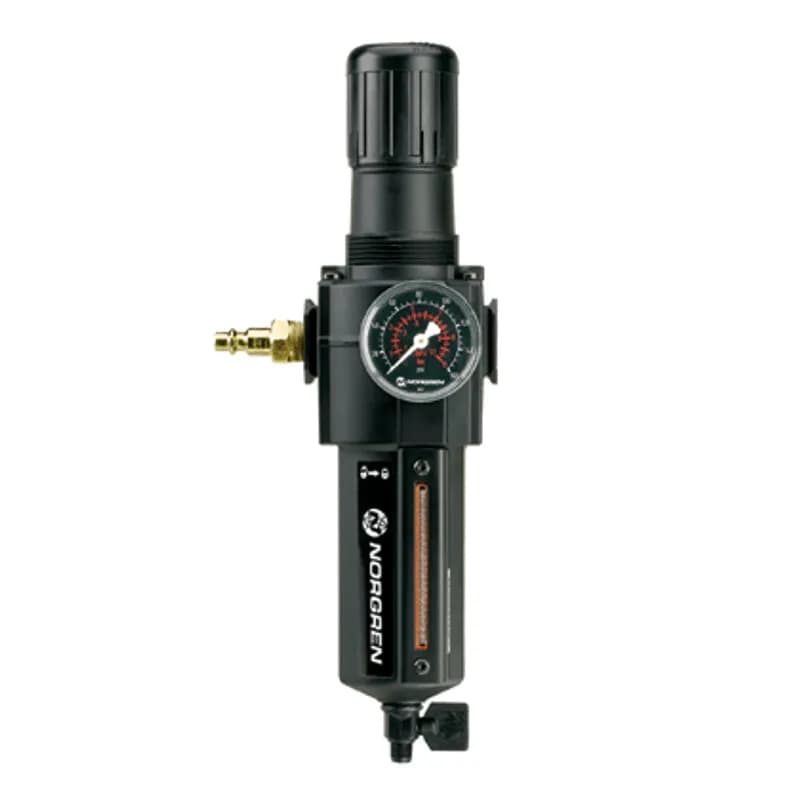

Regulates air flow to all model PAT dispensers. Filter/regulator 25 micron (max.) element, 3/8 ports. Includes a male connector and a 3/8 port.

PL283N1

Regulates air flow to all model PAT dispensers. Filter/regulator 25 micron (max.) element, 3/8 ports. Includes a male connector and a 3/8 port.

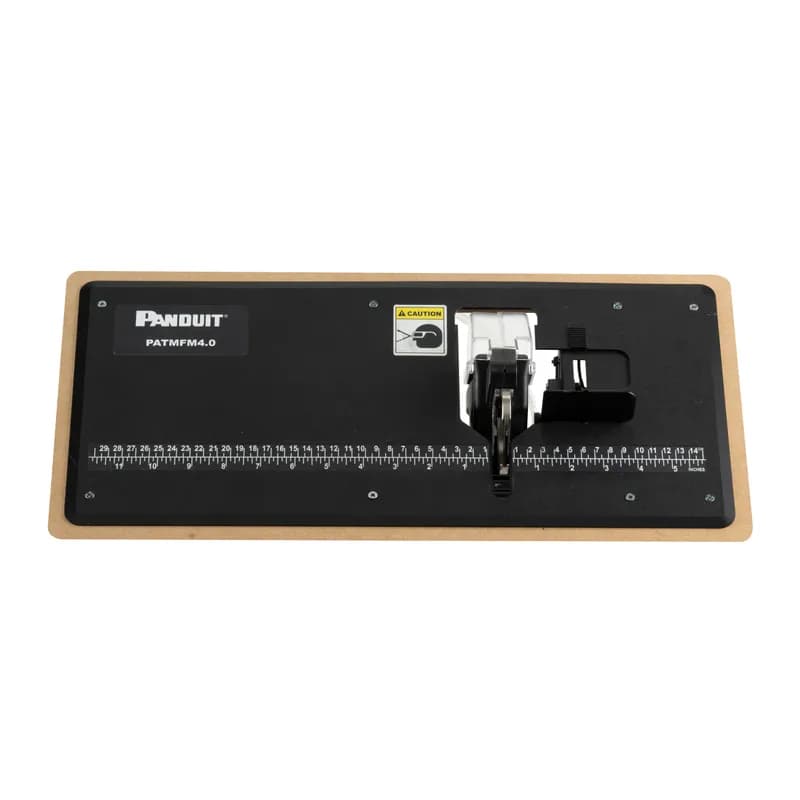

Panduit PATMFM4.0 flushmount fixture accessory for PAT4.0 eliminates the need to lift wire or cable bundle from work surface. It includes a hand actuated paddle that eliminates the traditional foot pedal common to bench mounts. It also includes an integral measuring device useful for applying cable ties for desired interval spacing.

PATMFM4.0

Panduit PATMFM4.0 flushmount fixture accessory for PAT4.0 eliminates the need to lift wire or cable bundle from work surface. It includes a hand actuated paddle that eliminates the traditional foot pedal common to bench mounts. It also includes an integral measuring device useful for applying cable ties for desired interval spacing.
10' (3m) Transfer Hose transfers cable tie and signal from dispenser to tool head; electrical connectors designed for easy attachment provide a reliable, secure connection.

PHS3

10' (3m) Transfer Hose transfers cable tie and signal from dispenser to tool head; electrical connectors designed for easy attachment provide a reliable, secure connection.
