Panduit PCSLSH-B-CR - The PCSLSH-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap and buckle strap cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with heavy or super-heavy cross section ties, custom length banding systems, or MS strapping, for use in harsh environments and applications. Features U-shaped channel, black LSHF TPE material, 26.8mm width, and 100-foot reels.
Panduit

PCSLSH-B-CR

UPC: 074983511310

Documents & Media
BrochureTechnical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Overview

The Panduit PCSLSH-B-CR Custom Length Cushion Sleeving is engineered to provide critical protection for cable insulation and conductors, particularly during short-circuit fault conditions. This durable sleeving is constructed from Low Smoke, Halogen-Free (LSHF) TPE material, offering enhanced safety in environments where fire retardancy and reduced smoke emission are paramount. Its U-shaped channel design, combined with a 26.8mm width, ensures a secure fit and effective mechanical protection for cables. Designed for harsh environments, the PCSLSH-B-CR is compatible with heavy or super-heavy cross-section ties, custom length banding systems, and MS strapping. This versatility makes it suitable for a wide range of demanding industrial applications, including those requiring robust cable management and protection against movement and abrasion. The material's excellent ultraviolet resistance and good resistance to petroleum and many chemicals further enhance its suitability for both indoor and outdoor use. Each reel provides 100 feet (30.5 meters) of custom-length sleeving, allowing for precise application and minimizing waste. The Panduit PCSLSH-B-CR is a key component for maintaining the integrity of electrical infrastructure, minimizing disruption, and safeguarding personnel and property from the damaging effects of short circuits. Its black color and LSHF TPE composition meet specific environmental and safety requirements often found in critical installations. This product is a best seller, underscoring its reliability and effectiveness in protecting vital cabling systems.
  • Provides mechanical protection for cable insulation and conductors during short-circuit faults.
  • Constructed from Low Smoke, Halogen-Free (LSHF) TPE material for enhanced safety.
  • Compatible with heavy/super-heavy cross-section ties, custom banding, and MS strapping.
  • U-shaped channel design with 26.8mm width for secure cable management.
  • Suitable for harsh environments, offering UV resistance and good chemical/petroleum resistance.

Specifications

Application
General
Family Color
Black
Length
1200 in
Length
30480 mm
Material Quality
TPE
Special Features
Indoor/Outdoor
Type
Cable Cleat Cushion Sleeve
Width
1.05 in
Width
26.67 mm
Package Dimensions (L x W x H)
30.8 IN x 30.3 IN x 2.3 IN
Package Weight (Imperial)
6.94 lbs
The PCSSH-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap and buckle strap cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with super-heavy cross section ties, custom length banding systems, or MS strapping, for use in harsh environments and applications. Features U-shaped channel, black neoprene material, 23.1mm width, and 100-foot reels.

PCSSH-B-CR

The PCSSH-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap and buckle strap cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with super-heavy cross section ties, custom length banding systems, or MS strapping, for use in harsh environments and applications. Features U-shaped channel, black neoprene material, 23.1mm width, and 100-foot reels.
The PCSH-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap and buckle strap cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with light and heavy cross section ties or custom length banding systems, for use in harsh environments and applications. Features include C-shaped channel, black-colored neoprene material, 11.9mm width, and 100-foot reels.

PCSH-B-CR

The PCSH-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap and buckle strap cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with light and heavy cross section ties or custom length banding systems, for use in harsh environments and applications. Features include C-shaped channel, black-colored neoprene material, 11.9mm width, and 100-foot reels.
The CSB42-330-430-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 130mm max bundle diameter capacity, and 25 PCS packages.

CSB42-330-430-Q

The CSB42-330-430-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 130mm max bundle diameter capacity, and 25 PCS packages.
The CSB42-150-230-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 70mm max bundle diameter capacity, and 25 PCS packages.

CSB42-150-230-Q

The CSB42-150-230-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 70mm max bundle diameter capacity, and 25 PCS packages.
The CSB42-230-330-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 100mm max bundle diameter capacity, and 25 PCS packages.

CSB42-230-330-Q

The CSB42-230-330-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 100mm max bundle diameter capacity, and 25 PCS packages.

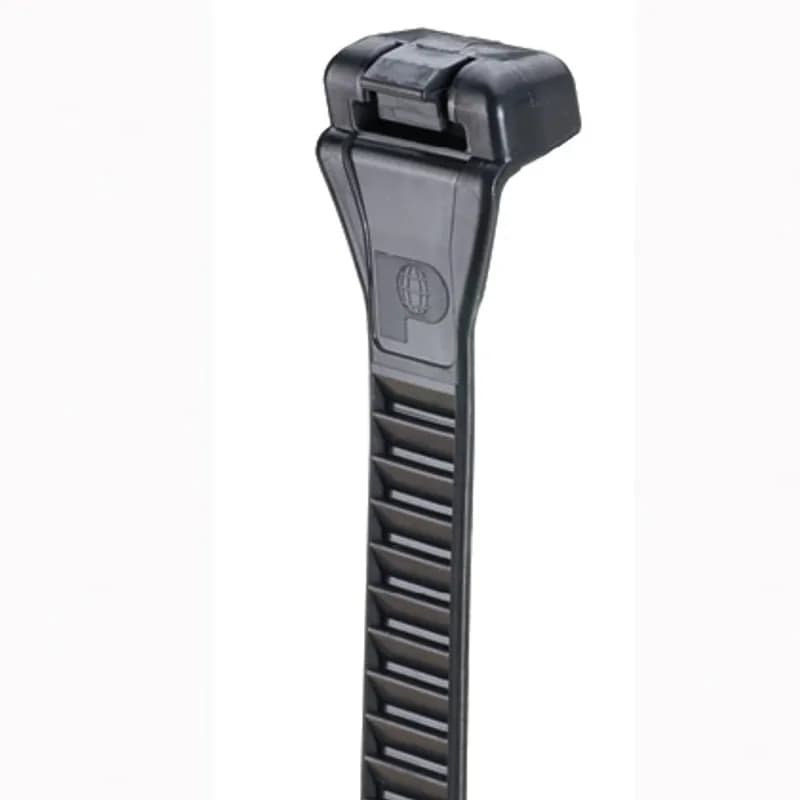

Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 16.0L (406mm), Tensile Strength: 80, Bundles up to 4.5 (114mm), Black, 100pc.

ERT4.5M-C20

Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 16.0L (406mm), Tensile Strength: 80, Bundles up to 4.5 (114mm), Black, 100pc.
Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 8.5L (216mm), Tensile Strength: 80, Bundles up to 2.4 (60mm), Black, 100pc.

ERT2M-C20

Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 8.5L (216mm), Tensile Strength: 80, Bundles up to 2.4 (60mm), Black, 100pc.

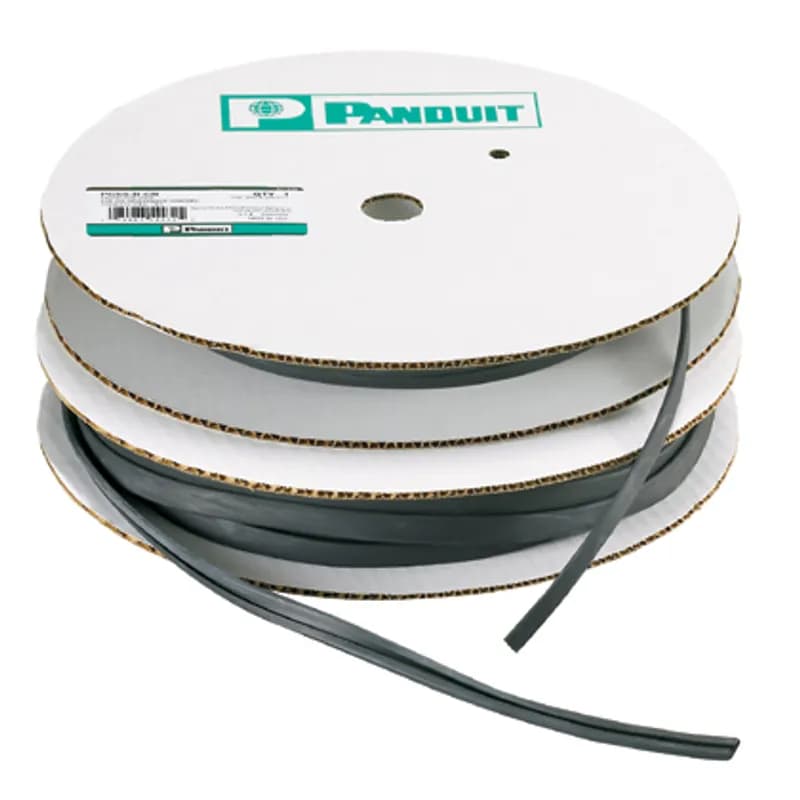

The PCSS-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with standard cross section ties for use in harsh environments and applications. Features C-shaped channel, black neoprene material, 8.4mm (.33 ) width, and 30.5m (100 ) reels.

PCSS-B-CR

The PCSS-B-CR Custom Length Cushion Sleeving is designed for use with metal locking strap cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. The cushion sleeving is compatible with standard cross section ties for use in harsh environments and applications. Features C-shaped channel, black neoprene material, 8.4mm (.33 ) width, and 30.5m (100 ) reels.
Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high UV environments up to 239 degrees. Center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.

SSPM4HLP-TL300

Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high UV environments up to 239 degrees. Center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.
Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. Center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.

SSPM4HP-TL300

Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. Center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.
Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. No center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 50pc.

SSPM4H-L300

Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. No center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 50pc.
Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. No center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.

SSPM4H-TL300

Sta-Strap Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. No center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.

Frequently Asked Questions

What is the material and length of PCSLSH-B-CR cushion sleeves?

The PCSLSH-B-CR cushion sleeve is made of TPE Low Smoke, Halogen Free material and comes in 100 ft. (30.5m) rolls.

What is the material and length of PCSLSH-B-CR cushion sleeves?

The PCSLSH-B-CR cushion sleeve is made of TPE Low Smoke, Halogen Free material and comes in 100 ft. (30.5m) rolls.

What is the material and length of PCSLSH-B-CR cushion sleeves?

The PCSLSH-B-CR cushion sleeve is made of TPE Low Smoke, Halogen Free material and comes in 100 ft. (30.5m) rolls.

What are Stainless Steel Trefoil Cable Cleats made of?

Stainless Steel Trefoil Cable Cleats are made of 316L stainless steel and are suitable for trefoil cable arrangements.

What materials and types of cable cleats does Panduit offer?

Panduit offers cable cleats in Stainless Steel, Aluminum, and Polymer, including Trefoil, Buckle Strap, Locking Strap, Two-Hole, and One-Hole designs.

What cable types are compatible with Stainless Steel Buckle Strap Cleats?

Stainless Steel Buckle Strap Cable Cleats are compatible with quad, trefoil, and multicore cables. They are made of 316L stainless steel.

How are Stainless Steel Trefoil Cleats installed?

They can be installed after running cables with a mounting bracket, or before running cables directly to the cable tray rung using an M8 bolt.

What tools are used to install Stainless Steel Buckle Strap Cleats?

These cleats are installed using a manually-operated, ratchet-style installation tool or a tension screwdriver. Cushion sleeves can be used for added cable protection.

When can Panduit mounting brackets be used for installation?

Panduit mounting brackets allow cable cleats to be installed after the cable has already been pulled and run in the tray.

Which cleats are compatible with CBH and UC series mounting brackets?

CBH series brackets are compatible with CCSSTR stainless steel trefoil and CCALTR aluminum trefoil cleats. UC series brackets work with MLT locking strap and MS75 buckle strap cleats.
