Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview
- Tool-free installation with no adhesives or additional hardware required
- Maximum panel thickness: 0.13" (3.2mm); hole size: 0.25" (6.4mm)
- Compatible with miniature, intermediate, and standard cable ties
- Made from heat-stabilized Nylon 6.6 for durability in indoor environments
- Packaged in quantities of 1000 for bulk installations
Specifications
Application | Indoor;Push Button Mounts for Use where Both Sides of the Panel are Accessible |
Cable Size | NA |
Cable Type | Cable Tie Mount |
Color | Black |
Insulation | Polyamide (PA) |
Material | Heat Stabilized Nylon 6.6 |
Material Quality | Nylon 6.6 |
Mount Size | 0.25 IN |
Mounting | Push Barb |
Mounting Type | Panel mount (requires hole) |
Operating Temperature, Maximum | 239 F |
Operating Temperature, Maximum | 115 C |
Operating Temperature, Minimum | 239 F |
Operating Temperature, Minimum | 115 C |
Screw Holes | NA |
Size | Panel hole: 0.25" (6.4mm), Max panel thickness: 0.13" (3.2mm) |
Standard | CE Compliant, UL Recognized: E136577, RoHS Compliant |
Type | Cable Tie Mount |
Used With Cable Ties* | M, I, S |
Package Dimensions (L x W x H) | 10.4 IN x 10.3 IN x 4.5 IN |
Package Weight (Imperial) | 3.8 lbs |
CMSB24-2S-C300
The CMSB24-2S-C300 Edge Clip with Cable Tie Mounts helps secure wire and cable bundles with versatile mounting to edges without adhesives or drilling. Pre-assembled with a cable tie for securing and routing cables perpendicular and adjacent to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.
TCM1X63-D350
The Panduit TCM1X63-D350 is designed to mount to a customer-supplied frame or bracket with an open pocket sized 0.94" x 0.60" (23.8mm x 15.3mm). This mount is designed to pair with a cable tie for final securing around a wire bundle. It is especially designed for securing battery power cables 2 AWG (35mm ) to 2/0 (70mm ). Black in color, this is made of a heat stabilized, UV resistant nylon and comes in packages of 500 pieces.

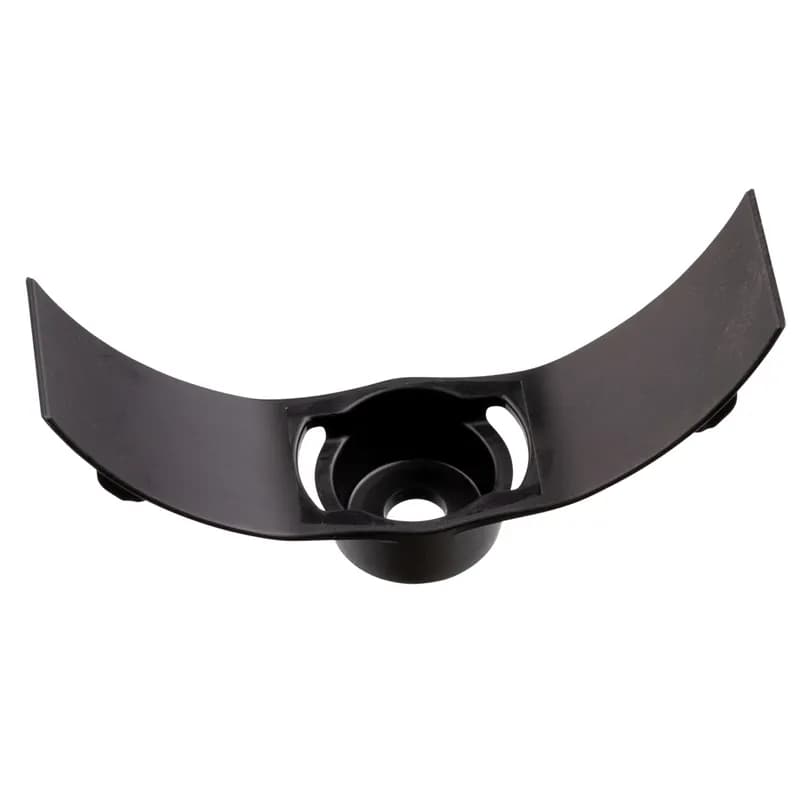

TMWCS6-C350
The Panduit TMWCS6-C350 is designed to mount to a frame or chassis with a M6 (metric) or 1/4 (imperial) screw. After it is mounted, it is ready to pair with a cable tie for final securing around a wire bundle, loom or hose. Black in color, this is made of a heat stabilized, UV resistant nylon and comes in packages of 100 pieces.
TMEH4S8-D350
Panduit TMEH4S8-D350 Heavy Duty Torque Mounts feature a retention tab within the mount bolt hole that creates interference to hold the bolt in different positions without any external assistance. They are made of Impact Modified Heat Stabilized Weather Resistant Nylon 6.6 with a Zinc Plated Steel Insert. Require a 5/16" (8mm) size bolt and can be used with miniature through wide strap extra heavy cable ties. For outdoor or indoor use, are black in color and come in packages of 500.
TMSTEHS8-D350
Twist-On Stud Mount, .3125" (8mm) Stud Dia., Impact Modified, Heat Stabilized, Weather Resistant Nylon, BL
TMEH3S10-D350
Panduit TMEH3S10-D350 Medium Duty Torque Mounts feature a retention tab within the mount bolt hole that creates interference to hold the bolt in different positions without any external assistance. They are made of Impact Modified Heat Stabilized Weather Resistant Nylon 6.6 and are ideal for heavy duty applications. Require a 3/8" (10mm) size bolt and can be used with miniature through wide strap extra heavy cable ties. For outdoor or indoor use, are black in color and come in packages of 500.
PM2H25-M30
The push barb cable tie mount requires a 0.25" (6.4 mm) hole and is black. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.
TMSTEHS19-D350
Twist-On Stud Mount, .75" (19mm) Stud Dia., Impact Modified, Heat Stabilized, Weather Resistant Nylon, BL
TCM1X63-2S-D350
The Panduit TCM1X63-2S-D350 is designed to mount to a customer-supplied frame or bracket with an open pocket sized 0.94" x 0.60" (23.8mm x 15.3mm). This mount includes a Panduit PLT2S tie with minimum loop tensile strength of 50 lbs (222 N). It is especially designed for securing battery power cables 2 AWG (35mm ) to 2/0 (70mm ). Black in color, this is made of a heat stabilized, UV resistant nylon and comes in packages of 500 pieces.
TMSTEHS6-D350
Twist-On Stud Mount, .25" (6mm) Stud Dia., Impact Modified, Heat Stabilized, Weather Resistant Nylon 6.6, BL
TMSTEHS11-D350
Twist-On Stud Mount, .4375" (11mm) Stud Dia., Impact Modified, Heat Stabilized, Weather Resistant Nylon, BL

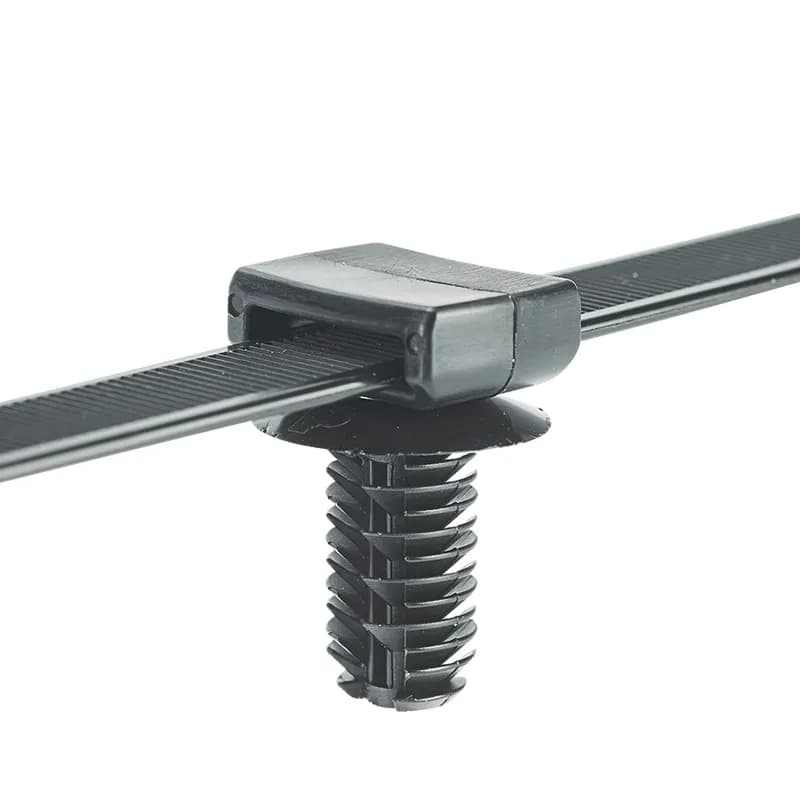

PUME925-3E-C350
Heavy Duty Fir Tree Push Mount with 12" Wide Strap Cable Tie Assembly, hole size 0.354", Heat Stabilized, Impact Modified, Weather Resistant Nylon 6.6.Frequently Asked Questions about Panduit
