Panduit P8-8RHT6-Q - High Temperature Ring Terminal, 8 AWG, #8 stud size, non-insulated.
Panduit

P8-8RHT6-Q

UPC: 074983189700

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The Panduit P8-8RHT6-Q is a non-insulated high-temperature ring terminal designed for 8 AWG wire and a #8 stud size. Constructed from nickel-plated copper, this terminal is engineered to withstand operating temperatures up to 650°F (343°C), making it ideal for demanding industrial applications where extreme heat resistance is critical. Its ring tongue design assures a secure connection, even in environments with high vibration. The internal barrel serrations promote excellent wire contact and maximum tensile strength, while the brazed seam prevents the barrel from splitting during the crimping process. For simplified installation, the barrel is internally beveled to facilitate quick and easy wire insertion. This terminal is UL and CSA rated up to 2000V. Each package contains 25 units. Applications include industrial machinery, HVAC systems, and automotive environments requiring reliable electrical connections in extreme heat. SKU: P8-8RHT6-Q. Country of Origin: US.
  • Nickel-plated copper construction for temperatures up to 650°F (343°C)
  • Ring tongue design assures secure connection in high-vibration applications
  • Internal barrel serrations for good wire contact and maximum tensile strength
  • Brazed seam protects terminal barrel from splitting during crimp
  • Internally beveled barrel for quick and easy wire insertion

Specifications

Connection Type
Ring Terminal
Finish
Nickel Plated
Finish
Nickel-plated
Insulation
None
Material
Nickel-plated Copper
Mounting
13/32 In.
Mounting
0.41 In.
Size
#8
Size
8 AWG, #8 stud size
Type
Ring Terminal
Voltage Rating
2000 V
Wire Size
8 Awg
Package Dimensions (L x W x H)
9.3 IN x 3.8 IN x 3.4 IN
Package Weight (Imperial)
2.05 lbs
High Temperature Ring Terminal, 8 AWG, #8 stud size, non-insulated, narrow tongue.

P8-8RNHT6-Q

High Temperature Ring Terminal, 8 AWG, #8 stud size, non-insulated, narrow tongue.

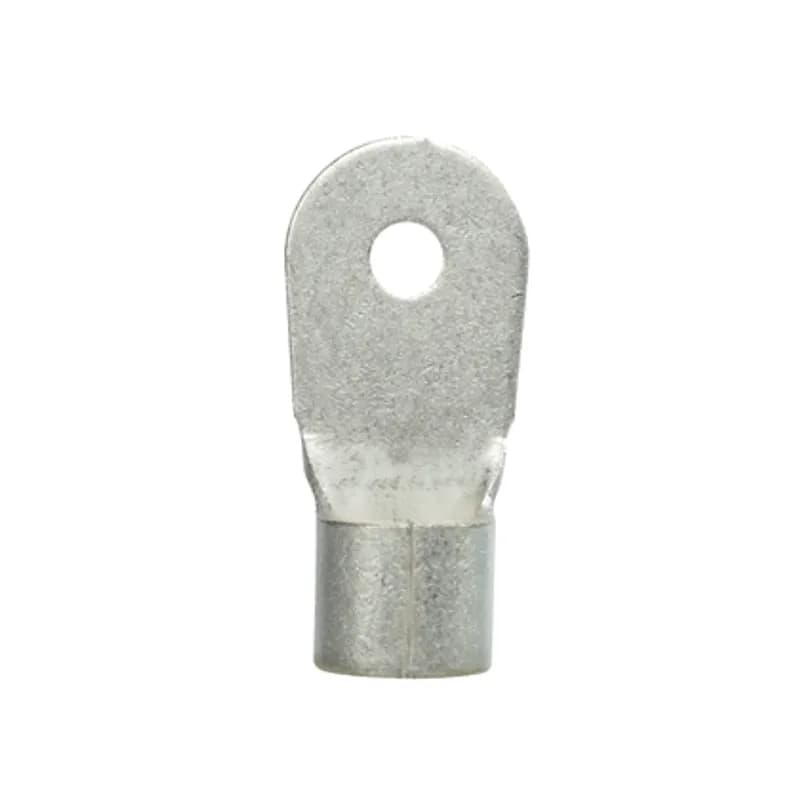

High Temperature Ring Terminal, 8 AWG, 1/4" stud size, non-insulated.

P8-14RHT6-Q

High Temperature Ring Terminal, 8 AWG, 1/4" stud size, non-insulated.
High Temperature Ring Terminal, 8 AWG, #10 stud size, non-insulated, narrow tongue.

P8-10RNHT6-Q

High Temperature Ring Terminal, 8 AWG, #10 stud size, non-insulated, narrow tongue.
High Temperature Ring Terminal, 8 AWG, #10 stud size, non-insulated, standard package.

P8-10RHT6-Q

High Temperature Ring Terminal, 8 AWG, #10 stud size, non-insulated, standard package.
High Temperature Ring Terminal, 8 AWG, 5/16" stud size, non-insulated.

P8-56RHT6-Q

High Temperature Ring Terminal, 8 AWG, 5/16" stud size, non-insulated.
Ring terminal, large wire, 8 AWG, #10 stud size, non-insulated, standard package.

P8-10R-Q

Ring terminal, large wire, 8 AWG, #10 stud size, non-insulated, standard package.
Ring terminal, large wire, 8 AWG, 3/8" stud size, non-insulated, bulk package.

P8-38R-T

Ring terminal, large wire, 8 AWG, 3/8" stud size, non-insulated, bulk package.
Ring terminal, large wire, 8 AWG, #8 stud size, non-insulated, standard package.

P8-8R-Q

Ring terminal, large wire, 8 AWG, #8 stud size, non-insulated, standard package.

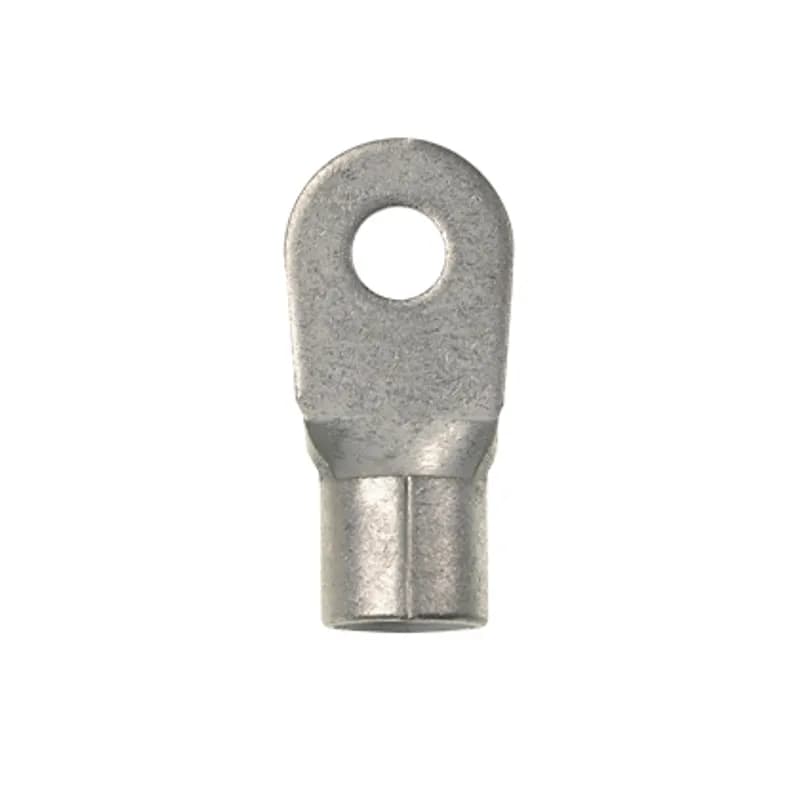

Ring terminal, large wire, 8 AWG, #8 stud size, non-insulated, bulk package.
